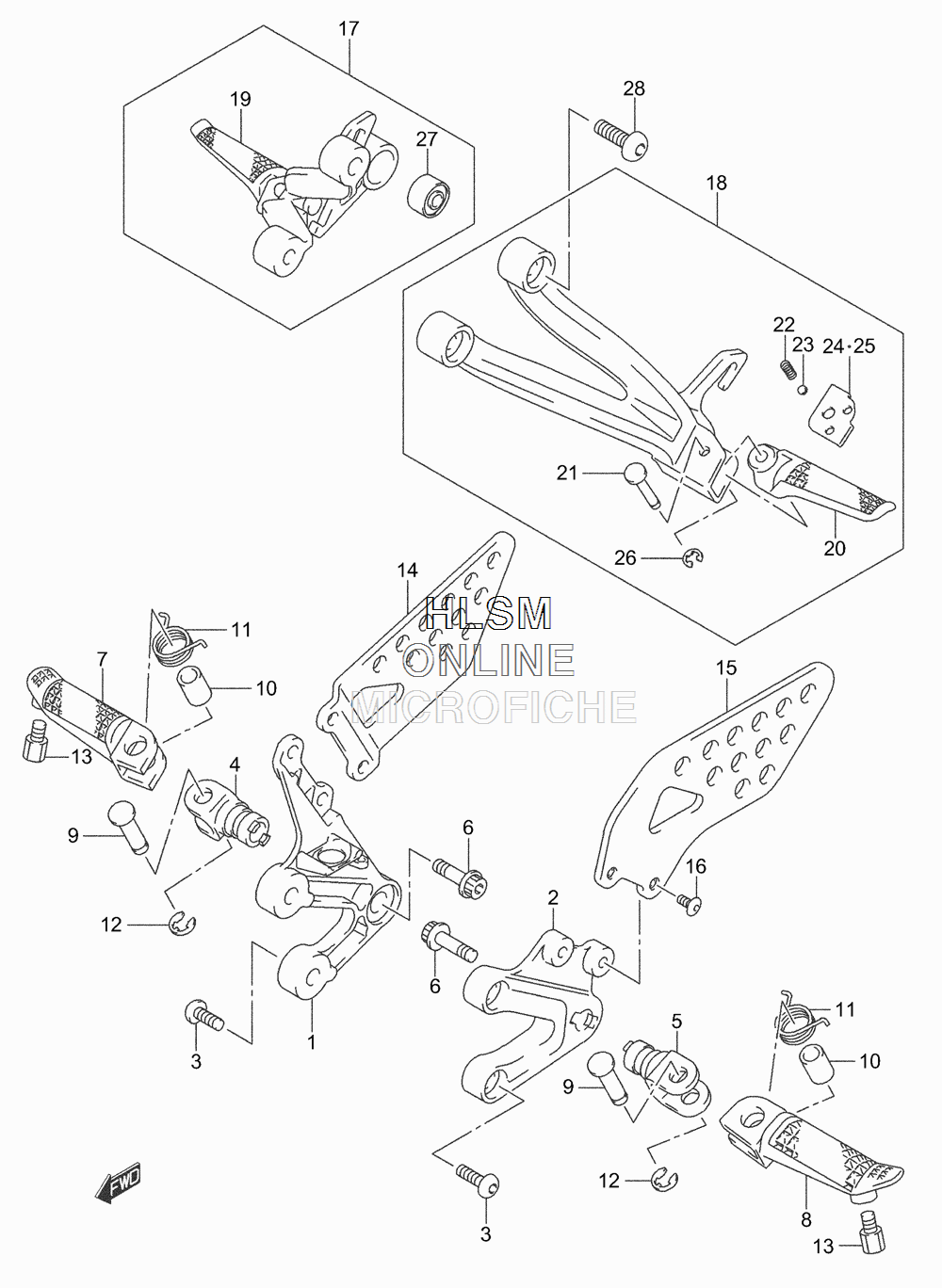

FOOTREST для Suzuki GSX-R1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
143511-18G00 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243521-18G00 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
309106-08150 BOLT, BRACKETBOLT, BRACKET
-
443530-35F10 HOLDER, FOOTREST RIGHT HANDHOLDER, FOOTREST RIGHT HAND
-
543540-35F10 HOLDER, FOOTREST LEFT HANDHOLDER, FOOTREST LEFT HAND
-
609106-10064 BOLT, HOLDERBOLT, HOLDER
-
743516-35F00 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
843526-35F00 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
909208-08014 PINPIN
-
1009180-08149 SPACERSPACER
-
1109448-18022 SPRINGSPRING
-
1208332-11063 E RINGE RING
-
1343576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1443571-18G00 GUARD, FOOTREST RIGHT HANDGUARD, FOOTREST RIGHT HAND
-
1543576-18G00 GUARD, FOOTREST LEFT HANDGUARD, FOOTREST LEFT HAND
-
1609139-05067 SCREW, GUARD LEFT HANDSCREW, GUARD LEFT HAND
-
1743600-18G00 FOOTREST ASSY, PILLION RIGHT HAND (INCL. 19-27)FOOTREST ASSY, PILLION RIGHT HAND (INCL. 19-27)
-
1843700-18G00 FOOTREST ASSY, PILLION LEFT HAND (INCL. 19-27)FOOTREST ASSY, PILLION LEFT HAND (INCL. 19-27)
-
1943611-35F01 BAR, PILLION RIGHT HANDBAR, PILLION RIGHT HAND
-
2043621-35F01 BAR, PILLION LEFT HANDBAR, PILLION LEFT HAND
-
2187259-85510 PINPIN
-
2209440-05005 SPRINGSPRING
-
2306111-07004 BALLBALL
-
2443816-33E21 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
2543826-33E22 PLATE, LEFT HANDPLATE, LEFT HAND
-
2608332-11043 E RINGE RING
-
2709319-08028 BUSH, MUFFLER SUPPORTBUSH, MUFFLER SUPPORT
-
2809106-08150 BOLT, BRACKETBOLT, BRACKET
