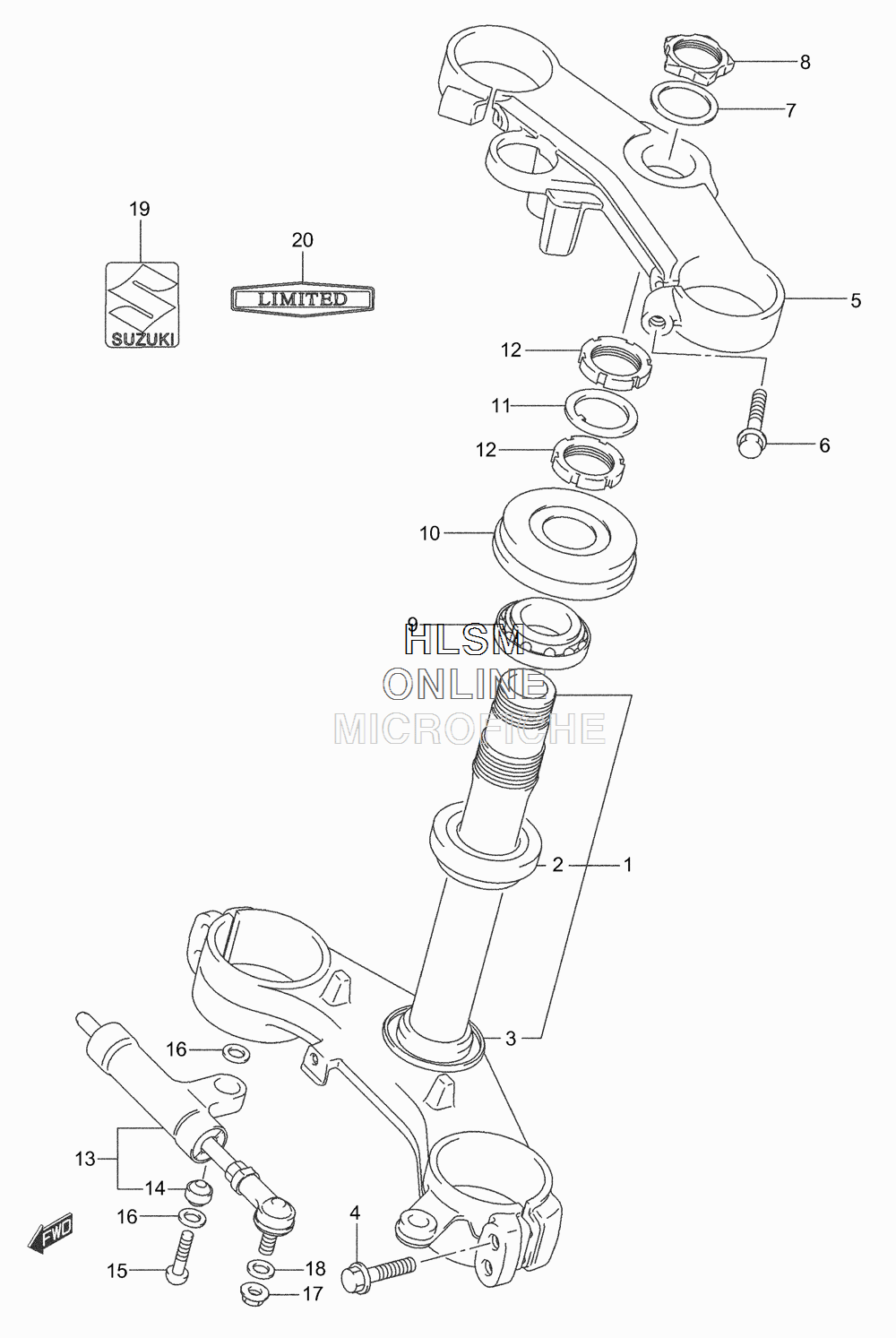

STEERING STEM для Suzuki GSX-R1000 K3 - 2003 года выпуска
-
№АртикулНазвание
-
151410-40F10 STEM, STEERING (INCL. 2-3)STEM, STEERING (INCL. 2-3)
-
209267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
351644-12C00 SEAL, STEM LOWERSEAL, STEM LOWER
-
451328-40F30 BOLTBOLT
-
551311-40F10 HEAD, STEERING STEMHEAD, STEERING STEM
-
651328-40F30 BOLTBOLT
-
751356-40F30 WASHERWASHER
-
851353-40F30 NUTNUT
-
909267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
1051643-33E00 SEAL, STEM UPPER DUSTSEAL, STEM UPPER DUST
-
1151641-33E00 WASHER, STEMWASHER, STEM
-
1251631-33E00 NUT, STEMNUT, STEM
-
1351750-40F20 DAMPER ASSY, STEERING (INCL. 14)DAMPER ASSY, STEERING (INCL. 14)
-
1409269-08003 BEARING (8X17.5X11)BEARING (8X17.5X11)
-
1509106-08130 BOLTBOLT
-
1664339-14101 SEAL, DUSTSEAL, DUST
-
1708319-31087 NUTNUT
-
1809160-08059 WASHER, STRG DAMPERWASHER, STRG DAMPER
-
1968281-35F00 EMBLEM, ''S''EMBLEM, ''S''
