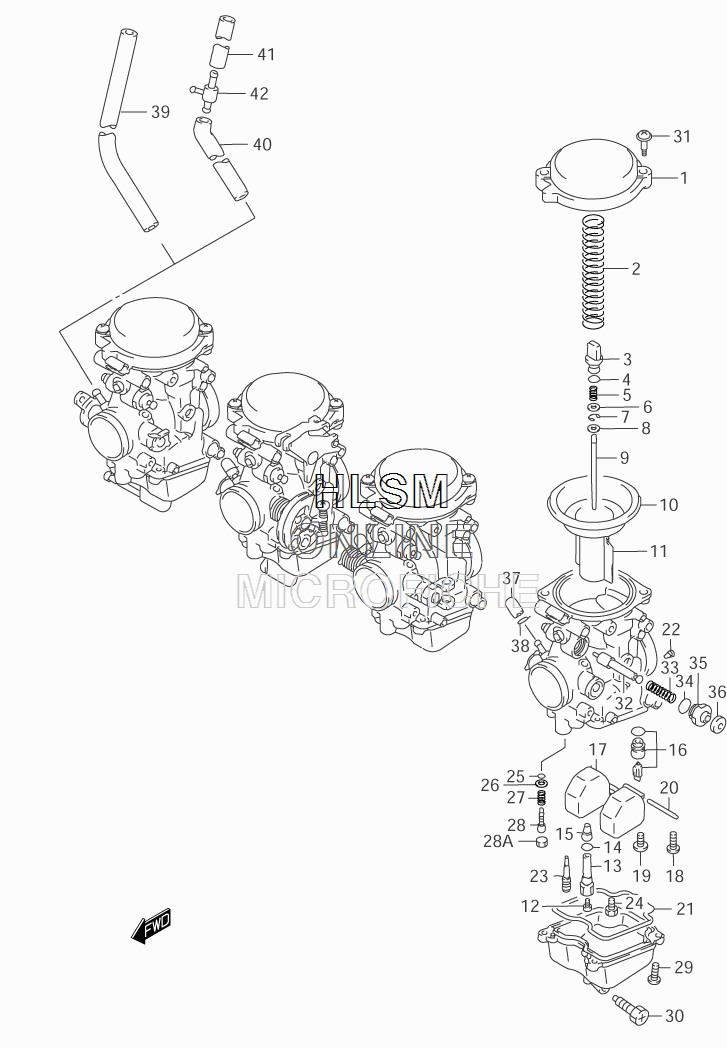

CARBURETOR ASSY.. для Suzuki GSX600F K3 - 2003 года выпуска

№

Артикул

Название
1A

13201-19E31 CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.)

CARBURETOR ASSY. (LEFT) (EXCEPT CALIF.)

0 ₽
1A

13201-19E41 CARBURETOR ASSY. (LEFT) (CALIFORNIA ONLY)

CARBURETOR ASSY. (LEFT) (CALIFORNIA ONLY)

0 ₽
1B

13202-19E31 CARBURETOR ASSY. (MIDDLE) (LEFT) (EXCEPT CALIF.)

CARBURETOR ASSY. (MIDDLE) (LEFT) (EXCEPT CALIF.)

130 ₽
1B

13202-19E41 CARBURETOR ASSY. (MIDDLE LEFT) (CALIFORNIA ONLY)

CARBURETOR ASSY. (MIDDLE LEFT) (CALIFORNIA ONLY)

0 ₽
1C

13203-19E31 CARBURETOR ASSY. (MIDDLE) (RIGHT) (EXCEPT CALIF.)

CARBURETOR ASSY. (MIDDLE) (RIGHT) (EXCEPT CALIF.)

130 ₽
1C

13203-19E41 CARBURETOR ASSY. (MIDDLE) (RIGHT) (CALIFORNIA ONLY)

CARBURETOR ASSY. (MIDDLE) (RIGHT) (CALIFORNIA ONLY)

0 ₽
1D

13204-19E31 CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.)

CARBURETOR ASSY. (RIGHT) (EXCEPT CALIF.)

0 ₽
1D

13204-19E41 CARBURETOR ASSY. (RIGHT) (CALIFORNIA ONLY)

CARBURETOR ASSY. (RIGHT) (CALIFORNIA ONLY)

0 ₽
1

13502-19E00 ...DIAPHRAGM COVER

...DIAPHRAGM COVER

7 340 ₽
2

13573-19E00 ...SPRING

...SPRING

1 250 ₽
3

13418-33E00 ...HOLDER

...HOLDER

1 030 ₽
4

09280-05004 ...O-RING

...O-RING

350 ₽
5

13481-04F00 ...SPRING

...SPRING

650 ₽
6

13382-19E00 ...WASHER

...WASHER

650 ₽
7

13394-17E60 ...E-RING, MULTIPLE JET NOZZLE

...E-RING, MULTIPLE JET NOZZLE

310 ₽
8-2

13387-44030 ...RING

...RING

1 050 ₽
9

13383-19E30 ...NEEDLE, JET (5DH30-54)

...NEEDLE, JET (5DH30-54)

2 930 ₽
10

13507-19E00 ...DIAPHRAGM

...DIAPHRAGM

6 490 ₽
11

13501-19E30 ...VALVE, PISTON

...VALVE, PISTON

13 150 ₽
12-1

09491-23012 ...JET, MAIN (115) (LEFT) (RIGHT)

...JET, MAIN (115) (LEFT) (RIGHT)

1 690 ₽
12-2

09491-22014 ...JET, MAIN (112.5) (MIDDLE LEFT) (MIDDLE RIGHT)

...JET, MAIN (112.5) (MIDDLE LEFT) (MIDDLE RIGHT)

2 580 ₽
13

13385-19E00 ...HOLDER, JET

...HOLDER, JET

5 070 ₽
14

13246-43010 ...O-RING

...O-RING

790 ₽
15

09494-00921 ...JET, NEEDLE (P-0M)

...JET, NEEDLE (P-0M)

7 710 ₽
16-2

13370-07F00 ...VALVE ASSY., NEEDLE (2.3)

...VALVE ASSY., NEEDLE (2.3)

13 760 ₽
17

13250-04F00 ...FLOAT ASSY.

...FLOAT ASSY.

6 300 ₽
18

02112-04083 ...SCREW

...SCREW

190 ₽
19

13602-05A10 ...SCREW

...SCREW

650 ₽
20

13254-01010 ...PIN, FLOAT

...PIN, FLOAT

660 ₽
21

13258-04F00 ...GASKET

...GASKET

1 800 ₽
22-1

09493-32007 ...JET, PILOT AIR (160) (EXCEPT CALIF.

...JET, PILOT AIR (160) (EXCEPT CALIF.

2 420 ₽
22-2

09492-30013 ...JET, PILOT AIR (150) (CALIFORNIA ONLY)

...JET, PILOT AIR (150) (CALIFORNIA ONLY)

2 580 ₽
23

09492-12008 ...JET, PILOT (12.5)

...JET, PILOT (12.5)

2 580 ₽
24

09491-50006 ...JET, STARTER (50)

...JET, STARTER (50)

2 210 ₽
25

13295-29900 ...O-RING

...O-RING

790 ₽
26

13291-29900 ...WASHER

...WASHER

310 ₽
27

13268-48700 ...SPRING

...SPRING

790 ₽
28-1

13279-33E00 ...ADJUSTER (2,5/8) (EXCEPT CALIF.

...ADJUSTER (2,5/8) (EXCEPT CALIF.

1 860 ₽
28-2

13279-33E00 ...ADJUSTER (2,1/2) (CALIFORNIA ONLY)

...ADJUSTER (2,1/2) (CALIFORNIA ONLY)

1 860 ₽
28A

13281-05A00 ...PLUG

...PLUG

830 ₽
29

02112-04107 ...SCREW

...SCREW

270 ₽
30-3

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN

900 ₽
31

13247-33E00 ...SCREW

...SCREW

520 ₽
32

13411-05300 ...PLUNGER

...PLUNGER

4 240 ₽
33

13417-26D00 ...SPRING

...SPRING

900 ₽
34

13278-47090 ...O-RING

...O-RING

340 ₽
35

13418-44080 ...HOLDER, GUIDE

...HOLDER, GUIDE

1 780 ₽
36

13682-31210 ...CAP, STARTER VALVE

...CAP, STARTER VALVE

790 ₽
37

13274-84000 ...CAP (LEFT/MIDDLE LEFT/MIDDLE RIGHT)

...CAP (LEFT/MIDDLE LEFT/MIDDLE RIGHT)

690 ₽
38

09401-06101 ...CLIP (LEFT/MIDDLE LEFT/MIDDLE RIGHT)

...CLIP (LEFT/MIDDLE LEFT/MIDDLE RIGHT)

350 ₽
39-2

13684-02F10 ...HOSE (RIGHT) (EXCEPT CALIF.

...HOSE (RIGHT) (EXCEPT CALIF.

6 490 ₽
40-2

13684-02F10 ...HOSE (CALIFORNIA ONLY)

...HOSE (CALIFORNIA ONLY)

6 490 ₽
41

13683-19E30 ...HOSE (CALIFORNIA ONLY)

...HOSE (CALIFORNIA ONLY)

0 ₽
42

13685-48B00 ...NIPPLE (CALIFORNIA ONLY)

...NIPPLE (CALIFORNIA ONLY)

2 210 ₽
