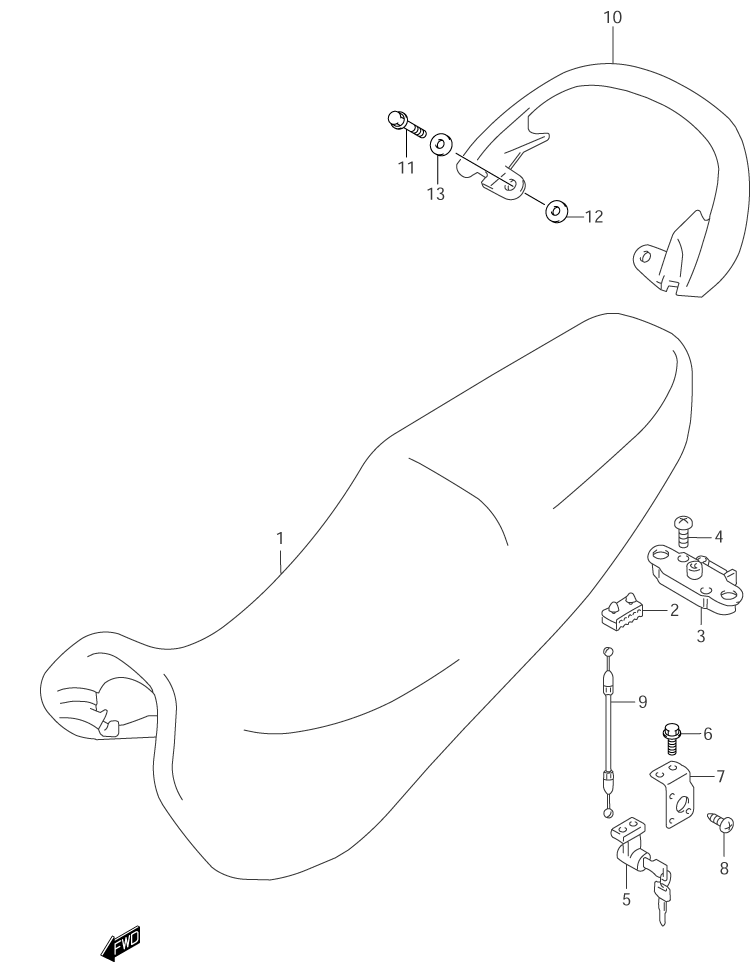

SEAT для Suzuki GSX600F K3 - 2003 года выпуска
-
№АртикулНазвание
-
145100-08F10-LN6 SEAT ASSY.SEAT ASSY.
-
245149-31300 ...CUSHION...CUSHION
-
345220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
402122-06303 SCREWSCREW
-
595700-31840 LOCK SET, SEATLOCK SET, SEAT
-
601547-05103 BOLTBOLT
-
745289-03F10 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
803141-14123 SCREWSCREW
-
945280-15500 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1046211-03F11-33J HANDLE, PILLION RIDER (33J - BLACK)HANDLE, PILLION RIDER (33J - BLACK)
-
1101551-08303 BOLTBOLT
-
1246212-03F10 CUSHION (17X24X1.5)CUSHION (17X24X1.5)
-
1309160-08501 WASHER (8.5X24X2.30)WASHER (8.5X24X2.30)
