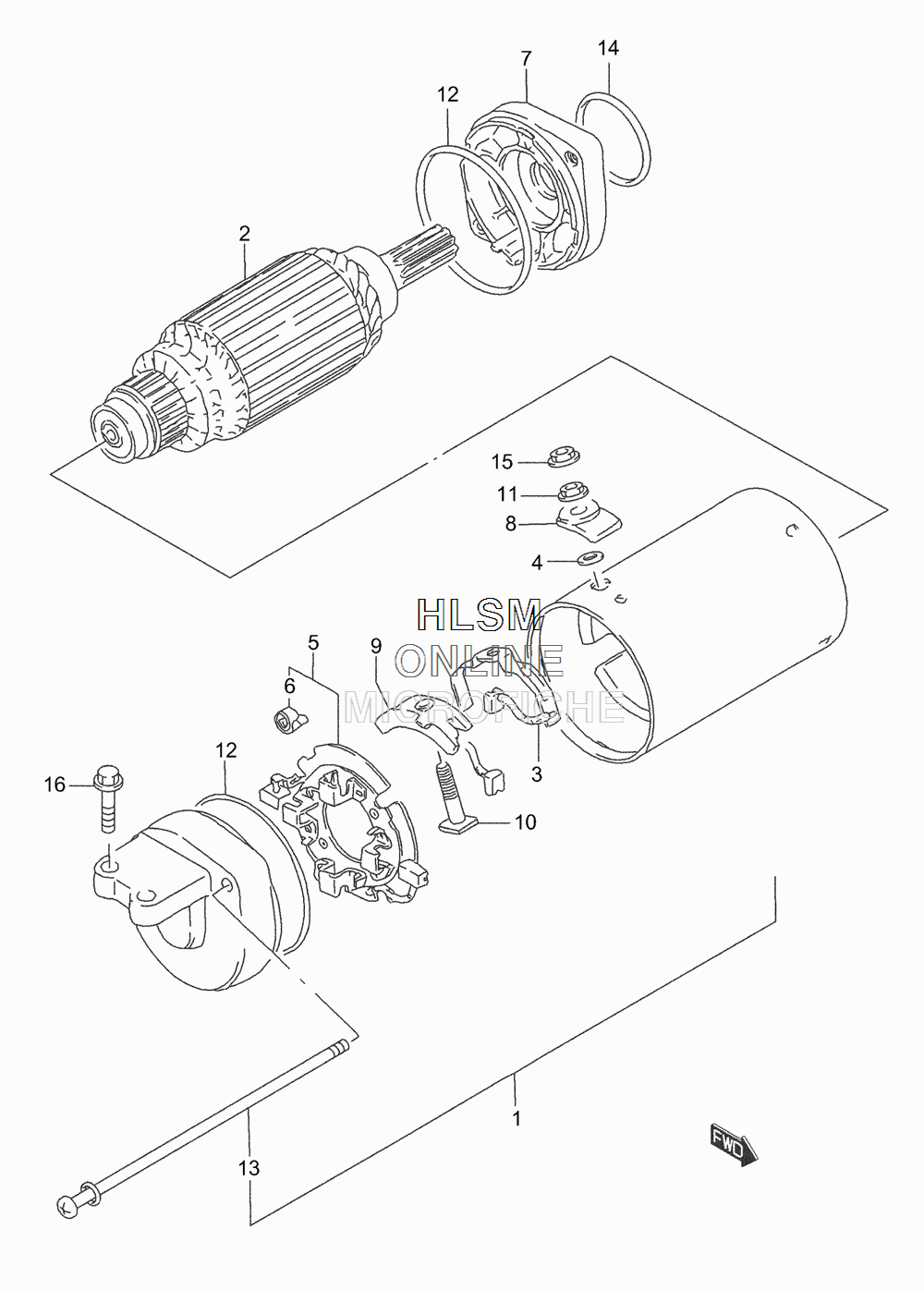

STARTING MOTOR W/ BRUSHES для Suzuki LS650P K3 - 2003 года выпуска
-
№АртикулНазвание
-
131100-24B11-H17 MOTOR ASSY, STARTING (INCL. 2-14)MOTOR ASSY, STARTING (INCL. 2-14)
-
231310-24B01-H17 ARMATUREARMATURE
-
331131-48B00 BRUSH TERMINAL SET (+)BRUSH TERMINAL SET (+)
-
431143-48B00 GASKETGASKET
-
531132-48B00 BRUSH HOLDER SET (-)BRUSH HOLDER SET (-)
-
631135-65010 SPRING, BRUSHSPRING, BRUSH
-
731150-44B00 BRACKET SETBRACKET SET
-
831172-48B10 BUSHINGBUSHING
-
931172-48B20 BUSHINGBUSHING
-
1031130-48B00 BOLTBOLT
-
1131145-48B00 NUTNUT
-
1231264-44110 O RINGO RING
-
1331281-24B10 BOLTBOLT
-
1409280-35005 O RING (D:2.1,ID;34.7)O RING (D:2.1,ID;34.7)
-
1508361-35068 NUTNUT
-
1601547-06207 BOLTBOLT
