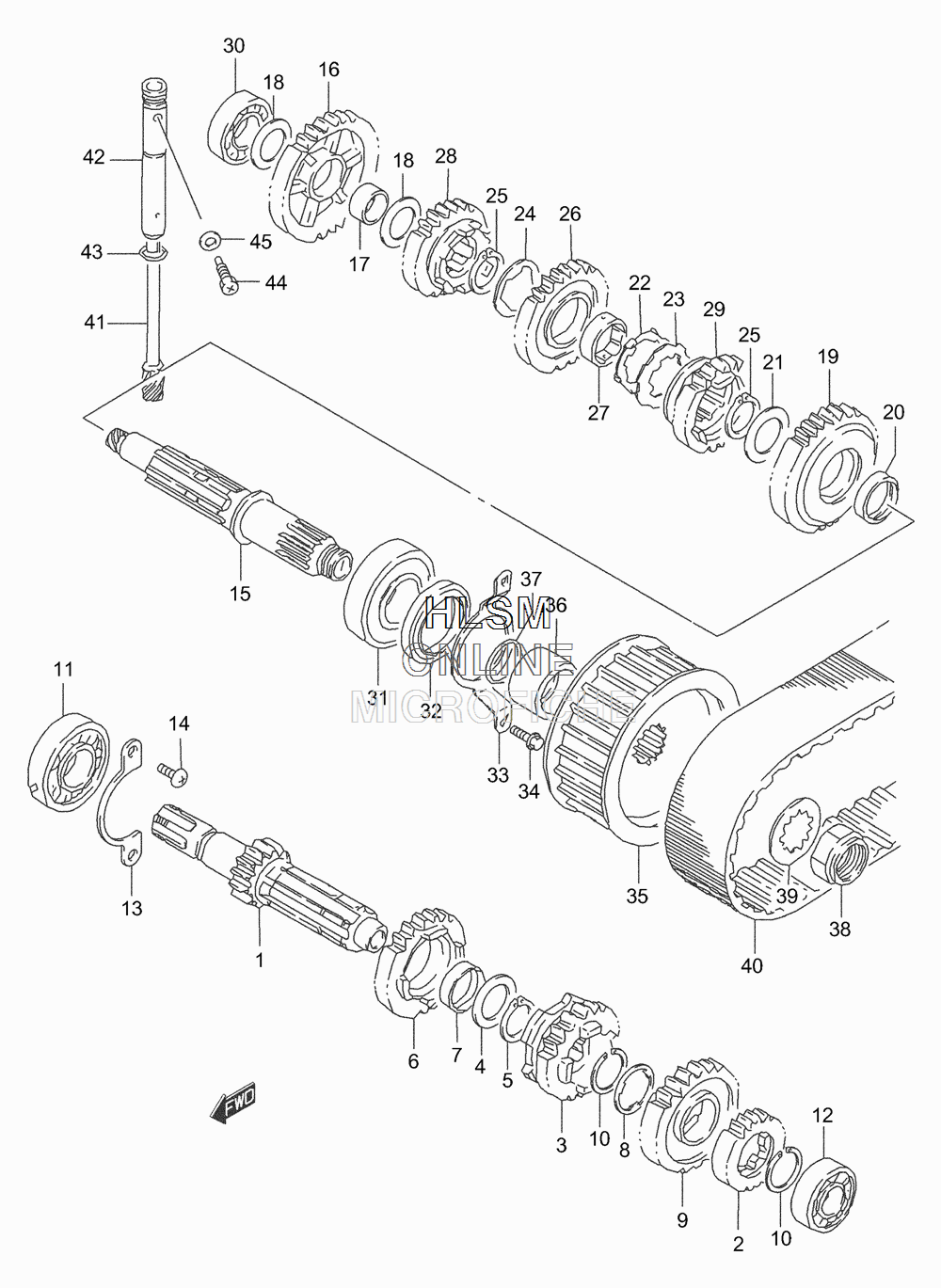

TRANSMISSION для Suzuki LS650P K3 - 2003 года выпуска
-
№АртикулНазвание
-
124121-24B12 COUNTERSHAFT (NT:15)COUNTERSHAFT (NT:15)
-
224221-24B21 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-24B30 GEAR, 3RD DRIVEN (NT:21)GEAR, 3RD DRIVEN (NT:21)
-
408211-25351 WASHERWASHER
-
509380-25003 CIRCLIPCIRCLIP
-
624241-24B20 GEAR, 4TH DRIVE (NT:23)GEAR, 4TH DRIVE (NT:23)
-
724252-19F00 BUSHBUSH
-
809167-25012 WASHER (25.1X31X1.0)WASHER (25.1X31X1.0)
-
924251-24B13 GEAR, 5TH DRIVE (NT:26)GEAR, 5TH DRIVE (NT:26)
-
1009380-25010 CIRCLIPCIRCLIP
-
1109262-22028 BEARING, RIGHT HAND (22X56X16)BEARING, RIGHT HAND (22X56X16)
-
1209262-17027 BEARING, LEFT HAND (17X40X12)BEARING, LEFT HAND (17X40X12)
-
1324741-24B00 HOLDER, BEARINGHOLDER, BEARING
-
1402112-06123 BOLTBOLT
-
1524130-24B12 DRIVE SHAFTDRIVE SHAFT
-
1624311-24B11 GEAR, 1ST DRIVEN (NT:35)GEAR, 1ST DRIVEN (NT:35)
-
1709300-20032 BUSHBUSH
-
1809181-20195 WASHER (20X30X1.0)WASHER (20X30X1.0)
-
1924321-24B20 GEAR, 2ND DRIVEN (NT:30)GEAR, 2ND DRIVEN (NT:30)
-
2009300-25020 BUSHBUSH
-
2108211-25351 WASHERWASHER
-
2209169-25001 WASHER (25.1X37X2.5)WASHER (25.1X37X2.5)
-
2309167-25013 WASHER (25.1X41X1.5)WASHER (25.1X41X1.5)
-
2409167-25016 WASHER (25.5X35X1.0)WASHER (25.5X35X1.0)
-
2509380-25003 CIRCLIPCIRCLIP
-
2624331-24B20 GEAR, 3RD DRIVEN (NT:24)GEAR, 3RD DRIVEN (NT:24)
-
2724332-24510 BUSHBUSH
-
2824341-24B20 GEAR, 4TH DRIVEN (NT:22)GEAR, 4TH DRIVEN (NT:22)
-
2924351-24B13 GEAR, 5TH DRIVEN (NT:23)GEAR, 5TH DRIVEN (NT:23)
-
3009262-20106 BEARING, RIGHT HAND (20X42X12)BEARING, RIGHT HAND (20X42X12)
-
3109262-25083 BEARING, LEFT HAND (25X62X17)BEARING, LEFT HAND (25X62X17)
-
3209283-36003 OIL SEAL, LEFT HAND (36X50X6.0)OIL SEAL, LEFT HAND (36X50X6.0)
-
3324751-24B00 HOLDER, OIL SEALHOLDER, OIL SEAL
-
3401547-06123 BOLTBOLT
-
3527510-24B01 PULLEY, FRONTPULLEY, FRONT
-
3627531-24B00 SPACERSPACER
-
3709280-24010 O RING (D:2.5,ID:23.8)O RING (D:2.5,ID:23.8)
-
3809159-20004 NUTNUT
-
3909167-25019 LOCK WASHERLOCK WASHER
-
4027611-24B00-133 BELT, DRIVEBELT, DRIVE
-
4126131-24B00 GEAR, DRIVEN (NT:8)GEAR, DRIVEN (NT:8)
-
4226481-24B01 SLEEVESLEEVE
-
4309280-10001 O RING (D:1.3,ID:9.6)O RING (D:1.3,ID:9.6)
-
4409135-06013 BOLT (6X10)BOLT (6X10)
-
4509168-06004 WASHER (6.2X11X1.2)WASHER (6.2X11X1.2)
