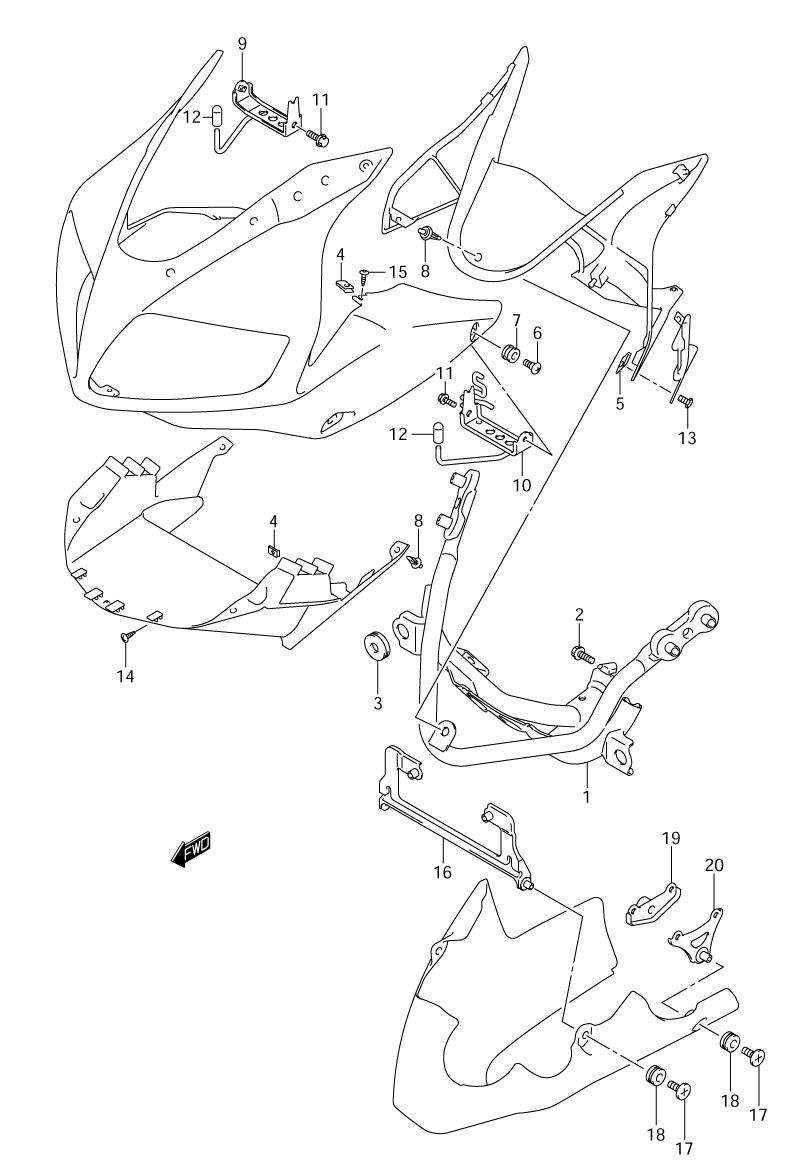

COWLING INSTALLATION PARTS для Suzuki SV1000S K3 - 2003 года выпуска
-
№АртикулНазвание
-
1-194510-16G00 BRACE, COWLINGBRACE, COWLING
-
201550-08203 BOLTBOLT
-
309320-08028 CUSHIONCUSHION
-
494484-24F00 NUTNUT
-
509148-05038 NUTNUT
-
609139-06126 SCREW, COWL SIDESCREW, COWL SIDE
-
709320-09016 CUSHIONCUSHION
-
809409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
994530-16G00 BRACKET, SIDE (RIGHT)BRACKET, SIDE (RIGHT)
-
1094540-16G00 BRACKET, SIDE (LEFT)BRACKET, SIDE (LEFT)
-
1101550-06123 BOLT, BRACKETBOLT, BRACKET
-
1209251-04003 CUSHIONCUSHION
-
1309132-05053 SCREW, LIDSCREW, LID
-
1403242-05123 SCREW, INNER COVERSCREW, INNER COVER
-
1509139-05064 SCREW, METER PANELSCREW, METER PANEL
-
1694520-06G00 BRACKET, UNDER COWL FRONTBRACKET, UNDER COWL FRONT
-
1711178-12F10 BOLTBOLT
-
1809320-09016 CUSHIONCUSHION
-
1994530-06G00 BRACKET, SIDE (RIGHT)BRACKET, SIDE (RIGHT)
-
2094540-06G00 BRACKET, SIDE (LEFT)BRACKET, SIDE (LEFT)
