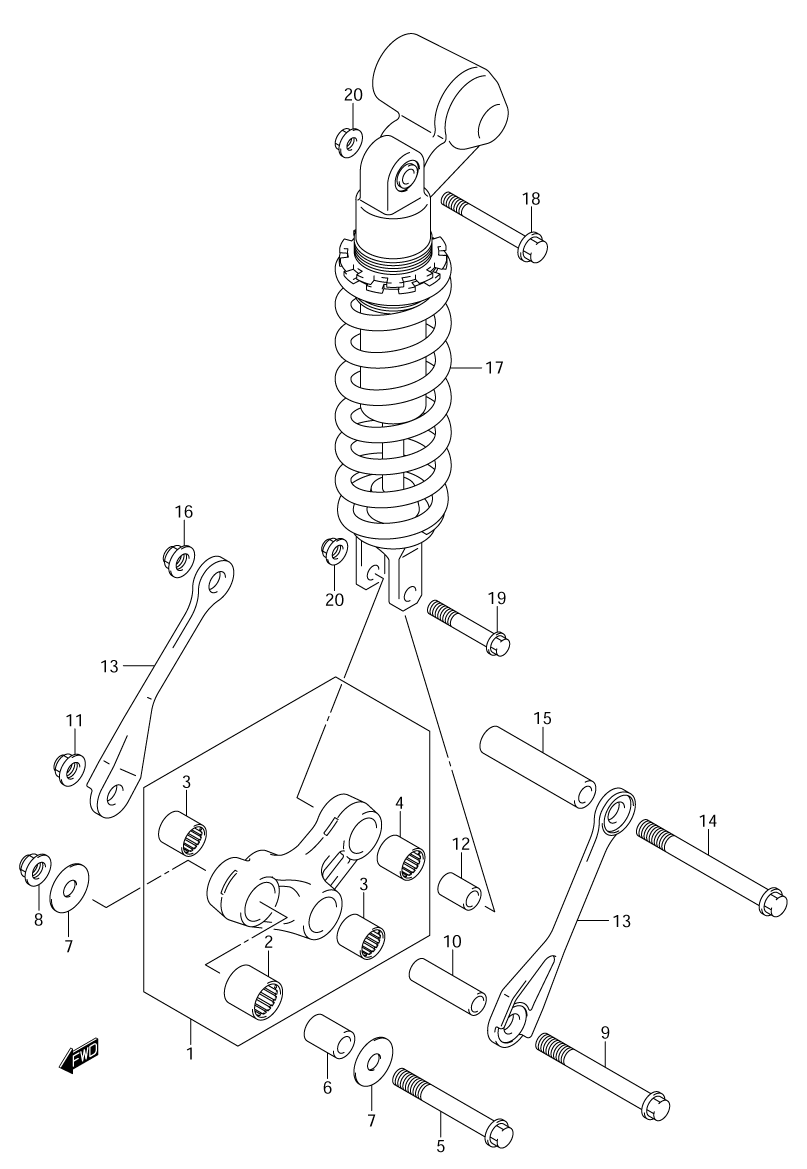

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki SV1000S K3 - 2003 года выпуска
-
№АртикулНазвание
-
162600-16840 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING, FRONT (20X27X30)...BEARING, FRONT (20X27X30)
-
309263-17039 ...BEARING, CENTER (17X24X20)...BEARING, CENTER (17X24X20)
-
409263-17034 ...BEARING, REAR (17X24X26)...BEARING, REAR (17X24X26)
-
562658-19F00 BOLT, FRONT (12X78)BOLT, FRONT (12X78)
-
662684-12C00 SPACER, FRONT (12X78)SPACER, FRONT (12X78)
-
709160-12037 WASHERWASHER
-
809159-12056 NUTNUT
-
962621-08G00 BOLT, CENTERBOLT, CENTER
-
1062626-16G00 SPACER, CENTERSPACER, CENTER
-
1109159-12056 NUTNUT
-
1262684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
13-162641-16G00 ROD, REAR CUSHIONROD, REAR CUSHION
-
1462621-19D00 BOLT, ROD (12X111)BOLT, ROD (12X111)
-
1509180-12122 SPACER, ROD (12X17X85)SPACER, ROD (12X17X85)
-
1609159-12056 NUTNUT
-
17-162100-16G60-28W ABSORBER ASSY., REAR SHOCK (WHITE)ABSORBER ASSY., REAR SHOCK (WHITE)
-
17-262100-16G40-28W ABSORBER ASSY., REAR SHOCK (WHITE)ABSORBER ASSY., REAR SHOCK (WHITE)
-
1809103-10033 BOLT, UPPER (10X70)BOLT, UPPER (10X70)
-
1909103-10143 BOLT, LOWERBOLT, LOWER
-
2009159-10058 NUTNUT
