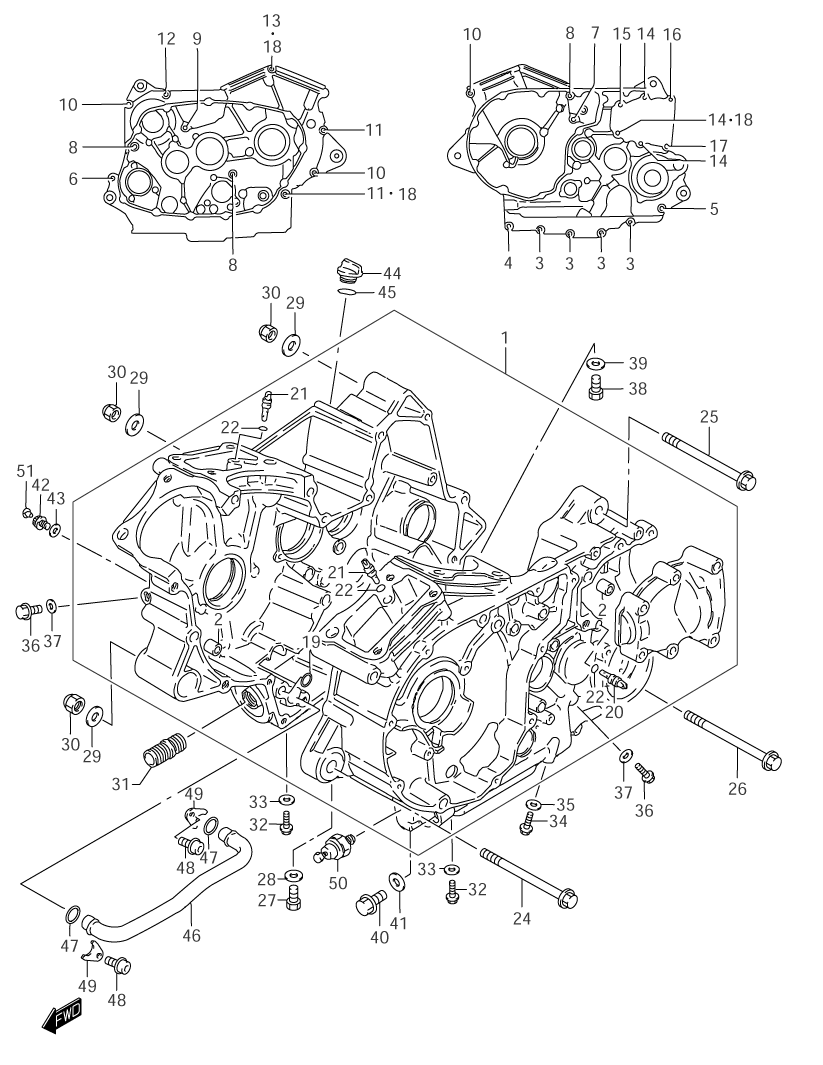

CRANKCASE для Suzuki VS800GL K3 - 2003 года выпуска
-
№АртикулНазвание
-
111301-38851 CRANKCASE SETCRANKCASE SET
-
209206-11007 ...PIN...PIN
-
301550-06407 ...BOLT...BOLT
-
401550-08357 ...BOLT...BOLT
-
501550-08557 ...BOLT...BOLT
-
601550-08607 ...BOLT...BOLT
-
701550-08753 ...BOLT...BOLT
-
801550-08953 ...BOLT...BOLT
-
909103-08109 ...BOLT (8X120)...BOLT (8X120)
-
1009103-08164 ...BOLT (8X95)...BOLT (8X95)
-
1109103-08165 ...BOLT (8X105)...BOLT (8X105)
-
1209103-08166 ...BOLT (8X120)...BOLT (8X120)
-
1309103-08167 ...BOLT (8X160)...BOLT (8X160)
-
1401550-08407 ...BOLT...BOLT
-
1501550-08507 ...BOLT...BOLT
-
1609103-08162 ...BOLT (8X55)...BOLT (8X55)
-
1709103-08163 ...BOLT (8X65)...BOLT (8X65)
-
1809168-08016 ...GASKET...GASKET
-
1909280-12009 ...O-RING, CRANKCASE (D:1.9,ID:12.6)...O-RING, CRANKCASE (D:1.9,ID:12.6)
-
2009493-20014 ...JET, OIL GALLERY...JET, OIL GALLERY
-
2109493-28010 ...JET, OIL GALLERY...JET, OIL GALLERY
-
2209280-04004 ...O-RING (D:1.2,ID:4.0)...O-RING (D:1.2,ID:4.0)
-
23-109160-48001 ...WASHER, CRANK THRUST (NO.1)...WASHER, CRANK THRUST (NO.1)
-
23-209160-48002 ...WASHER, CRANK THRUST (NO.2)...WASHER, CRANK THRUST (NO.2)
-
23-309160-48003 ...WASHER, CRANK THRUST (NO.3)...WASHER, CRANK THRUST (NO.3)
-
23-409160-48004 ...WASHER, CRANK THRUST (NO.4)...WASHER, CRANK THRUST (NO.4)
-
23-509160-48005 ...WASHER, CRANK THRUST (NO.5)...WASHER, CRANK THRUST (NO.5)
-
23-609160-48006 ...WASHER, CRANK THRUST (NO.6)...WASHER, CRANK THRUST (NO.6)
-
23-709160-48007 ...WASHER, CRANK THRUST (NO.7)...WASHER, CRANK THRUST (NO.7)
-
23-809160-48008 ...WASHER, CRANK THRUST (NO.8)...WASHER, CRANK THRUST (NO.8)
-
23-909160-48009 ...WASHER, CRANK THRUST (NO.9)...WASHER, CRANK THRUST (NO.9)
-
23-1009160-48010 ...WASHER, CRANK THRUST (NO.10)...WASHER, CRANK THRUST (NO.10)
-
2409103-10141 BOLT (10X125)BOLT (10X125)
-
2509103-10122 BOLT (10X130)BOLT (10X130)
-
2609103-10078 BOLT (10X150)BOLT (10X150)
-
2709247-12106 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2809168-12002 GASKETGASKET
-
2908322-01103 WASHERWASHER
-
3009159-10052 NUTNUT
-
3116591-06B00 UNION, OIL FILTERUNION, OIL FILTER
-
32-101550-08127 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3309168-08016 GASKETGASKET
-
3409247-10008 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3509168-10002 GASKETGASKET
-
36-101550-06107 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3709168-06023 WASHER (5.8X13X1.2)WASHER (5.8X13X1.2)
-
3809248-16012 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3909168-16002 GASKETGASKET
-
4009247-14026 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
4109168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
4207120-08127 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
4309168-08016 GASKETGASKET
-
4409259-20008 PLUG, OIL FILLERPLUG, OIL FILLER
-
4509280-17003 O-RING (D:3.1,ID:16.8)O-RING (D:3.1,ID:16.8)
-
4611451-38A00 PIPE, OIL GALLERYPIPE, OIL GALLERY
-
4709280-15008 O-RING (D:3.1,ID:14.8)O-RING (D:3.1,ID:14.8)
-
4809106-06075 BOLTBOLT
-
4911461-38A00 CLAMPCLAMP
-
5037820-33D10 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
5109250-06011 CAPCAP
