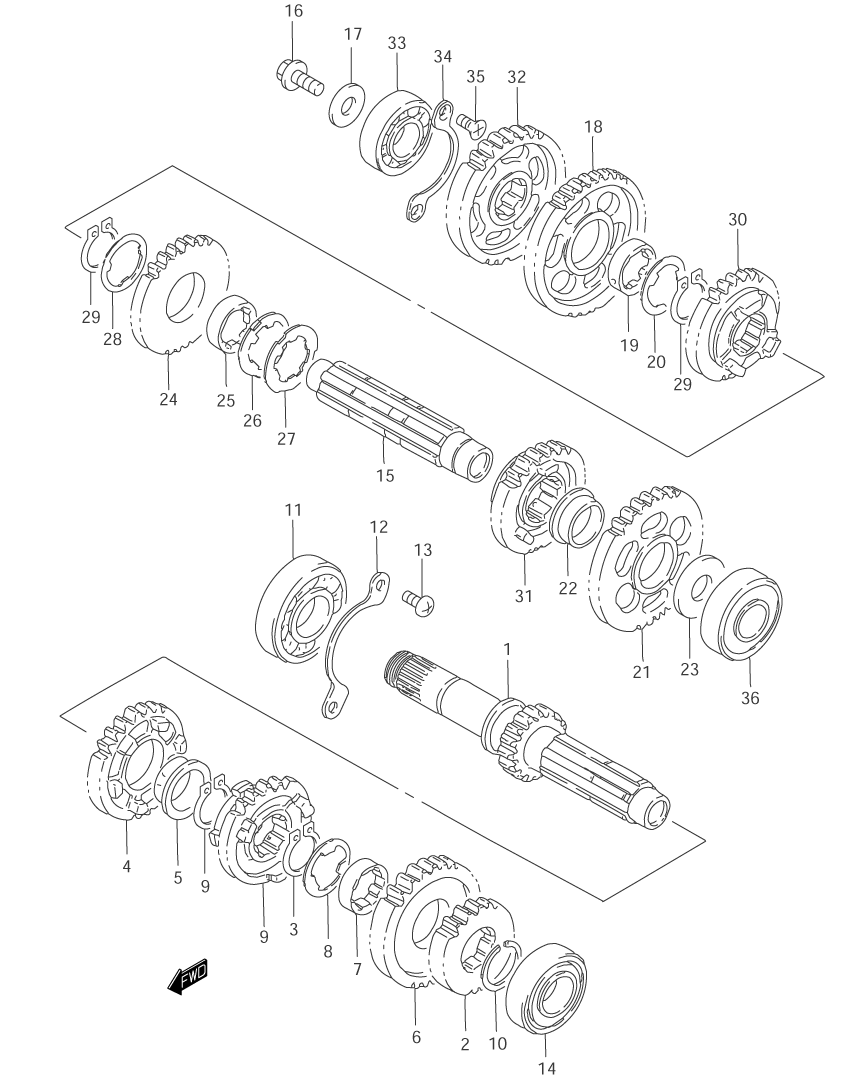

TRANSMISSION для Suzuki VS800GL K3 - 2003 года выпуска
-
№АртикулНазвание
-
124100-38820 COUNTERSHAFT (NT:14)COUNTERSHAFT (NT:14)
-
224221-38A01 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-38A02 GEAR, 3RD DRIVE (NT:22)GEAR, 3RD DRIVE (NT:22)
-
424241-38A00 GEAR, 4TH DRIVE (NT:25)GEAR, 4TH DRIVE (NT:25)
-
509301-25001 BUSHBUSH
-
624251-38A01 GEAR, 5TH DRIVE (NT:27)GEAR, 5TH DRIVE (NT:27)
-
724252-38A10 BUSHBUSH
-
809167-25016 WASHER (25.5X35X1.0)WASHER (25.5X35X1.0)
-
909380-25003 CIRCLIPCIRCLIP
-
1009380-25010 CIRCLIPCIRCLIP
-
1109262-25080 BEARING, (RIGHT) (25X62X17)BEARING, (RIGHT) (25X62X17)
-
1224741-38A00 RETAINERRETAINER
-
1309125-06086 SCREW (6X12)SCREW (6X12)
-
1409262-20139 BEARING, (LEFT) (20X47X14)BEARING, (LEFT) (20X47X14)
-
1524131-38A03 DRIVE SHAFTDRIVE SHAFT
-
1624135-38A02 NOZZLENOZZLE
-
1708211-10305 WASHERWASHER
-
1824311-38A20 GEAR, 1ST DRIVEN (NT:32)GEAR, 1ST DRIVEN (NT:32)
-
1924332-07A00 BUSHBUSH
-
2009167-28001 WASHER, (LEFT) (28.1X38X1.0)WASHER, (LEFT) (28.1X38X1.0)
-
2124321-38A00 GEAR, 2ND DRIVEN (NT:31)GEAR, 2ND DRIVEN (NT:31)
-
2209301-22002 BUSHBUSH
-
2309181-20251 WASHER (20X34X1.0)WASHER (20X34X1.0)
-
2424331-38A02 GEAR, 3RD DRIVEN (NT:27)GEAR, 3RD DRIVEN (NT:27)
-
2524332-07A00 BUSHBUSH
-
2609169-28001 LOCK WASHER, (RIGHT)LOCK WASHER, (RIGHT)
-
2709167-28002 LOCK WASHER, (LEFT)LOCK WASHER, (LEFT)
-
2809167-28001 WASHERWASHER
-
2908331-31286 CIRCLIPCIRCLIP
-
3024341-38A02 GEAR, 4TH DRIVEN (NT:25)GEAR, 4TH DRIVEN (NT:25)
-
3124351-38A03 GEAR, 5TH DRIVEN (NT:23)GEAR, 5TH DRIVEN (NT:23)
-
3224621-38A00 GEAR, REDUCTION DRIVE (NT:30)GEAR, REDUCTION DRIVE (NT:30)
-
3309262-20073 BEARING, (RIGHT) (20X52X15)BEARING, (RIGHT) (20X52X15)
-
3424751-38A00 RETAINERRETAINER
-
3509126-06011 SCREW (6X12)SCREW (6X12)
-
3609262-20080 BEARING, (LEFT) (20X52X15)BEARING, (LEFT) (20X52X15)
