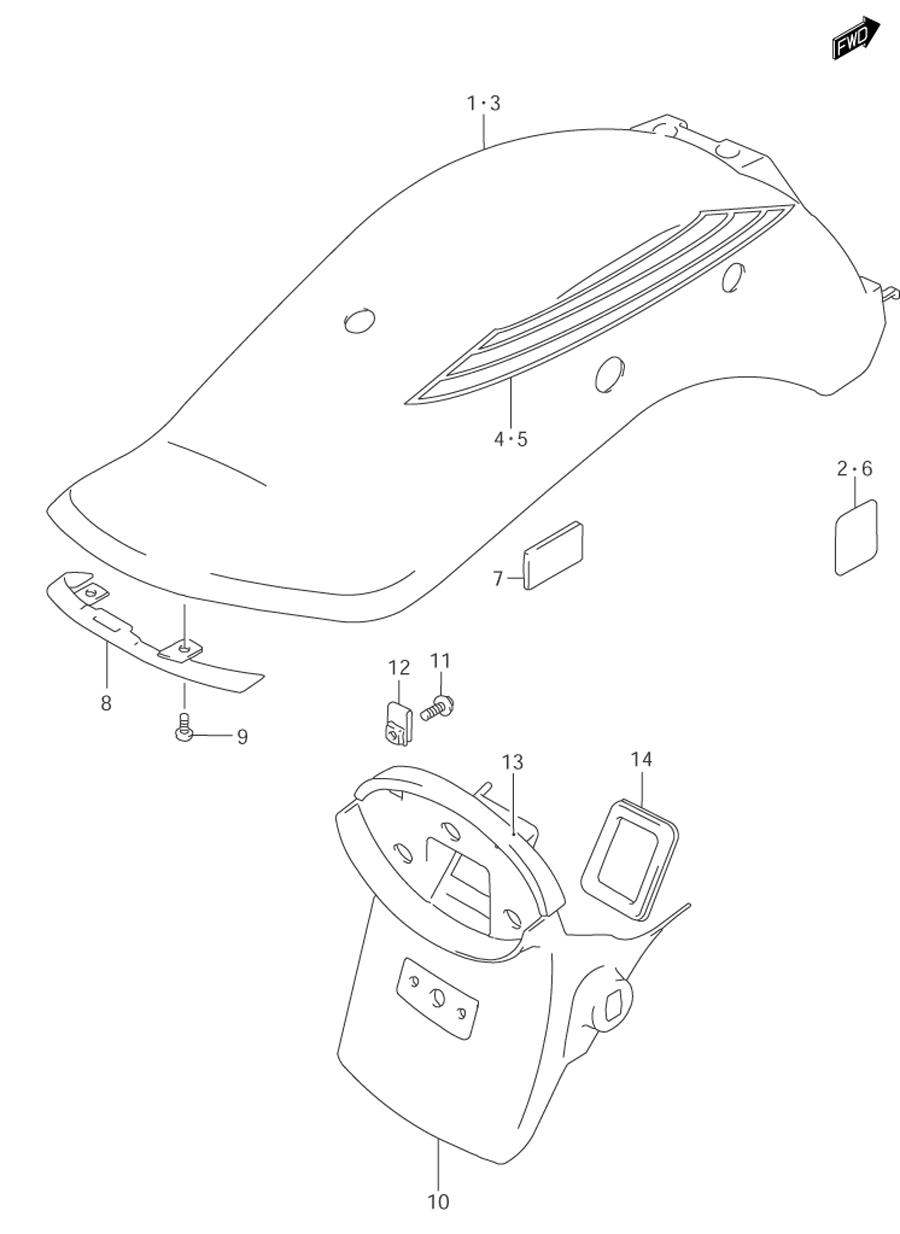

FENDER - REAR для Suzuki VZ800 K3 - 2003 года выпуска
-
№АртикулНазвание
-
163110-48E50-33J FENDER (REAR) (33J - BLACK)FENDER (REAR) (33J - BLACK)
-
261544-94500 ...PAD, FENDER (REAR)...PAD, FENDER (REAR)
-
363110-48EA0-YD8 FENDER (REAR/SONIC SILVER METALLIC/PEARL NOVELTY BLACK)FENDER (REAR/SONIC SILVER METALLIC/PEARL NOVELTY BLACK)
-
468175-48E00-CY9 ...TAPE (RIGHT) (CY9 - BLACK/SILVER) (FOR YD8 - SILVER)...TAPE (RIGHT) (CY9 - BLACK/SILVER) (FOR YD8 - SILVER)
-
568176-48E00-CY9 ...TAPE (LEFT) (CY9 - BLACK/SILVER) (FOR YD8 - SILVER)...TAPE (LEFT) (CY9 - BLACK/SILVER) (FOR YD8 - SILVER)
-
661544-94500 ...PAD, FENDER (REAR)...PAD, FENDER (REAR)
-
709320-13015 CUSHIONCUSHION
-
863112-48E00 COVER, FENDER (REAR)COVER, FENDER (REAR)
-
903541-05123 SCREWSCREW
-
1063311-48E00 EXTENSION, FENDER (REAR)EXTENSION, FENDER (REAR)
-
1102162-06163 SCREWSCREW
-
1247153-19C01 NUT, FENDER EXTENTION (REAR)NUT, FENDER EXTENTION (REAR)
-
1363312-48E00 CUSHION, FENDER EXTENSION (REAR)CUSHION, FENDER EXTENSION (REAR)
-
1463191-48E00 CAP, FENDER EXTENSION (REAR)CAP, FENDER EXTENSION (REAR)
