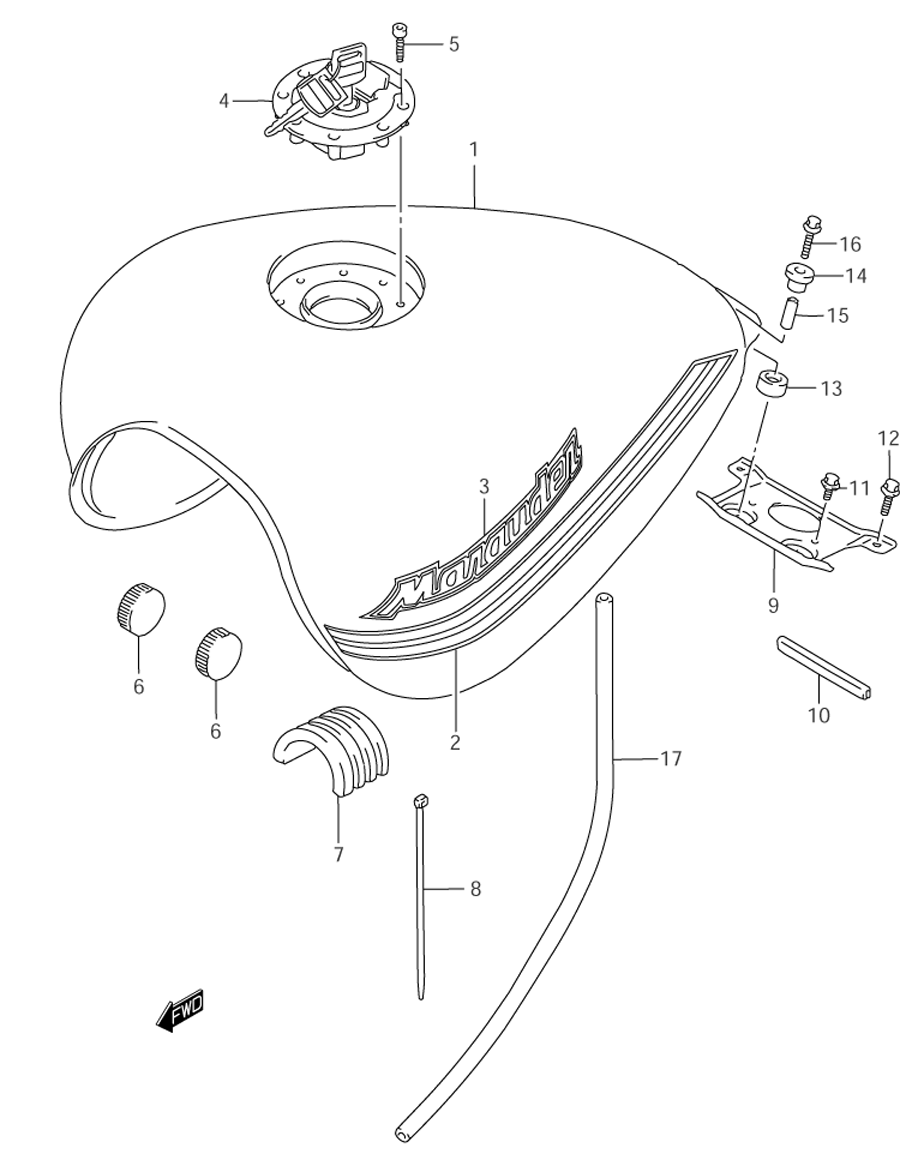

FUEL TANK для Suzuki VZ800 K3 - 2003 года выпуска

№

Артикул

Название
1-5

44100-48EK0-2AX TANK ASSY., FUEL (2AX - BLACK) (EXCEPT CALIF.)

TANK ASSY., FUEL (2AX - BLACK) (EXCEPT CALIF.)

6 172 400 ₽
1-6

44100-48EM0-CY9 TANK ASSY., FUEL (CY9 - BLACK/SILVER) (EXCEPT CALIF.)

TANK ASSY., FUEL (CY9 - BLACK/SILVER) (EXCEPT CALIF.)

6 687 200 ₽
1-7

44100-48EL0-2AX TANK ASSY., FUEL (2AX - BLACK) (CALIFORNIA ONLY)

TANK ASSY., FUEL (2AX - BLACK) (CALIFORNIA ONLY)

6 333 600 ₽
1-8

44100-48EN0-CY9 TANK ASSY., FUEL (CY9 - BLACK/SILVER) (CALIFORNIA ONLY)

TANK ASSY., FUEL (CY9 - BLACK/SILVER) (CALIFORNIA ONLY)

6 333 600 ₽
2-1

68110-48E80-3CG ...TAPE SET, FUEL TANK (FOR 2AX/33J - BLACK)

...TAPE SET, FUEL TANK (FOR 2AX/33J - BLACK)

361 400 ₽
2-2

68110-48E80-CN5 ...TAPE SET, FUEL TANK (FOR CN5 - SILVER/BLUE)

...TAPE SET, FUEL TANK (FOR CN5 - SILVER/BLUE)

338 000 ₽
2-3

68110-48E80-CY9 ...TAPE SET, FUEL TANK (FOR CY9 - BLACK/SILVER)

...TAPE SET, FUEL TANK (FOR CY9 - BLACK/SILVER)

332 800 ₽
3-1

68111-48E40-HM3 ...EMBLEM, FUEL TANK (HM3 - YELLOW/BLACK/WHITE CHROME) (FOR33J - BLACK)

...EMBLEM, FUEL TANK (HM3 - YELLOW/BLACK/WHITE CHROME) (FOR33J - BLACK)

92 300 ₽
3-2

68111-48E40-HM2 ...EMBLEM, FUEL TANK (HM2 - WHITE/BLACK/WHITE CHROME/BLUE) (FOR CN5 - SILVER/BLUE)

...EMBLEM, FUEL TANK (HM2 - WHITE/BLACK/WHITE CHROME/BLUE) (FOR CN5 - SILVER/BLUE)

76 700 ₽
3-3

68111-48E40-KW8 ...EMBLEM, FUEL TANK (KW8 - WHITE/BLACK/WHITE CHROME) (FOR 2AX - BLACK)

...EMBLEM, FUEL TANK (KW8 - WHITE/BLACK/WHITE CHROME) (FOR 2AX - BLACK)

75 400 ₽
3-4

68111-48E40-KW9 ...EMBLEM, FUEL TANK (KW9 - BLUE/WHITE/BLACK/SILVER) (FOR CY9 - BLACK/SILVER)

...EMBLEM, FUEL TANK (KW9 - BLUE/WHITE/BLACK/SILVER) (FOR CY9 - BLACK/SILVER)

89 700 ₽
4-1

44200-33850 CAP SET, FUEL TANK (EXCEPT CALIF.)

CAP SET, FUEL TANK (EXCEPT CALIF.)

43 410 ₽
4-2

44200-33860 CAP SET, FUEL TANK (CALIFORNIA ONLY)

CAP SET, FUEL TANK (CALIFORNIA ONLY)

0 ₽
5

09106-05017 BOLT (L:20)

BOLT (L:20)

470 ₽
6

09329-10007 CUSHION

CUSHION

440 ₽
7

44541-13E00 CUSHION, FUEL TANK (UPPER)

CUSHION, FUEL TANK (UPPER)

2 470 ₽
8

09407-25402 CLAMP (L:248)

CLAMP (L:248)

810 ₽
9

44550-48E01 BRACKET, FUEL TANK (REAR)

BRACKET, FUEL TANK (REAR)

3 080 ₽
10

47512-47D00 PROTECTOR

PROTECTOR

960 ₽
11

01550-06103 BOLT (FRONT)

BOLT (FRONT)

340 ₽
12

01550-06163 BOLT (REAR)

BOLT (REAR)

340 ₽
13

44542-48E00 CUSHION, FUEL TANK (REAR/LOWER)

CUSHION, FUEL TANK (REAR/LOWER)

1 120 ₽
14

09320-10022 CUSHION (UPPER)

CUSHION (UPPER)

440 ₽
15

09180-06067 SPACER (6.5X10.5X22.5)

SPACER (6.5X10.5X22.5)

390 ₽
16

01550-06353 BOLT

BOLT

400 ₽
17

44423-48E01 HOSE, DRAIN

HOSE, DRAIN

3 960 ₽
