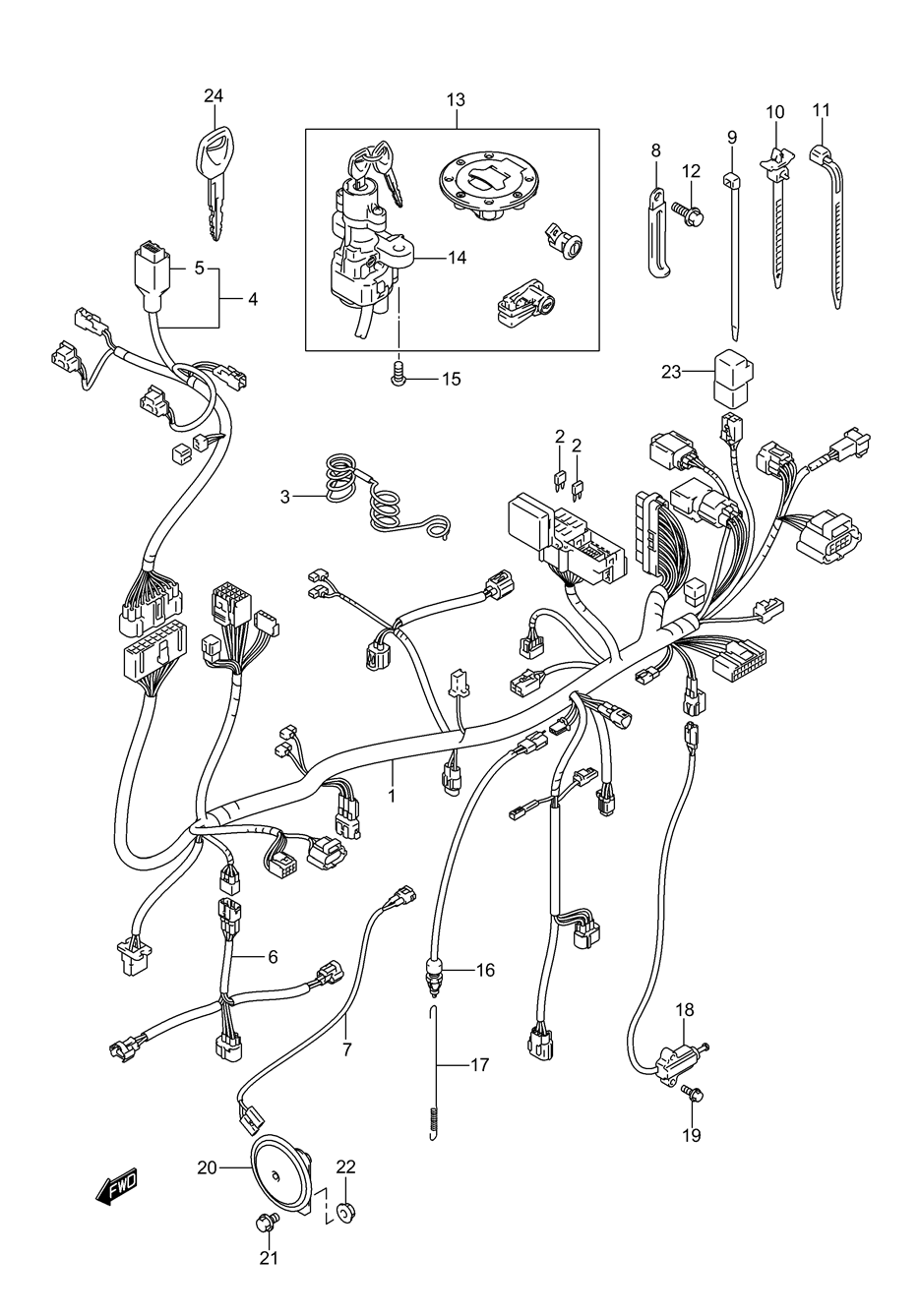

ELECTRICAL - WIRING HARNESS для Suzuki DL1000 K4 - 2004 года выпуска
-
№АртикулНазвание
-
136610-06G50 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
209481-15501 FUSE (15A)FUSE (15A)
-
336619-06G01 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
436620-27G30 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
536618-18G10 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
636859-06G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
736852-06G00 WIRE, HORN LEADWIRE, HORN LEAD
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
809404-06433 CLAMP (L:80)CLAMP (L:80)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1009407-17401 CLAMP (L:150)CLAMP (L:150)
-
1109407-11401 CLAMP (L:95)CLAMP (L:95)
-
1109407-14403 CLAMP (L:125)CLAMP (L:125)
-
1201547-06103 BOLTBOLT
-
1337000-06860 LOCK SETLOCK SET
-
1337000-06870 LOCK SETLOCK SET
-
1437100-06G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1509139-08016 SCREW (8X20)SCREW (8X20)
-
1637740-31D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1743259-06G00 SPRING, STOP LAMPSPRING, STOP LAMP
-
1837840-06G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1901550-06163 BOLTBOLT
-
2038500-41F00 HORN ASSYHORN ASSY
-
2101550-08123 BOLTBOLT
-
2208316-10083 NUTNUT
-
2338740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2437146-33E00 KEY, BLANKKEY, BLANK
