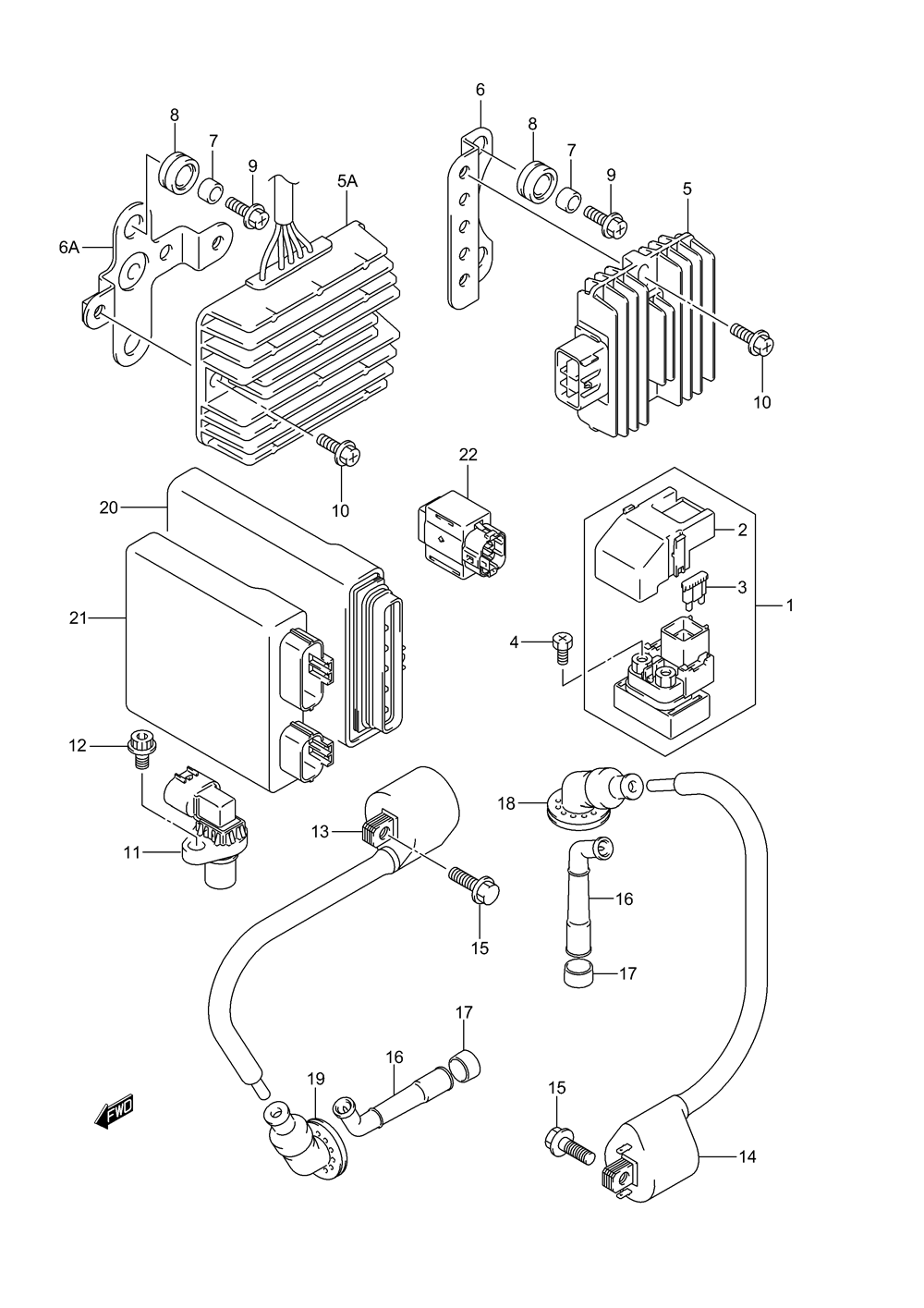

ELECTRICAL для Suzuki DL1000 K4 - 2004 года выпуска
-
№АртикулНазвание
-
131800-06G00 RELAY ASSY, STARTINGRELAY ASSY, STARTING
-
231861-47E00 COVER, RELAY ASSYCOVER, RELAY ASSY
-
309481-30101 FUSE, 30AFUSE, 30A
-
409128-06013 BOLT (6X8)BOLT (6X8)
-
5A32800-06G00 RECTIFIER ASSYRECTIFIER ASSY
-
6A32831-06G10 BRACKET, RECTIFIERBRACKET, RECTIFIER
-
709180-06258 SPACER (6.5X9X6.7)SPACER (6.5X9X6.7)
-
809320-09036 CUSHIONCUSHION
-
902162-06203 BOLT, BRACKETBOLT, BRACKET
-
1002162-06203 BOLT, RECTIFIERBOLT, RECTIFIER
-
1133220-80G00 SENSOR ASSY, CAM POSITIONSENSOR ASSY, CAM POSITION
-
1207130-06163 BOLTBOLT
-
1333410-06G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1433420-06G00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
1501547-06203 BOLTBOLT
-
1633510-17G00 CAP ASSY, SPARK PLUGCAP ASSY, SPARK PLUG
-
1733541-23E01 SEAL, SPARK PLUG CAPSEAL, SPARK PLUG CAP
-
1833542-06G00 SEAL, HIGH TENSION CORD, REARSEAL, HIGH TENSION CORD, REAR
-
1933542-06G10 SEAL, HIGH TENSION CORD, FRONTSEAL, HIGH TENSION CORD, FRONT
-
2132920-06G60 CONTROL UNIT, FI (EXCEPT CALIF.)CONTROL UNIT, FI (EXCEPT CALIF.)
-
2132920-06G70 CONTROL UNIT, FI (CALIF. ONLY)CONTROL UNIT, FI (CALIF. ONLY)
-
2233960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
