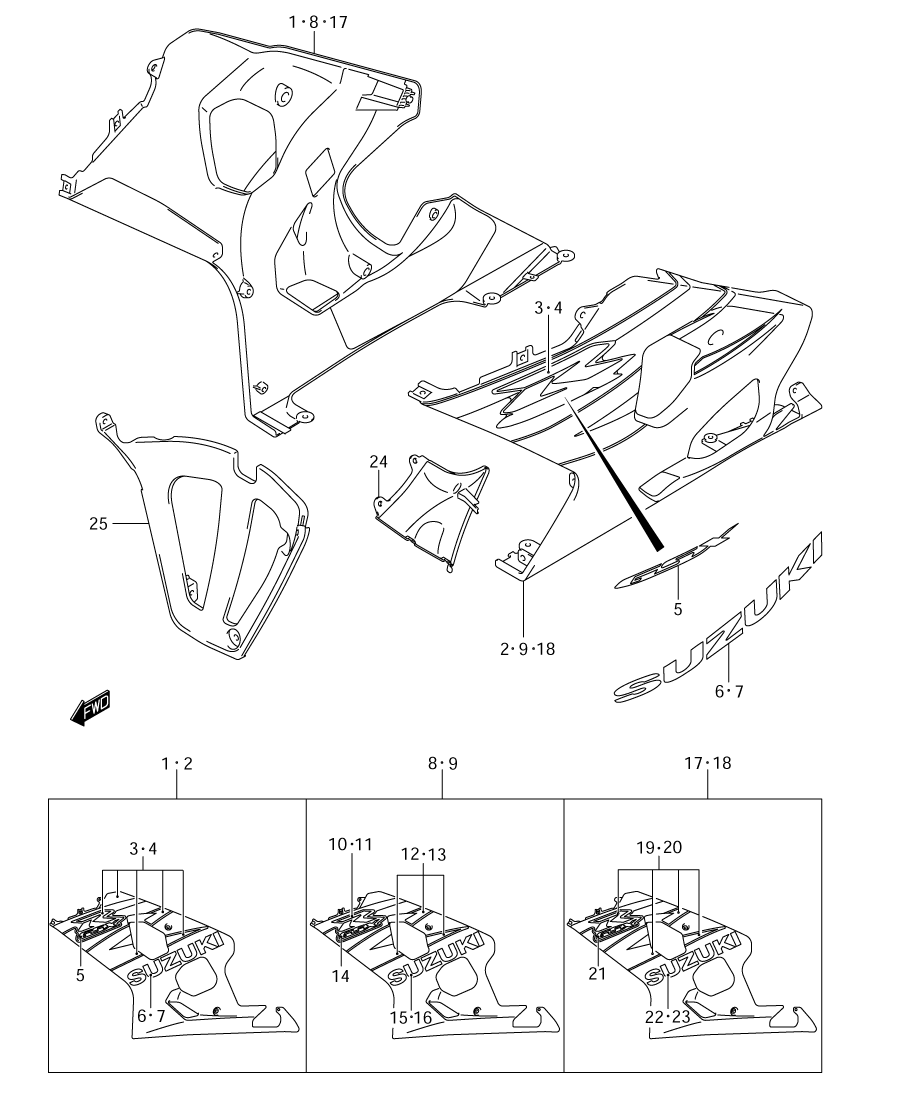

COWLING - UNDER BODY для Suzuki GSX-R600 K4 - 2004 года выпуска
-
№АртикулНазвание
-
194407-29G00-YBB COWL ASSY., UNDER (RIGHT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)COWL ASSY., UNDER (RIGHT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
-
294408-29G00-YBB COWL ASSY., UNDER (LEFT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)COWL ASSY., UNDER (LEFT) (YBB - BLUE) (FOR LR5 - BLUE/WHITE)
-
368180-29G00-ATM ...TAPE SET, (RIGHT) (ATM - WHITE/BLUE/BLUE/ORANGE/BLACK)...TAPE SET, (RIGHT) (ATM - WHITE/BLUE/BLUE/ORANGE/BLACK)
-
468190-29G00-ATM ...TAPE SET, (LEFT) (ATM - WHITE/BLUE/BLUE/ORANGE/BLACK)...TAPE SET, (LEFT) (ATM - WHITE/BLUE/BLUE/ORANGE/BLACK)
-
568181-18G40-AKW ...EMBLEM, "GSX" (AKW - BLACK/SILVER)...EMBLEM, "GSX" (AKW - BLACK/SILVER)
-
668181-29G00-YBD ...EMBLEM, "SUZUKI" (RIGHT) (YBD - WHITE)...EMBLEM, "SUZUKI" (RIGHT) (YBD - WHITE)
-
768191-29G00-YBD ...EMBLEM, "SUZUKI" (LEFT) (YBD - WHITE)...EMBLEM, "SUZUKI" (LEFT) (YBD - WHITE)
-
894407-29G10-YEC COWL ASSY., UNDER (RIGHT) (YEC - YELLOW)COWL ASSY., UNDER (RIGHT) (YEC - YELLOW)
-
994408-29G10-YEC COWL ASSY., UNDER (LEFT) (YEC - YELLOW)COWL ASSY., UNDER (LEFT) (YEC - YELLOW)
-
1068185-30G00-ATH ...TAPE, (UPPER) (RIGHT) (ATH - BLACK/YELLOW/ORANGE)...TAPE, (UPPER) (RIGHT) (ATH - BLACK/YELLOW/ORANGE)
-
1168195-30G00-ATH ...TAPE, (UPPER) (LEFT) (ATH - BLACK/YELLOW/ORANGE)...TAPE, (UPPER) (LEFT) (ATH - BLACK/YELLOW/ORANGE)
-
1268180-29G10-ATG ...TAPE SET, CENTER (RIGHT) (ATG - BLACK/YELLOW)...TAPE SET, CENTER (RIGHT) (ATG - BLACK/YELLOW)
-
1368190-29G10-ATG ...TAPE SET, CENTER (LEFT) (ATG - BLACK/YELLOW)...TAPE SET, CENTER (LEFT) (ATG - BLACK/YELLOW)
-
1468181-18G40-AKW ...EMBLEM, "GSX" (AKW - BLACK/SILVER)...EMBLEM, "GSX" (AKW - BLACK/SILVER)
-
1568181-29G00-019 ...EMBLEM, "SUZUKI" (RIGHT) (019 - BLACK)...EMBLEM, "SUZUKI" (RIGHT) (019 - BLACK)
-
1668191-29G00-019 ...EMBLEM, "SUZUKI" (LEFT) (019 - BLACK)...EMBLEM, "SUZUKI" (LEFT) (019 - BLACK)
-
1794407-29G20-019 COWL ASSY., UNDER (RIGHT) (019 - BLACK)COWL ASSY., UNDER (RIGHT) (019 - BLACK)
-
1894408-29G20-019 COWL ASSY., UNDER (LEFT) (019 - BLACK)COWL ASSY., UNDER (LEFT) (019 - BLACK)
-
1968180-29G20-ATL ...TAPE SET, (RIGHT) (ATL - ORANGE/BLACK/SILVER/ORANGE)...TAPE SET, (RIGHT) (ATL - ORANGE/BLACK/SILVER/ORANGE)
-
2068190-29G20-ATL ...TAPE SET, (LEFT) (ATL - ORANGE/BLACK/SILVER/ORANGE)...TAPE SET, (LEFT) (ATL - ORANGE/BLACK/SILVER/ORANGE)
-
2168181-18G40-AKW ...EMBLEM, "GSX" (AKW - BLACK/SILVER)...EMBLEM, "GSX" (AKW - BLACK/SILVER)
-
2268181-29G00-YD8 ...EMBLEM, "SUZUKI" (RIGHT) (YBD - SILVER)...EMBLEM, "SUZUKI" (RIGHT) (YBD - SILVER)
-
2368191-29G00-YD8 ...EMBLEM, "SUZUKI" (LEFT) (YBD - SILVER)...EMBLEM, "SUZUKI" (LEFT) (YBD - SILVER)
-
2494462-29G00 COWL, UNDER INNER (LEFT)COWL, UNDER INNER (LEFT)
-
2594498-29G00 COWL, UNDER CENTERCOWL, UNDER CENTER
