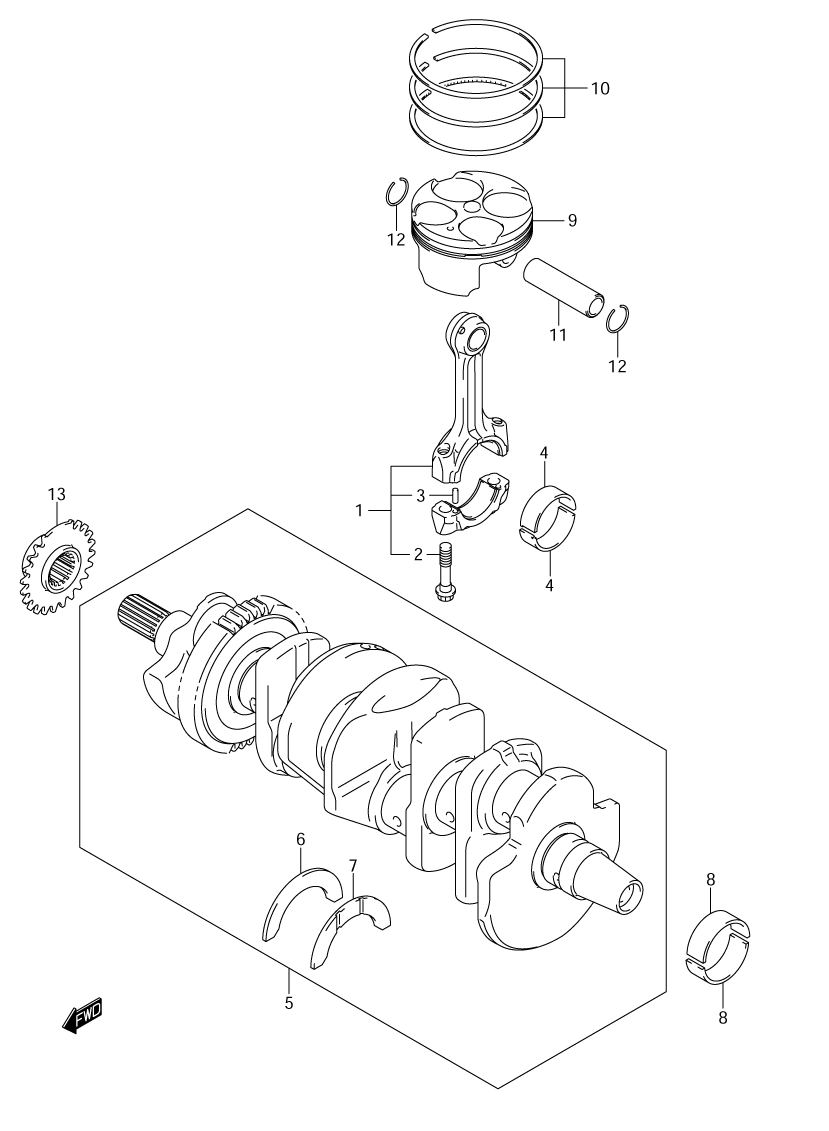

CRANKSHAFT W/ PISTON для Suzuki GSX-R600 K4 - 2004 года выпуска

№

Артикул

Название
1

12160-29G00 ROD, CONNECTING ASSY.

ROD, CONNECTING ASSY.

32 760 ₽
2

12163-35F00 ...BOLT

...BOLT

1 860 ₽
3

12165-27A50 ...PIN

...PIN

250 ₽
4-1

12164-29G00-0A0 BEARING, CRANK PIN (GREEN)

BEARING, CRANK PIN (GREEN)

66 300 ₽
4-2

12164-29G00-0B0 BEARING, CRANK PIN (BLACK)

BEARING, CRANK PIN (BLACK)

66 300 ₽
4-3

12164-29G00-0C0 BEARING, CRANK PIN (BROWN)

BEARING, CRANK PIN (BROWN)

66 300 ₽
4-4

12164-29G00-0D0 BEARING, CRANK PIN (YELLOW)

BEARING, CRANK PIN (YELLOW)

66 300 ₽
5

12000-29810 CRANKSHAFT SET

CRANKSHAFT SET

130 ₽
6

12228-17E00-0D0 ...BEARING, THRUST (RIGHT) (GREEN) * SEE NOTE BELOW

...BEARING, THRUST (RIGHT) (GREEN) * SEE NOTE BELOW

45 500 ₽
7-1

12228-17E00-0A0 ...BEARING, THRUST (LEFT) (RED)

...BEARING, THRUST (LEFT) (RED)

45 500 ₽
7-2

12228-17E00-0B0 ...BEARING, THRUST (LEFT) (BLACK)

...BEARING, THRUST (LEFT) (BLACK)

45 500 ₽
7-3

12228-17E00-0C0 ...BEARING, THRUST (LEFT) (BLUE)

...BEARING, THRUST (LEFT) (BLUE)

45 500 ₽
7-4

12228-17E00-0D0 ...BEARING, THRUST (LEFT) (GREEN)

...BEARING, THRUST (LEFT) (GREEN)

45 500 ₽
7-5

12228-17E00-0E0 ...BEARING, THRUST (LEFT) (YELLOW)

...BEARING, THRUST (LEFT) (YELLOW)

45 500 ₽
7-6

12228-17E00-0F0 ...BEARING, THRUST (LEFT) (WHITE)

...BEARING, THRUST (LEFT) (WHITE)

45 500 ₽
8-1

12229-29G00-0A0 BEARING, CRANKSHAFT (GREEN)

BEARING, CRANKSHAFT (GREEN)

94 900 ₽
8-2

12229-29G00-0B0 BEARING, CRANKSHAFT (BLACK)

BEARING, CRANKSHAFT (BLACK)

94 900 ₽
8-3

12229-29G00-0C0 BEARING, CRANKSHAFT (BROWN)

BEARING, CRANKSHAFT (BROWN)

94 900 ₽
8-4

12229-29G00-0D0 BEARING, CRANKSHAFT (YELLOW)

BEARING, CRANKSHAFT (YELLOW)

94 900 ₽
9

12111-29G00-0F0 PISTON

PISTON

893 100 ₽
10

12140-29G00 RING SET, PISTON

RING SET, PISTON

10 260 ₽
11

12151-39F00 PIN, PISTON

PIN, PISTON

2 600 ₽
12

09381-14001 CIRCLIP

CIRCLIP

250 ₽
13

12731-29G00 SPROCKET, CAM CHAIN

SPROCKET, CAM CHAIN

18 640 ₽
14

99104-BRGKT-027 * NOTE: BEARING KIT

* NOTE: BEARING KIT

130 ₽
