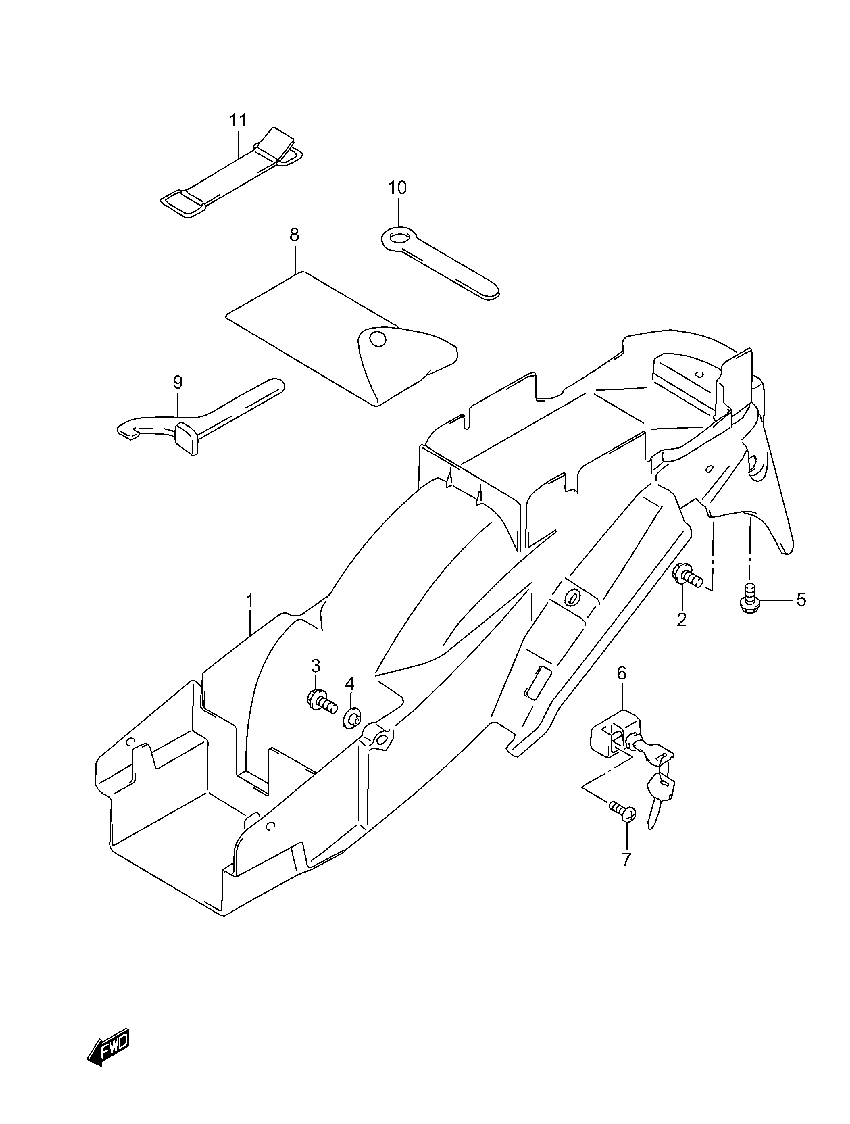

FENDER - REAR для Suzuki GSX600F K4 - 2004 года выпуска
-
№АртикулНазвание
-
163111-08FB0-291 FENDER, REAR (BLACK)FENDER, REAR (BLACK)
-
209113-06001 BOLTBOLT
-
301550-06163 BOLT, FRONT LEFT HANDBOLT, FRONT LEFT HAND
-
409169-06071 WASHERWASHER
-
509116-06165 BOLT, CENTERBOLT, CENTER
-
695700-44820 LOCK SET, HELMETLOCK SET, HELMET
-
709139-06089 SCREWSCREW
-
809800-21036 TOOL ASSYTOOL ASSY
-
909822-00005 CLAMP, WRENCHCLAMP, WRENCH
-
1009816-00102 HEXAGON SPANNER, 3HEXAGON SPANNER, 3
-
1147435-02F01 BAND, TOOLBAND, TOOL
