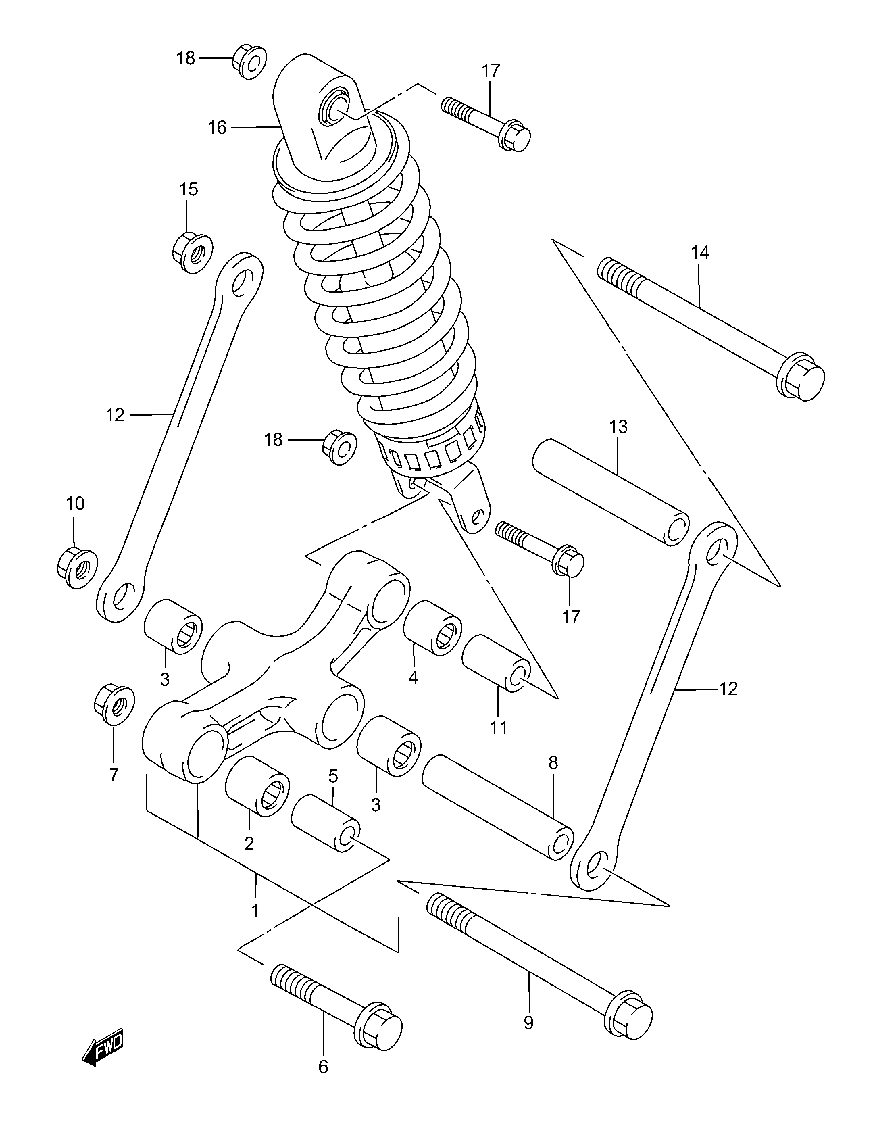

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki GSX600F K4 - 2004 года выпуска
-
№АртикулНазвание
-
162600-08810 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 BEARING, FRONT (20X27X30)BEARING, FRONT (20X27X30)
-
309263-20071 BEARING, CENTER (20X27X23.5)BEARING, CENTER (20X27X23.5)
-
409263-17034 BEARING, REAR (17X24X26)BEARING, REAR (17X24X26)
-
509180-14014 SPACER, FRONT (14X20X34)SPACER, FRONT (14X20X34)
-
609103-14012 BOLT, FRONT (14X62)BOLT, FRONT (14X62)
-
708319-31148 NUTNUT
-
862317-40C10 SPACER, CENTER (14X20X94)SPACER, CENTER (14X20X94)
-
962658-40C10 BOLT, CENTER (14X124)BOLT, CENTER (14X124)
-
1008319-31148 NUTNUT
-
1162684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1262641-08F00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1362317-40C10 SPACER, ROD (14X20X94)SPACER, ROD (14X20X94)
-
1462658-40C10 BOLT, ROD (14X124)BOLT, ROD (14X124)
-
1508319-31148 NUTNUT
-
1662100-08F00 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1709103-10213 BOLT (10X52)BOLT (10X52)
-
1808319-31107 NUTNUT
