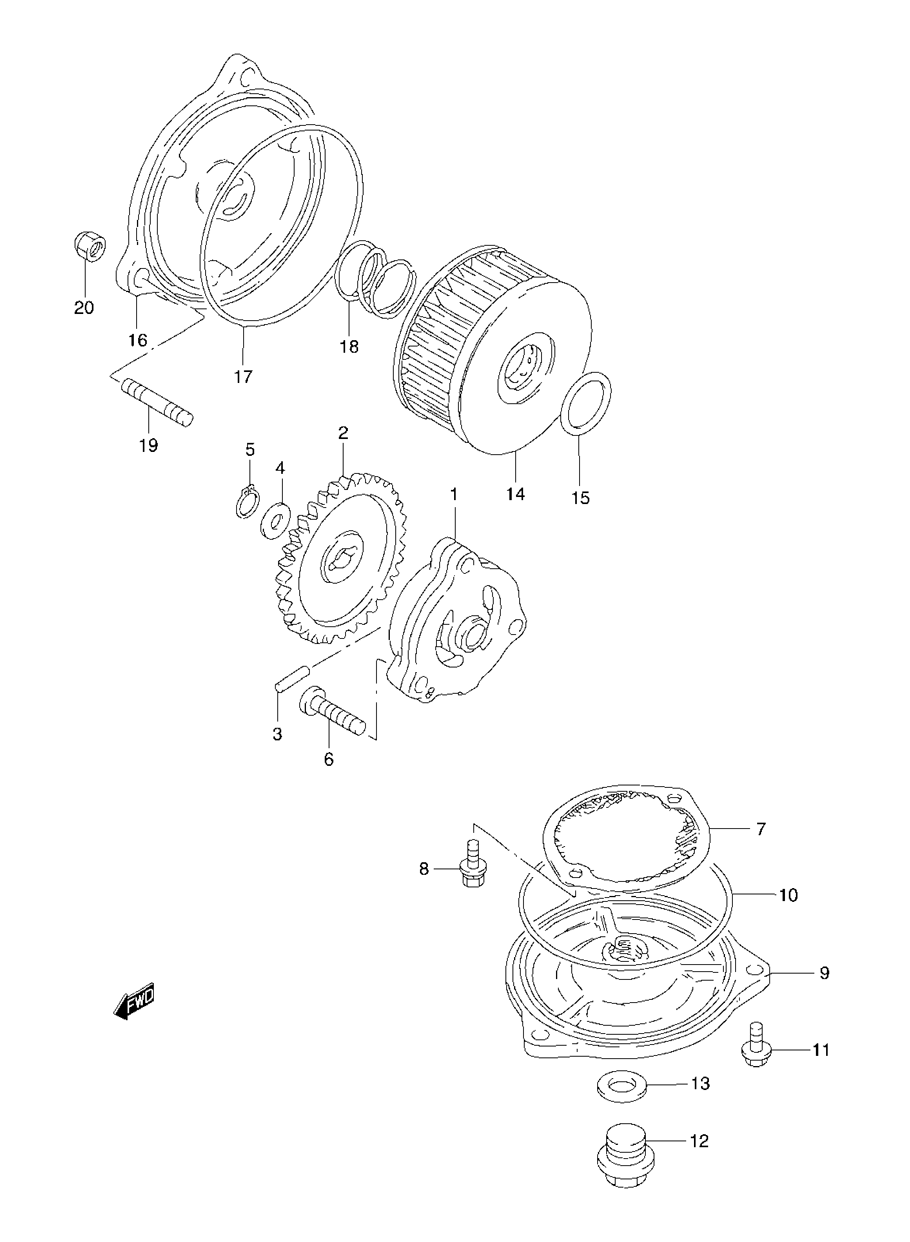

OIL PUMP для Suzuki GZ250 K4 - 2004 года выпуска
-
№АртикулНазвание
-
116400-38200 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
216331-38200 GEAR, OIL PUMP DRIVEN (NT:33)GEAR, OIL PUMP DRIVEN (NT:33)
-
309261-04009 PIN (4X15.8)PIN (4X15.8)
-
409181-10158 SHIMSHIM
-
508331-31106 CIRCLIPCIRCLIP
-
602112-06253 SCREWSCREW
-
716520-37400 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
802112-75123 SCREWSCREW
-
916523-38200 CAP, OIL STRAINERCAP, OIL STRAINER
-
1009280-82001 O RING (D:2.4, ID:82)O RING (D:2.4, ID:82)
-
1101547-06203 BOLTBOLT
-
1209247-14026 PLUGPLUG
-
1309168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
1416510-38240 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1509280-15007 O RING (D:1.4, ID:15.8)O RING (D:1.4, ID:15.8)
-
1616512-38220 CAP, ENGINE OIL FILTERCAP, ENGINE OIL FILTER
-
1709280-72001 O RING (D:2.4, ID:73)O RING (D:2.4, ID:73)
-
1809440-21006 SPRINGSPRING
-
1909108-06128 STUD BOLTSTUD BOLT
-
2008313-10067 NUTNUT
