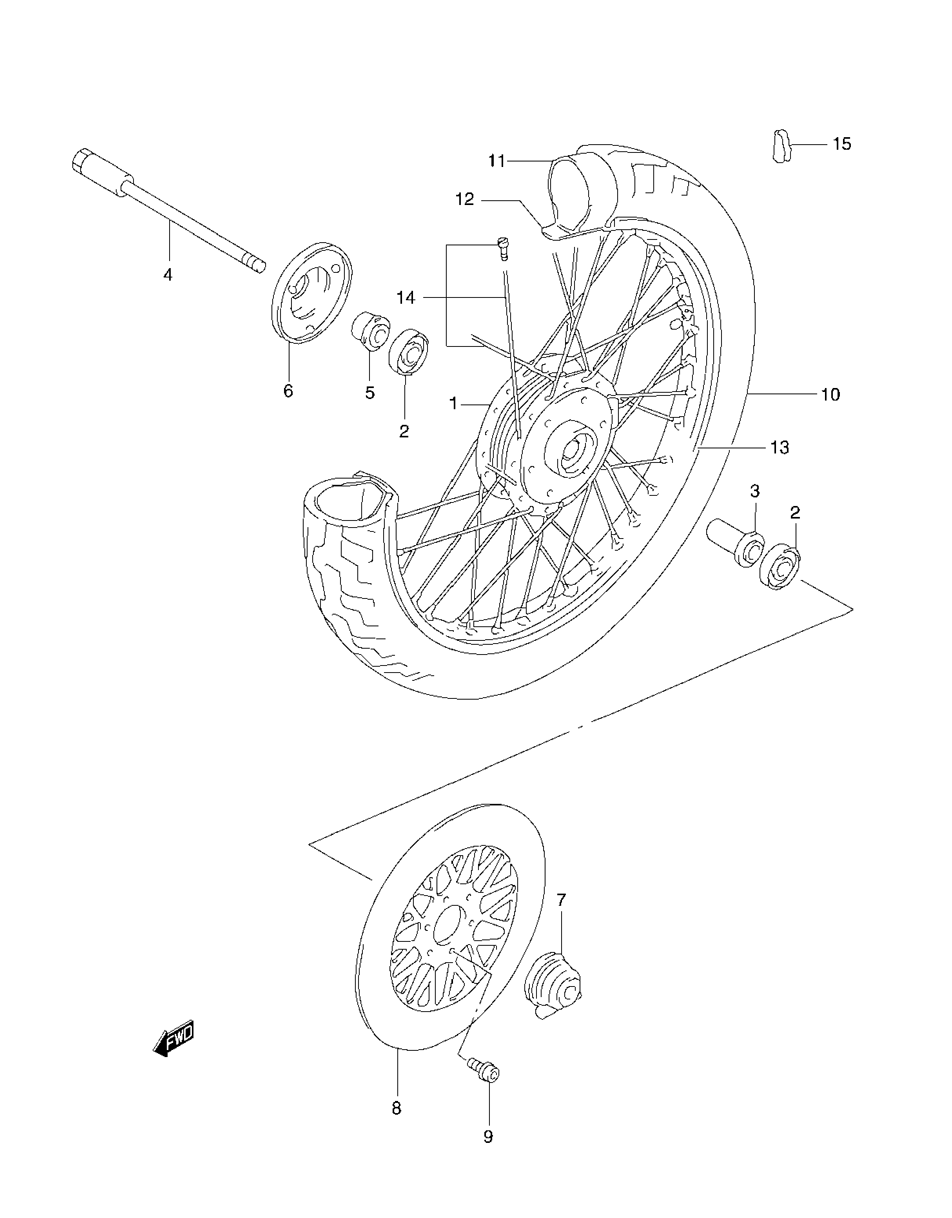

WHEEL - FRONT для Suzuki GZ250 K4 - 2004 года выпуска
-
№АртикулНазвание
-
154111-47021 HUB SET, FRONTHUB SET, FRONT
-
208123-63027 BEARINGBEARING
-
354730-18400 SPACER, BEARINGSPACER, BEARING
-
454711-12FA0 AXLE, FRONTAXLE, FRONT
-
554740-18410 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
654871-45000 COVER, HUB RIGHT HANDCOVER, HUB RIGHT HAND
-
754600-12F00 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
859221-12FA0 DISC, FRONT BRAKE LEFT HANDDISC, FRONT BRAKE LEFT HAND
-
909106-08131 BOLT (8X30)BOLT (8X30)
-
1055100-12FA0 TIRE, FRONT (110/90-16)TIRE, FRONT (110/90-16)
-
1155200-12FA0 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
1255261-12FA0 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
1355311-0AE00 RIM, FRONT WHEEL (16XMT2.50)RIM, FRONT WHEEL (16XMT2.50)
-
1455320-0AE00 SPOKE SET, FRONT WHEELSPOKE SET, FRONT WHEEL
-
1555411-11000 BALANCER (20G)BALANCER (20G)
-
1555412-11000 BALANCER (30G)BALANCER (30G)
