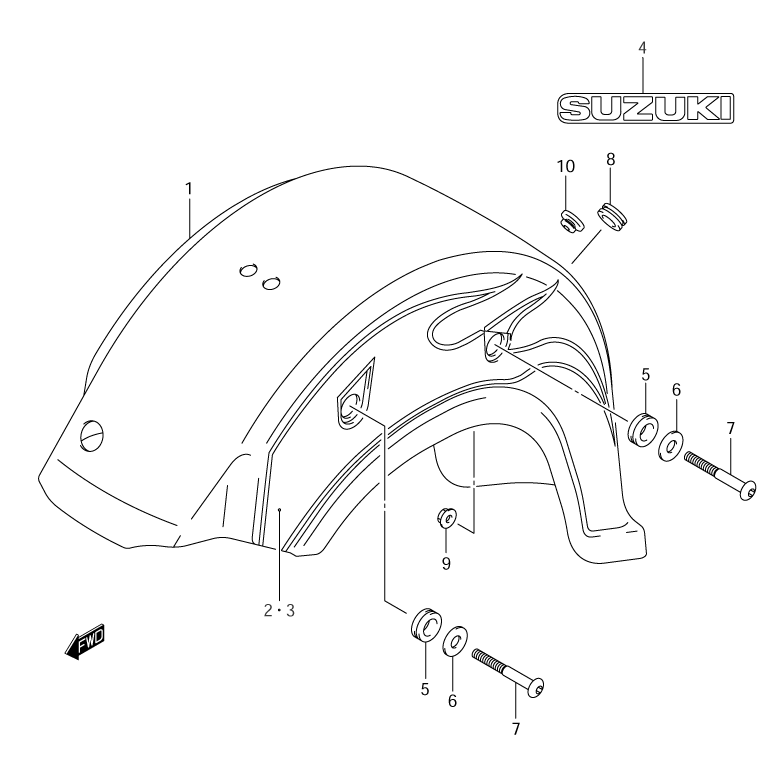

FENDER - REAR для Suzuki VL800Z K4 VOLUSIA LIMITED - 2004 года выпуска
-
№АртикулНазвание
-
163110-41F60-YAU FENDER, REAR (YAU - GRAY)FENDER, REAR (YAU - GRAY)
-
268170-41F30-AWC ...TAPE SET, (RIGHT) (AWC - GRAY/GRAY)...TAPE SET, (RIGHT) (AWC - GRAY/GRAY)
-
368180-41F30-AWC ...TAPE SET, (LEFT) (AWC - GRAY/GRAY)...TAPE SET, (LEFT) (AWC - GRAY/GRAY)
-
468171-26F00-NV8 ...EMBLEM (NV8 - SILVER/GRAY)...EMBLEM (NV8 - SILVER/GRAY)
-
547191-24F00 CUSHIONCUSHION
-
609160-15002 WASHERWASHER
-
763161-41F00 BOLTBOLT
-
809320-15008 CUSHION, PILLION SEATCUSHION, PILLION SEAT
-
908316-10083 NUTNUT
-
1009321-10007 CUSHION, BRACECUSHION, BRACE
