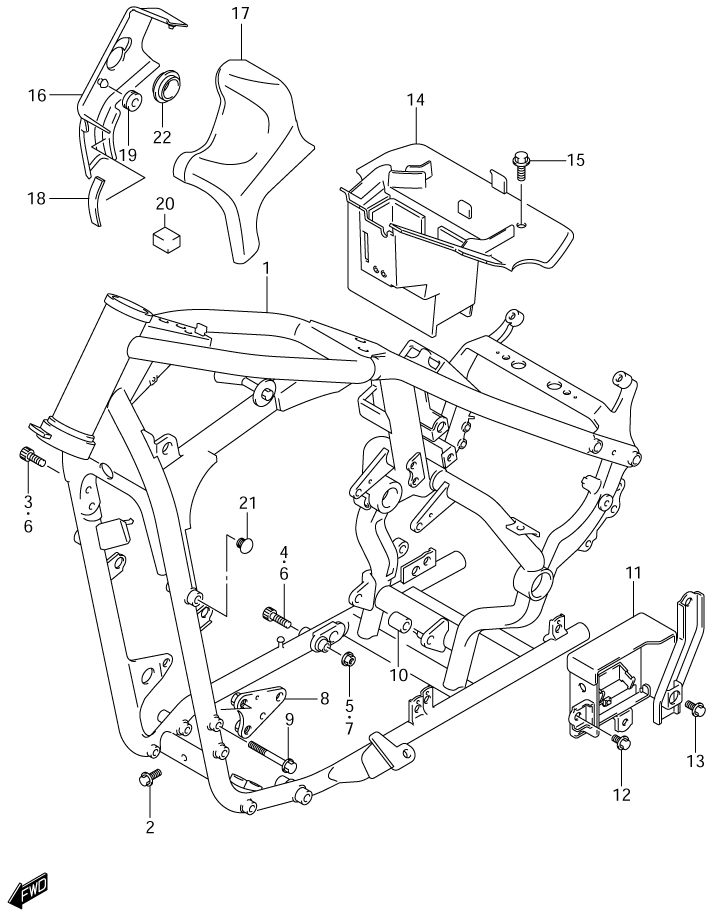

FRAME для Suzuki VL800Z K4 VOLUSIA LIMITED - 2004 года выпуска
-
№АртикулНазвание
-
141100-41F00-019 FRAMEFRAME
-
201550-08163 BOLT, LOWER BRIDGE FRONTBOLT, LOWER BRIDGE FRONT
-
307130-10253 BOLT, UPPERBOLT, UPPER
-
407130-10353 BOLT, LOWERBOLT, LOWER
-
508319-31103 NUTNUT
-
841920-41F00 PLATE, ENGINE MOUNT (LEFT)PLATE, ENGINE MOUNT (LEFT)
-
901580-08653 BOLTBOLT
-
1041941-41F00 SPACER, LOWERSPACER, LOWER
-
1141540-41F00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1201550-06123 BOLT, FRONTBOLT, FRONT
-
1301550-08163 BOLT, HOLDERBOLT, HOLDER
-
1447410-41F00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
1509113-06001 BOLTBOLT
-
1647351-41F00-019 COVER, FRAME HEAD (RIGHT)COVER, FRAME HEAD (RIGHT)
-
1747361-41F00-019 COVER, FRAME HEAD (LEFT)COVER, FRAME HEAD (LEFT)
-
1853145-40A00 CUSHIONCUSHION
-
1909320-08018 CUSHIONCUSHION
-
2017129-16F00 CUSHION, LOWERCUSHION, LOWER
-
2109250-09001 CAP, ENGINE GUARDCAP, ENGINE GUARD
-
2247355-41F00 CAP, HEAD COVER (RIGHT)CAP, HEAD COVER (RIGHT)
