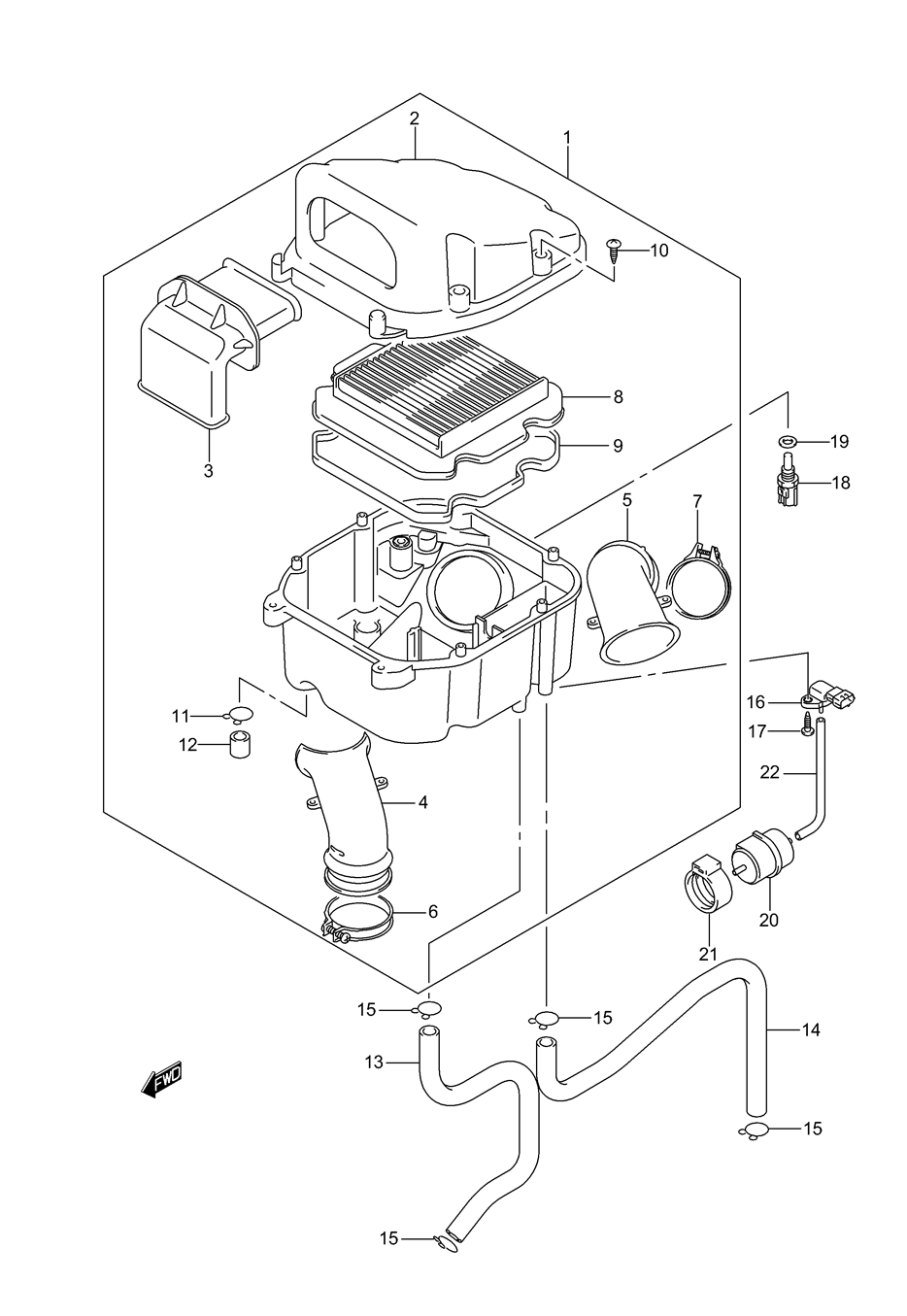

AIR CLEANER для Suzuki DL650 K5 V-STROM - 2005 года выпуска
-
№АртикулНазвание
-
113700-27G00 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213740-27G00 CAP, AIR CLEANERCAP, AIR CLEANER
-
313891-27G00 TUBE, INLETTUBE, INLET
-
413881-27G00 TUBE, OUTLET ATUBE, OUTLET A
-
513882-27G00 TUBE, OUTLET BTUBE, OUTLET B
-
613826-17G00 CLAMP, CUTLET TUBE FRONTCLAMP, CUTLET TUBE FRONT
-
713826-17G00 CLAMP, OUTLET TUBE REARCLAMP, OUTLET TUBE REAR
-
813780-06G00 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
913746-06G00 GASKETGASKET
-
1003142-05163 SCREWSCREW
-
1113878-10G00 PLUGPLUG
-
1209401-14301 CLIPCLIP
-
1313851-27G00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1413852-27G00 TUBE, BREATHER CRANKCASETUBE, BREATHER CRANKCASE
-
1509401-15101 CLIPCLIP
-
1618590-17G00 SENSOR COMP, BOOSTSENSOR COMP, BOOST
-
1703541-05163 SCREWSCREW
-
1813650-57F00 SENSOR AIR TEMPSENSOR AIR TEMP
-
1909168-12017 GASKETGASKET
-
2013715-06G00 CHAMBER, VACUUMCHAMBER, VACUUM
-
2113912-17G00 BAND, VACUUM CHAMBERBAND, VACUUM CHAMBER
-
2209355-35755-600 HOSEHOSE
