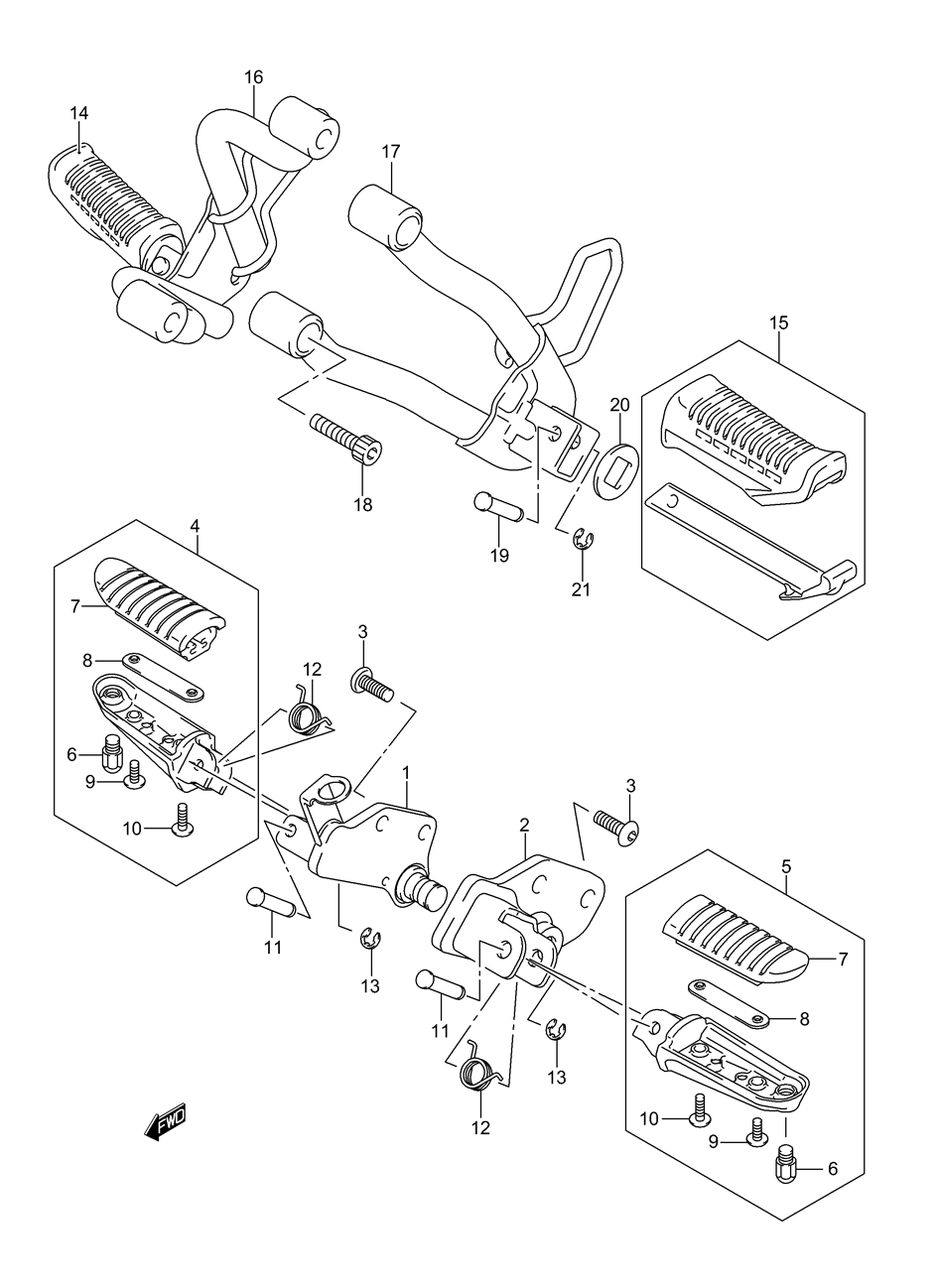

FOOTREST для Suzuki DL650 K5 V-STROM - 2005 года выпуска
-
№АртикулНазвание
-
143510-27G01-YAP BRACKET, FRONT RIGHT HAND (BLACK)BRACKET, FRONT RIGHT HAND (BLACK)
-
243520-27G01-YAP BRACKET, FRONT LEFT HAND (BLACK)BRACKET, FRONT LEFT HAND (BLACK)
-
309106-08150 BOLTBOLT
-
443501-06G01 FOOTREST ASSY, FRONT RIGHT HANDFOOTREST ASSY, FRONT RIGHT HAND
-
543502-06G01 FOOTREST ASSY, FRONT LEFT HANDFOOTREST ASSY, FRONT LEFT HAND
-
643576-07D01 BOLT, BANK SENSORBOLT, BANK SENSOR
-
743551-06G00 RUBBERRUBBER
-
843552-06G00 PLATEPLATE
-
902142-05163 SCREW, OUTERSCREW, OUTER
-
1002142-05203 SCREW, INNERSCREW, INNER
-
1109208-08010 PINPIN
-
1209448-18022 SPRINGSPRING
-
1308332-11063 E RINGE RING
-
1443600-12B00 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
1543700-12B00 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
1643810-27G01-YAP BRACKET, PILLION RIGHT HAND (BLACK)BRACKET, PILLION RIGHT HAND (BLACK)
-
1743820-27G01-YAP BRACKET, PILLION LEFT HAND (BLACK)BRACKET, PILLION LEFT HAND (BLACK)
-
1809106-08074 BOLT, BRACKETBOLT, BRACKET
-
1909208-06005 PINPIN
-
2043631-34A01 PLATE, FOOTREST LEFT HANDPLATE, FOOTREST LEFT HAND
-
2108332-11043 E RINGE RING
