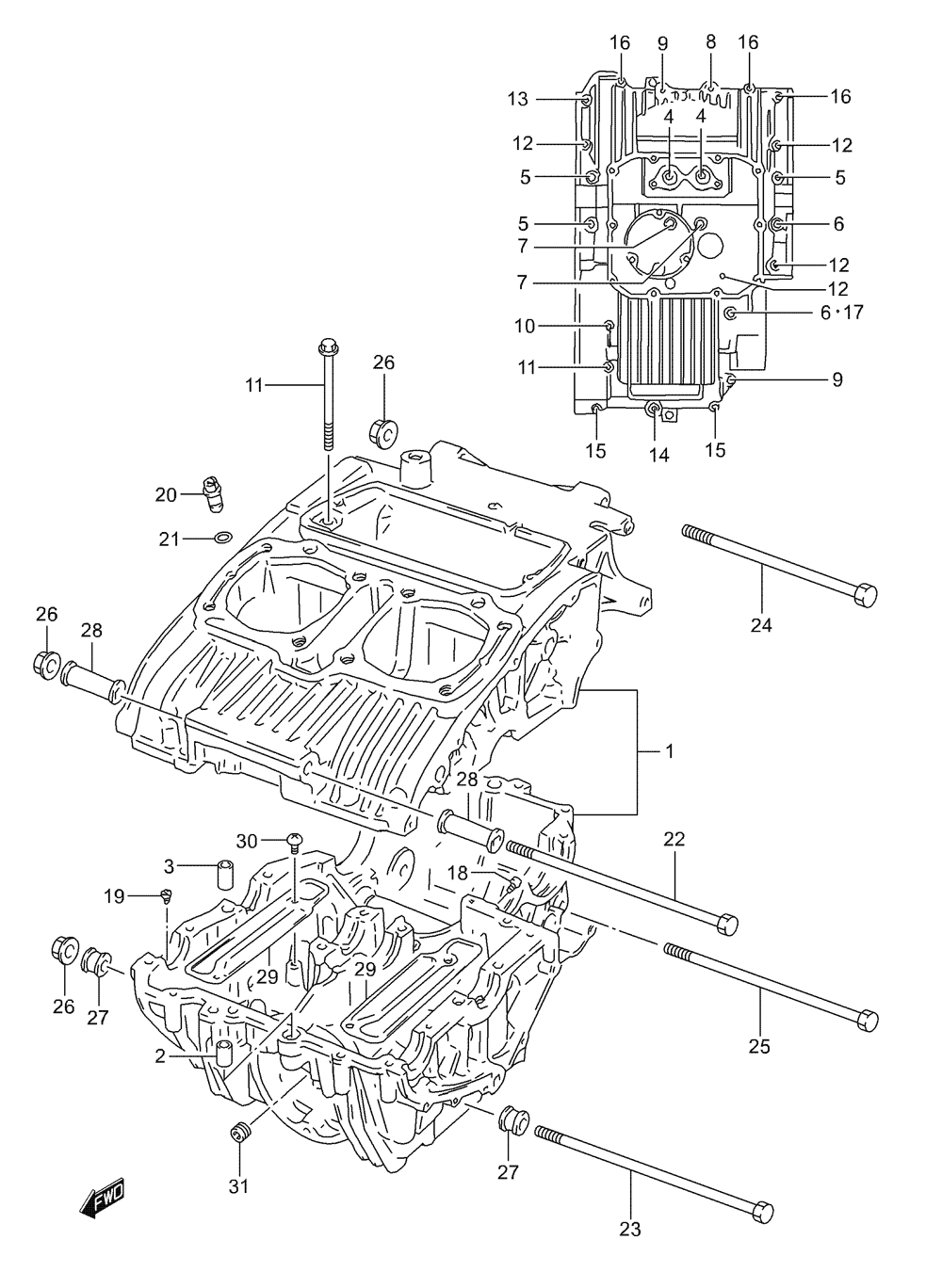

CRANKCASE для Suzuki GS-500F K5 - 2005 года выпуска
-
№АртикулНазвание
-
111301-01810 CRANKCASE SETCRANKCASE SET
-
209206-13004 PINPIN
-
309206-11007 PINPIN
-
407130-08703 BOLT (8X70)BOLT (8X70)
-
509103-08182 BOLT (8X125)BOLT (8X125)
-
609103-08134 BOLT (8X110)BOLT (8X110)
-
709103-08230 BOLT (8X100)BOLT (8X100)
-
801550-08653 BOLT (8X65)BOLT (8X65)
-
901550-08453 BOLT (8X45)BOLT (8X45)
-
1009103-06033 BOLT (6X125)BOLT (6X125)
-
1109103-06067 BOLT (6X105)BOLT (6X105)
-
1201550-06903 BOLT (6X90)BOLT (6X90)
-
1301550-06703 BOLT (6X70)BOLT (6X70)
-
1401550-06653 BOLT (6X65)BOLT (6X65)
-
1501550-06507 BOLT (6X50)BOLT (6X50)
-
1601550-06453 BOLT (6X45)BOLT (6X45)
-
1709168-08016 GASKETGASKET
-
1809493-22010 JET, OIL GALLERY MISSIONJET, OIL GALLERY MISSION
-
1909493-32002 JET, OIL GALLERY BAL SHAFTJET, OIL GALLERY BAL SHAFT
-
2009493-24008 JET, OIL GALLERY CYLINDERJET, OIL GALLERY CYLINDER
-
2109280-03003 O RING (D:1.1, ID:3.1)O RING (D:1.1, ID:3.1)
-
2209103-10137 BOLT (10X255)BOLT (10X255)
-
2309103-10154 BOLT (10X245)BOLT (10X245)
-
2409103-10127 BOLT (10X170)BOLT (10X170)
-
2509103-10278 BOLT (10X160)BOLT (10X160)
-
2609159-10078 NUTNUT
-
2711611-01D10 SPACER (L:16.8)SPACER (L:16.8)
-
2811610-45410 SPACER (L:65)SPACER (L:65)
-
2911521-44100 PLATE, OIL SEPARATORPLATE, OIL SEPARATOR
-
3009125-06110 SCREWSCREW
-
3111532-46E00 JET, OIL GALLERYJET, OIL GALLERY
