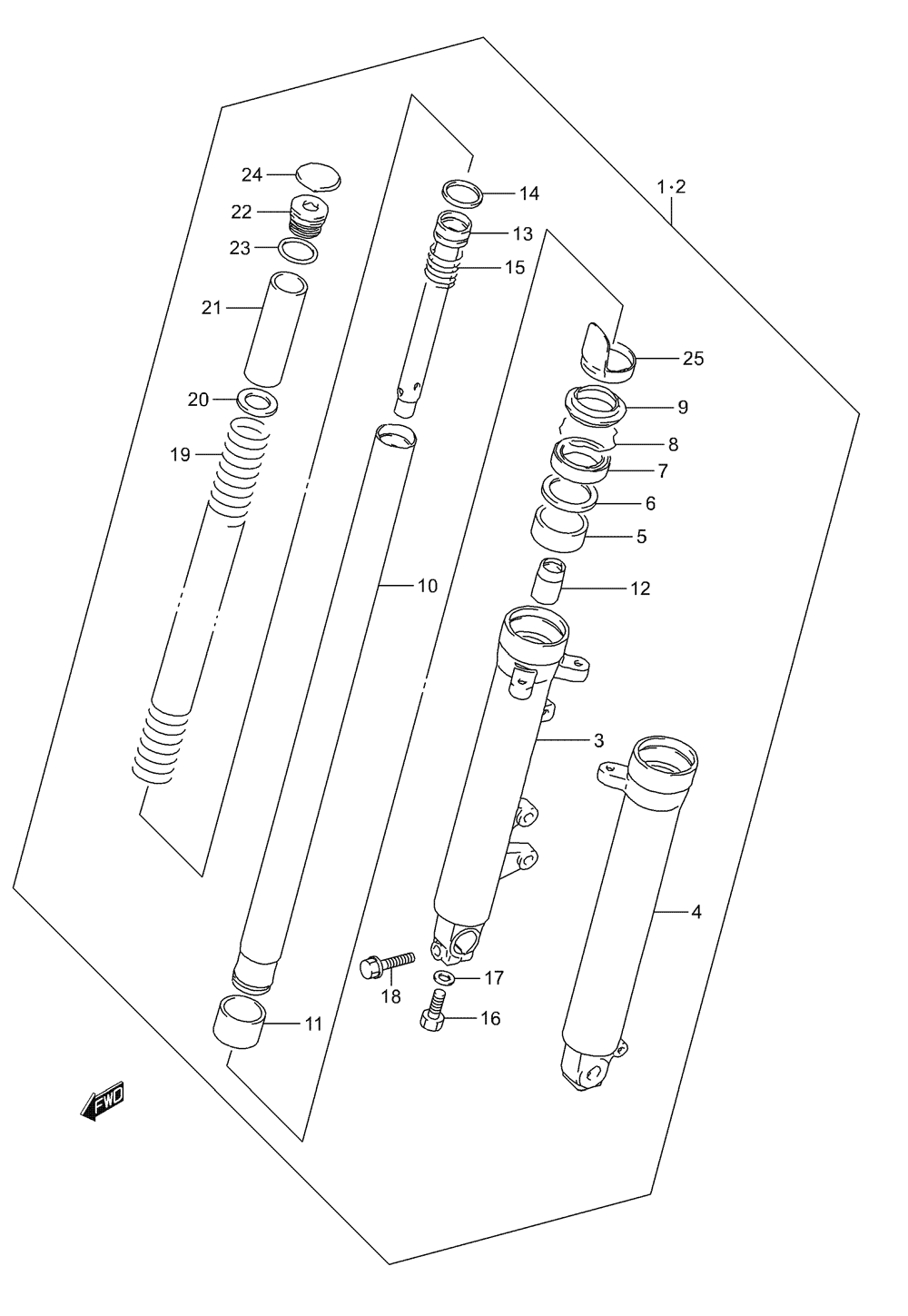

FRONT DAMPER (NOT FOR U.S. MARKET) (B) для Suzuki GS-500F K5 - 2005 года выпуска
-
№АртикулНазвание
-
151103-01DB0 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251104-01DB0 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
351130-01DA0 TUBE, OUTER RIGHT HANDTUBE, OUTER RIGHT HAND
-
451140-01DA0 TUBE, OUTER LEFT HANDTUBE, OUTER LEFT HAND
-
551167-01D00 METAL, SLIDEMETAL, SLIDE
-
651158-49500 WASHERWASHER
-
751153-26F00 SEAL, OILSEAL, OIL
-
851156-40301 RING, SNAPRING, SNAP
-
951173-26F00 SEAL, DUSTSEAL, DUST
-
1051110-01D60 TUBE, INNERTUBE, INNER
-
1151121-01D00 PISTONPISTON
-
1251195-01D00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1351146-01D00 CYLINDERCYLINDER
-
1451196-13A10 RING, PISTONRING, PISTON
-
1551177-01D00 SPRING, REBOUNDSPRING, REBOUND
-
1651147-16510 BOLTBOLT
-
1751148-41310 GASKETGASKET
-
1801550-08407 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
1951171-01D60 SPRING, MAINSPRING, MAIN
-
2051172-01D00 WASHER, SPRINGWASHER, SPRING
-
2151176-01DB0 SPACERSPACER
-
2251192-01D60 WASHER, UPPERWASHER, UPPER
-
2351351-24D00 CAPCAP
-
2451117-38260 O RINGO RING
-
2551201-01DA0 PROTECTORPROTECTOR
