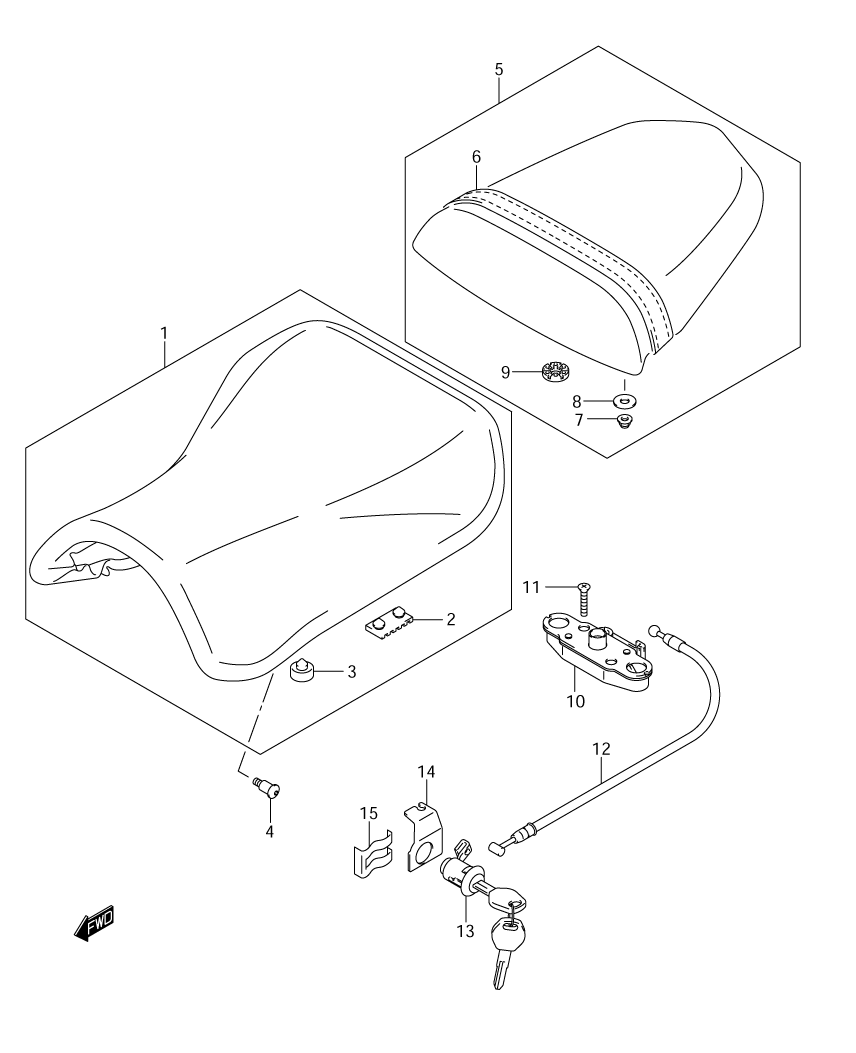

SEAT для Suzuki GSX-R600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
145100-29G00-6BY SEAT ASSY. (6BY - BLACK)SEAT ASSY. (6BY - BLACK)
-
245149-12C00 ...CUSHION...CUSHION
-
309321-08009 ...CUSHION...CUSHION
-
409139-06138 SCREW, SEATSCREW, SEAT
-
545300-29G00-6BY SEAT, PILLION ASSY. (6BY - BLACK)SEAT, PILLION ASSY. (6BY - BLACK)
-
645180-29G00-6BY ...BAND, SEAT ASSY. (6BY - BLACK)...BAND, SEAT ASSY. (6BY - BLACK)
-
708319-31063 ...NUT...NUT
-
809160-06088 ...WASHER...WASHER
-
945213-31300 ...CUSHION...CUSHION
-
1045220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1102122-06303 SCREW, REARSCREW, REAR
-
1245280-13A01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1395700-14810 LOCK, SEAT ASSY.LOCK, SEAT ASSY.
-
1445288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1545289-11F00 PLATE, SEAT LOCK ASSY.PLATE, SEAT LOCK ASSY.
