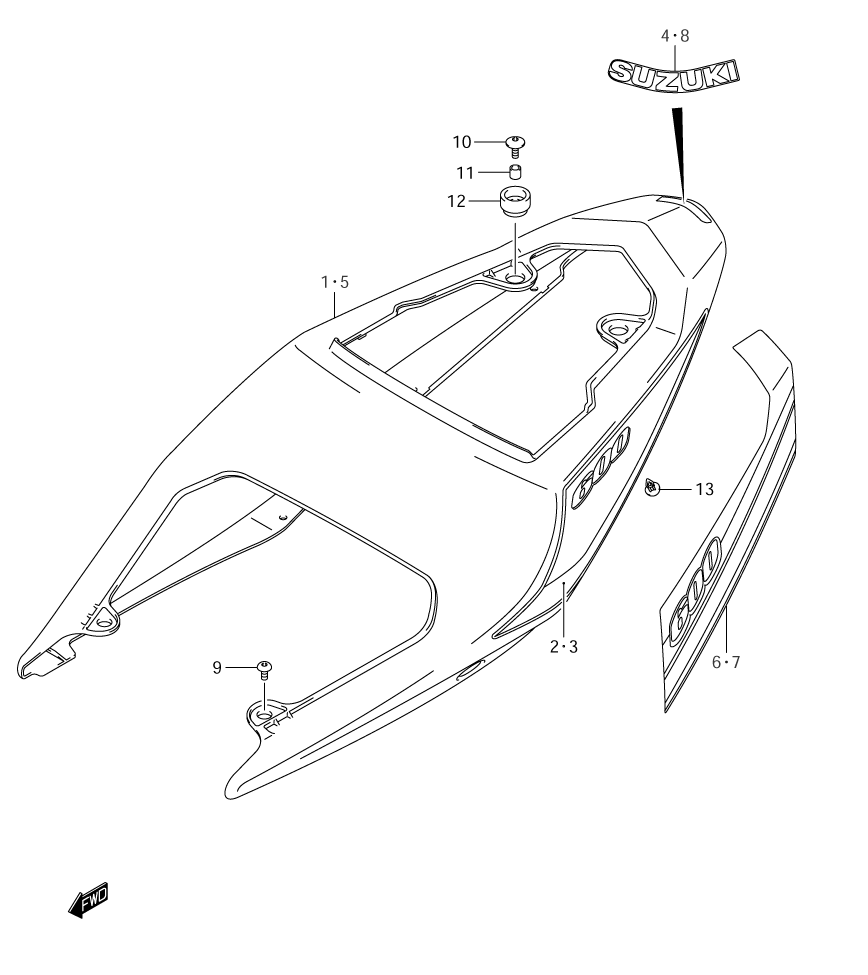

SIDE COVER для Suzuki GSX-R600 K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-147100-29G10-YBD COVER, FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)COVER, FRAME (YBD - WHITE) (FOR LR5 - BLUE/WHITE)
-
1-247100-29G10-YEC COVER, FRAME (YEC - YELLOW)COVER, FRAME (YEC - YELLOW)
-
1-347100-29G10-019 COVER, FRAME (019 - BLACK) (FOR CT5 - SILVER/BLACK)COVER, FRAME (019 - BLACK) (FOR CT5 - SILVER/BLACK)
-
1-447100-29G10-YU7 COVER, FRAME (YU7 - RED) (FOR AVC - RED/BLACK)COVER, FRAME (YU7 - RED) (FOR AVC - RED/BLACK)
-
2-168135-29G10-BPU ...TAPE, (RIGHT) (BPU - WHITE/BLUE/BLUE/ORANGE/BLACK) (FOR LR5 - BLUE/WHITE)...TAPE, (RIGHT) (BPU - WHITE/BLUE/BLUE/ORANGE/BLACK) (FOR LR5 - BLUE/WHITE)
-
2-268135-29G10-BPW ...TAPE, (RIGHT) (BPW - YELLOW/WHITE/BLUE/ORANGE/BLACK) (FOR YEC - YELLOW)...TAPE, (RIGHT) (BPW - YELLOW/WHITE/BLUE/ORANGE/BLACK) (FOR YEC - YELLOW)
-
2-368135-29G10-ML9 ...TAPE, (RIGHT) (ML9 - SILVER/ORANGE/BLACK/WHITE) (FOR CT5 - SILVER/BLACK)...TAPE, (RIGHT) (ML9 - SILVER/ORANGE/BLACK/WHITE) (FOR CT5 - SILVER/BLACK)
-
2-468135-29G10-BPV ...TAPE, (RIGHT) (BPV - RED/BLACK/SILVER/ORANGE) (FOR AVC - RED/BLACK)...TAPE, (RIGHT) (BPV - RED/BLACK/SILVER/ORANGE) (FOR AVC - RED/BLACK)
-
3-168145-29G10-BPU ...TAPE, (LEFT) (BPU - WHITE/BLUE/BLUE/ORANGE/BLACK) (FOR LR5 - BLUE/WHITE)...TAPE, (LEFT) (BPU - WHITE/BLUE/BLUE/ORANGE/BLACK) (FOR LR5 - BLUE/WHITE)
-
3-268145-29G10-BPW ...TAPE, (LEFT) (BPW - YELLOW/WHITE/BLUE/ORANGE/BLACK) (FOR YEC - YELLOW)...TAPE, (LEFT) (BPW - YELLOW/WHITE/BLUE/ORANGE/BLACK) (FOR YEC - YELLOW)
-
3-368145-29G10-ML9 ...TAPE, (LEFT) (ML9 - SILVER/ORANGE/BLACK/WHITE) (FOR CT5 - SILVER/BLACK)...TAPE, (LEFT) (ML9 - SILVER/ORANGE/BLACK/WHITE) (FOR CT5 - SILVER/BLACK)
-
3-468145-29G10-BPV ...TAPE, (LEFT) (BPV - RED/BLACK/SILVER/ORANGE) (FOR AVC - RED/BLACK)...TAPE, (LEFT) (BPV - RED/BLACK/SILVER/ORANGE) (FOR AVC - RED/BLACK)
-
4-168280-04F00-019 ...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE, YEC - YELLOW, AVC - RED/BLACK)...EMBLEM (019 - BLACK) (FOR LR5 - BLUE/WHITE, YEC - YELLOW, AVC - RED/BLACK)
-
4-268280-04F00-YD8 ...EMBLEM (YD8 - SILVER) (FOR CT5 - SILVER/BLACK)...EMBLEM (YD8 - SILVER) (FOR CT5 - SILVER/BLACK)
-
909139-06131 SCREW, FRONTSCREW, FRONT
-
1009139-06030 SCREW, (UPPER)SCREW, (UPPER)
-
1109180-06286 SPACERSPACER
-
1209320-10045 CUSHION, (UPPER)CUSHION, (UPPER)
-
1309409-06314-5PK CLIP (BLACK)CLIP (BLACK)
