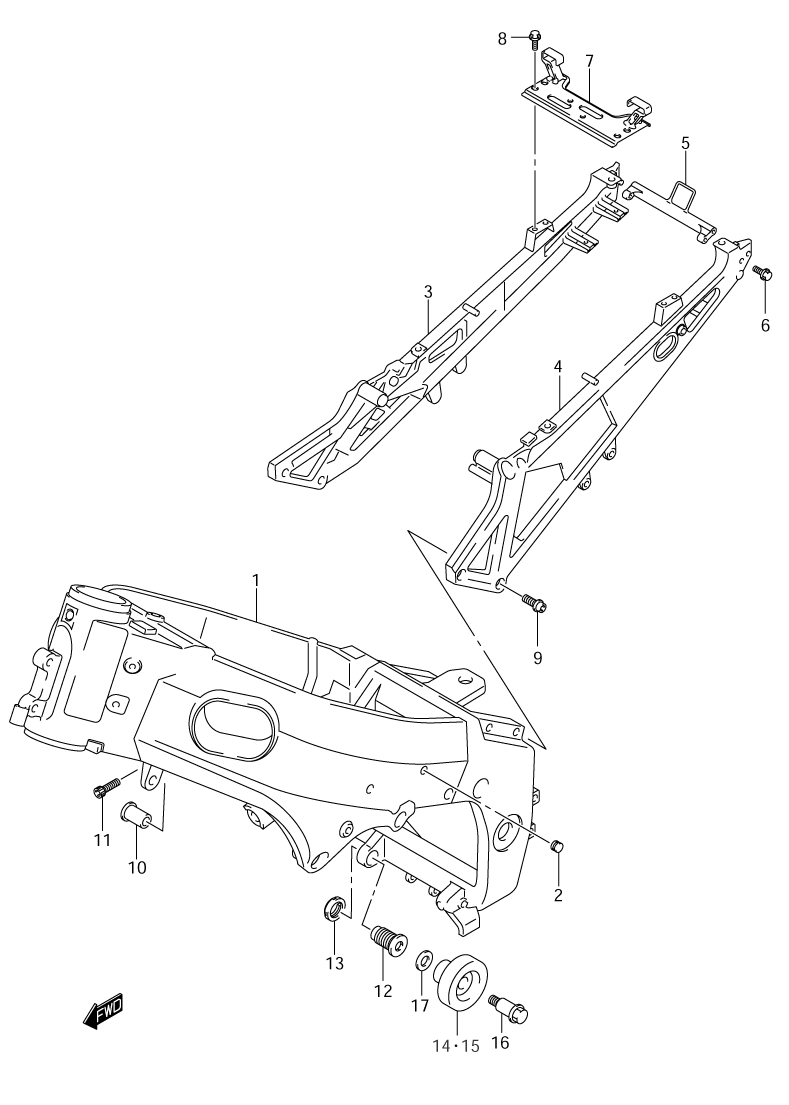

FRAME для Suzuki GSX-R750 K5 - 2005 года выпуска
-
№АртикулНазвание
-
141100-30G00-YAP FRAME (BLACK)FRAME (BLACK)
-
243585-29G00 CAP, TANK RAILCAP, TANK RAIL
-
341211-29G00 RAIL, SEAT (RIGHT)RAIL, SEAT (RIGHT)
-
441221-29G00 RAIL, SEAT (LEFT)RAIL, SEAT (LEFT)
-
541231-29G00 HOOK, PILLION SEATHOOK, PILLION SEAT
-
609103-08288 BOLT, HOOKBOLT, HOOK
-
741770-29G00 BRIDGE, SEAT RAILBRIDGE, SEAT RAIL
-
809103-06083 BOLTBOLT
-
941233-18G00 BOLT, SEAT RAILBOLT, SEAT RAIL
-
1041911-40F01 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1109106-08170 BOLT, SPACERBOLT, SPACER
-
1241921-35F00 BOLT, CRANKCASE ADJUSTBOLT, CRANKCASE ADJUST
-
1341922-18G00 NUT, CRANK CASE ADJUSTNUT, CRANK CASE ADJUST
