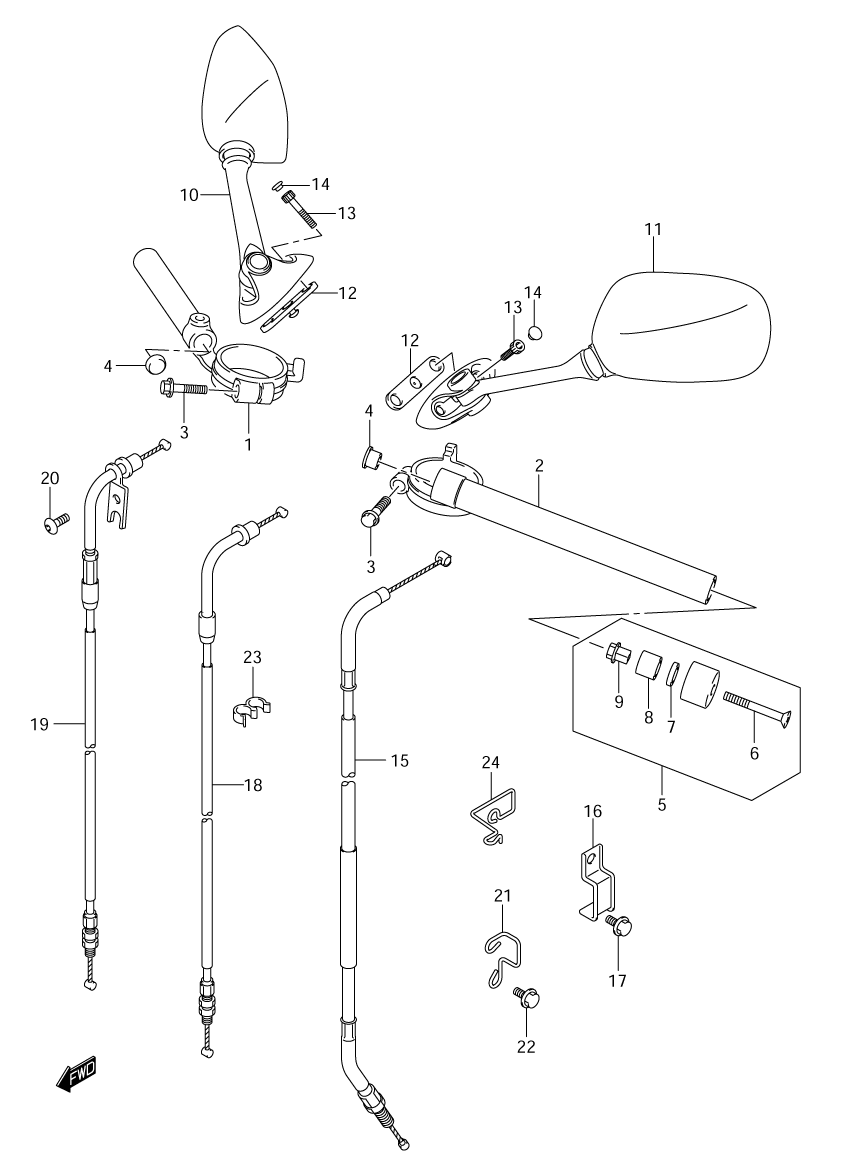

HANDLEBAR W/ CABLES - MIRRORS для Suzuki GSX-R750 K5 - 2005 года выпуска
-
№АртикулНазвание
-
156111-29G00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
256151-29G00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
356123-35F00 BOLT, HANDLEBARBOLT, HANDLEBAR
-
456131-29G00 CAPCAP
-
556200-14830 BALANCER SET, HANDLEBARBALANCER SET, HANDLEBAR
-
602122-06503 ...SCREW...SCREW
-
709160-06131 ...WASHER...WASHER
-
856272-10G00 ...EXPANDER...EXPANDER
-
956273-10G00 ...NUT...NUT
-
1056500-29G00 MIRROR ASSY., VIEW (REAR/RIGHT)MIRROR ASSY., VIEW (REAR/RIGHT)
-
1156600-29G00 MIRROR ASSY., VIEW (REAR/LEFT)MIRROR ASSY., VIEW (REAR/LEFT)
-
1294576-24F00 CUSHIONCUSHION
-
1307130-06303 BOLTBOLT
-
1409250-05009 CAPCAP
-
1558200-29G00 CABLE ASSY., CLUTCHCABLE ASSY., CLUTCH
-
1658621-06G00 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
-
1701550-06123 BOLTBOLT
-
1858300-29G00 CABLE ASSY., THROTTLE NO.1CABLE ASSY., THROTTLE NO.1
-
1958300-29G10 CABLE ASSY., THROTTLE NO.2CABLE ASSY., THROTTLE NO.2
-
20-202142-05083 SCREW, CASESCREW, CASE
-
2158621-29G00 GUIDE, THROTTLE CABLE NO.1GUIDE, THROTTLE CABLE NO.1
-
2201550-06123 BOLTBOLT
-
2309408-00033 CLIPCLIP
-
2458631-29G00 GUIDE, THROTTLE CABLE NO.2GUIDE, THROTTLE CABLE NO.2
