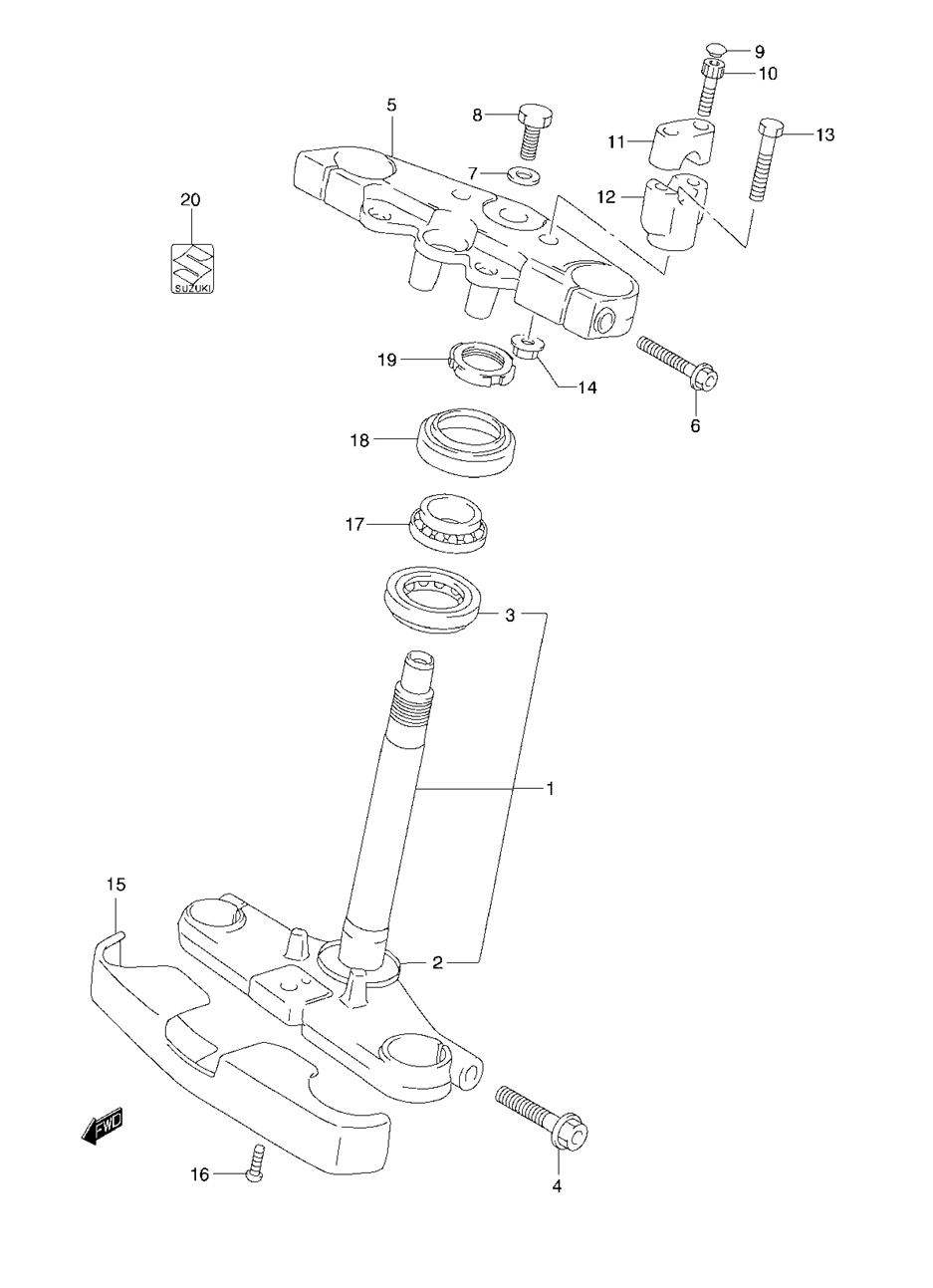

STEERING STEM для Suzuki GZ250 K5 - 2005 года выпуска
-
№АртикулНазвание
-
151410-12FA0 STEM, STEERINGSTEM, STEERING
-
251644-12C00 SEAL, LOWERSEAL, LOWER
-
309267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
401550-10407 BOLT (10X40)BOLT (10X40)
-
551311-12FA0 HEAD, STEERING STEMHEAD, STEERING STEM
-
601550-08457 BOLT (8X45)BOLT (8X45)
-
751356-12FA0 WASHERWASHER
-
851352-02B00 BOLTBOLT
-
909250-06011 CAPCAP
-
1007130-08257 BOLT (8X25)BOLT (8X25)
-
1156211-12FA0 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
1256221-12FA0 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
1351451-12FA0 BOLT, HOLDERBOLT, HOLDER
-
1408319-31108 NUTNUT
-
1551871C12F00J000 COVER, FRONT FORK UNDERCOVER, FRONT FORK UNDER
-
1609139-06083 SCREW (6X16)SCREW (6X16)
-
1709267-25009 BEARING (25X47X15)BEARING (25X47X15)
-
1851643-40502 SEAL, DUST UPPERSEAL, DUST UPPER
-
1951631-28000 NUT, STEMNUT, STEM
-
2068281-35F00 EMBLEM ''S''EMBLEM ''S''
