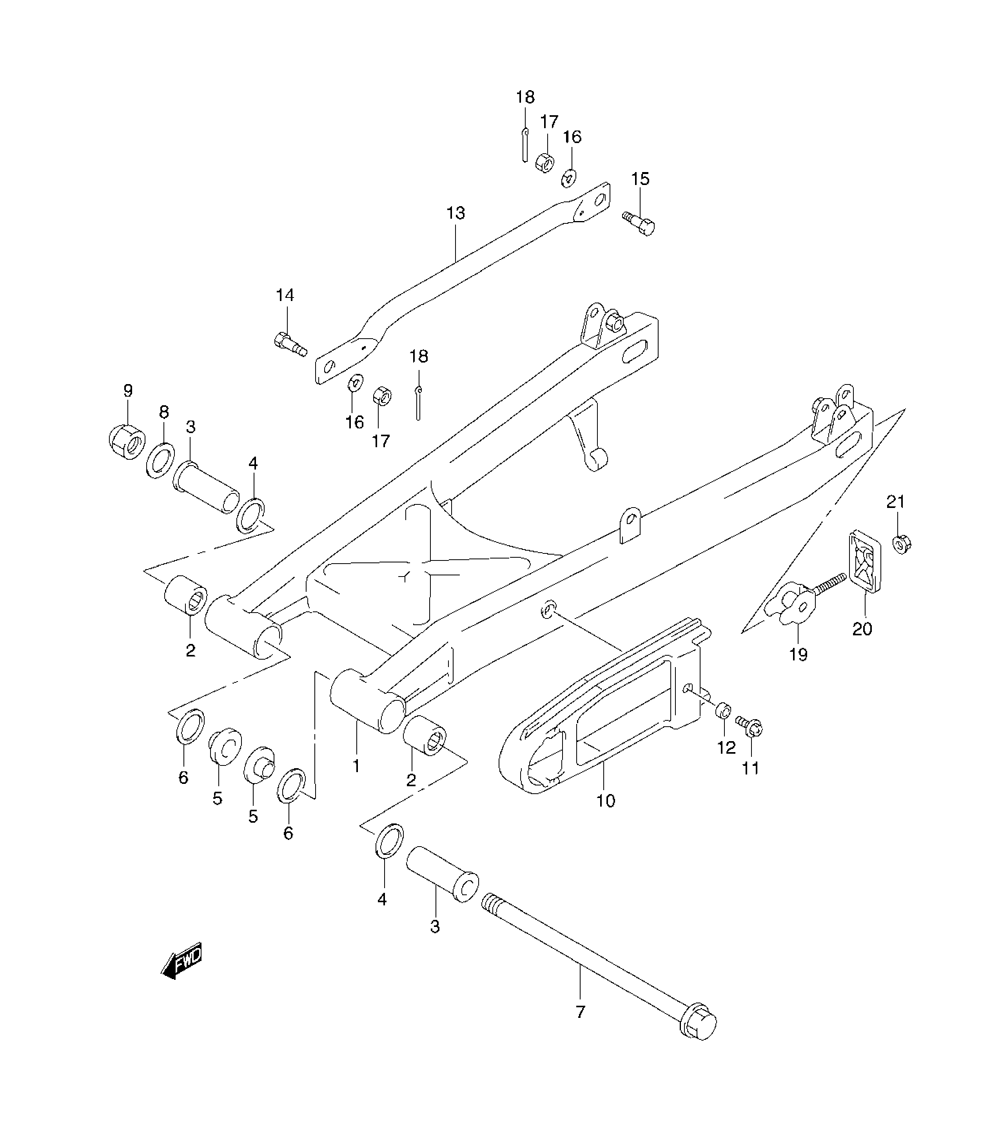

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GZ250 K5 - 2005 года выпуска
-
№АртикулНазвание
-
161000-13FA0-EE3 SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209263-20041 BEARING (20X27X20)BEARING (20X27X20)
-
361251C13F00J000 SPACER, PIVOT OUTERSPACER, PIVOT OUTER
-
409286-20001 SEAL, OIL (20X27X5)SEAL, OIL (20X27X5)
-
561252C13F01J000 SPACER, PIVOT INNERSPACER, PIVOT INNER
-
609286-20001 SEAL, OIL (20X27X5)SEAL, OIL (20X27X5)
-
761211-38301 SHAFT, PIVOTSHAFT, PIVOT
-
808322-01143 WASHERWASHER
-
908319-21148 NUTNUT
-
1061273-12F00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109116-06111 BOLT (6X20)BOLT (6X20)
-
1209180-06255 SPACER (6.5X9X3.8)SPACER (6.5X9X3.8)
-
1364311-26F00-019 TORQUE LINK, REAR (BLACK)TORQUE LINK, REAR (BLACK)
-
1409111-08012 BOLT, FRONT (8X22.5)BOLT, FRONT (8X22.5)
-
1509111-08013 BOLT, REAR (8X26.5)BOLT, REAR (8X26.5)
-
1609162-08008 WASHER, LOCKWASHER, LOCK
-
1709140-08008 NUTNUT
-
1804111-20208 PIN, COTTERPIN, COTTER
-
1961410-12F00 ADJUSTER, CHAINADJUSTER, CHAIN
-
2061421-38200 PLATE, CHAIN ADJUSTERPLATE, CHAIN ADJUSTER
-
2108319-31088 NUTNUT
