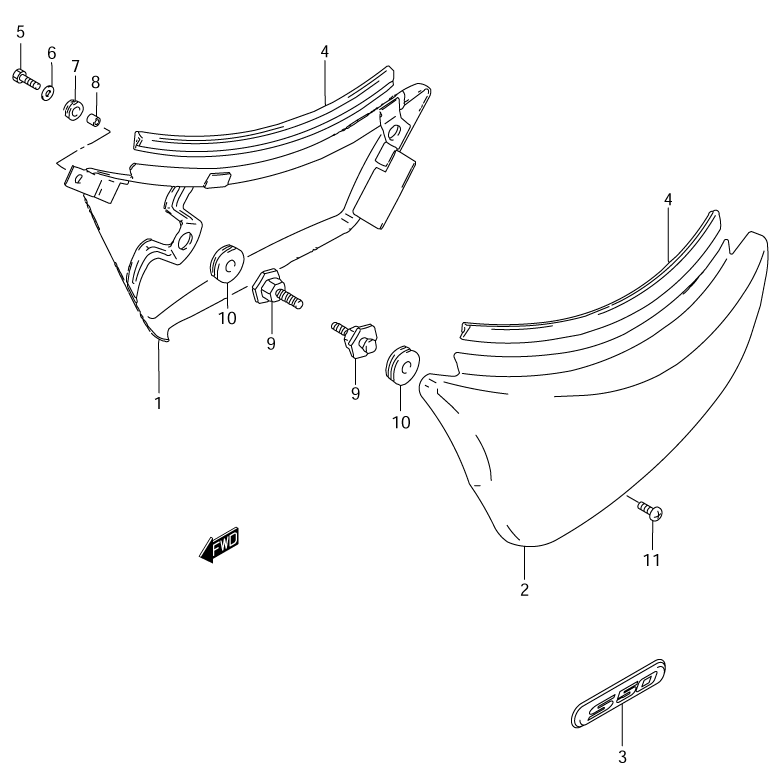

SIDE COVER для Suzuki VS800GL K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-147100-39AA0-YAY COVER, FRAME (RIGHT) (YAY - BLACK)COVER, FRAME (RIGHT) (YAY - BLACK)
-
1-247100-39AA0-YU8 COVER, FRAME (RIGHT) (YU8 - GRAY)COVER, FRAME (RIGHT) (YU8 - GRAY)
-
2-147200-39AA0-YAY COVER, FRAME (LEFT) (YAY - BLACK)COVER, FRAME (LEFT) (YAY - BLACK)
-
2-247200-39AA0-YU8 COVER, FRAME (LEFT) (YU8 - GRAY)COVER, FRAME (LEFT) (YU8 - GRAY)
-
368131-39AA0 ...EMBLEM...EMBLEM
-
468241-04X50-300 MOLDINGMOLDING
-
501550-06167 BOLT, (RIGHT)BOLT, (RIGHT)
-
609160-06084 WASHERWASHER
-
709320-06017 CUSHIONCUSHION
-
809180-06246 SPACERSPACER
-
947250-38A01 BOSS, FRAME COVERBOSS, FRAME COVER
-
1009320-08013 CUSHIONCUSHION
-
1102142-06103 SCREW, (LEFT)SCREW, (LEFT)
