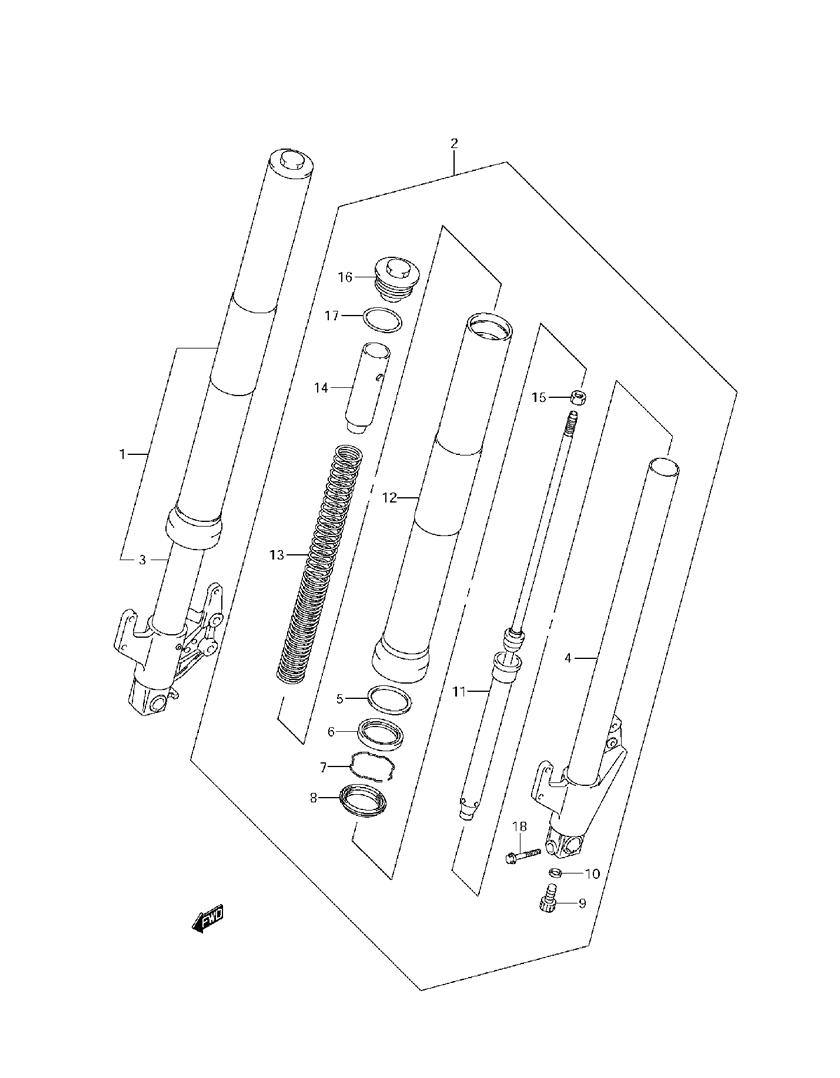

SUSPENSION - FRONT FORK для Suzuki VZ800 K5 - 2005 года выпуска
-
№АртикулНазвание
-
151103-39G00 DAMPER ASSY, FRONT FORK RIGHT HAND (INCLUDES ITEM(S) 3 - 18)DAMPER ASSY, FRONT FORK RIGHT HAND (INCLUDES ITEM(S) 3 - 18)
-
251104-39G00 DAMPER ASSY, FRONT FORK LEFT HAND (INCLUDES ITEM(S) 3 - 18)DAMPER ASSY, FRONT FORK LEFT HAND (INCLUDES ITEM(S) 3 - 18)
-
351110-39G00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-39G00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551158-05A00 WASHERWASHER
-
651153-10G50 SEAL, OILSEAL, OIL
-
751156-49440 RINGRING
-
851173-14F00 SEAL, DUSTSEAL, DUST
-
951147-40300 BOLTBOLT
-
1051148-40300 GASKETGASKET
-
1151146-39G00 CYLINDERCYLINDER
-
1251130-39G00 TUBE, OUTERTUBE, OUTER
-
1351171-39G00 SPRING, FRONTSPRING, FRONT
-
1451176-40F30 SPACER, SPRINGSPACER, SPRING
-
1551352-13A60 NUT, RODNUT, ROD
-
1651351-39G00 CAPCAP
-
1762278-14100 O RINGO RING
-
1851166-10G00 BOLT, LEFT HANDBOLT, LEFT HAND
