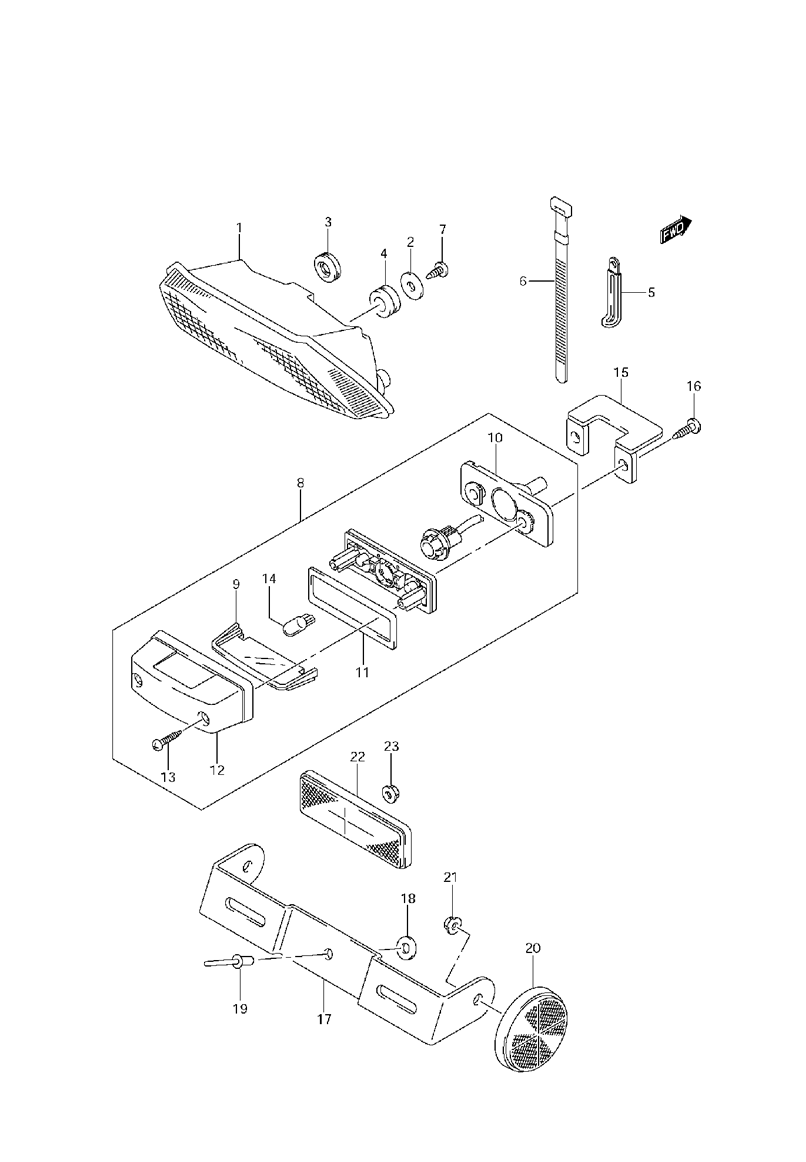

TAILLIGHT ASSY. для Suzuki VZ800 K5 - 2005 года выпуска
-
№АртикулНазвание
-
135710-39G30 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
209160-05501 WASHER, REAR COMBWASHER, REAR COMB
-
309308-10017 GROMMET, RR COMBGROMMET, RR COMB
-
409320-10049 CUSHION, RR COMBCUSHION, RR COMB
-
509404-06429 CLAMP (L:45)CLAMP (L:45)
-
609407-14403 CLAMP (L:125)CLAMP (L:125)
-
703541-0512B SCREW, RR, COMBSCREW, RR, COMB
-
835910-16G50 LAMP ASSY, LICENSE (INCLUDES ITEM(S) 9 - 14)LAMP ASSY, LICENSE (INCLUDES ITEM(S) 9 - 14)
-
935912-16G00 LENSLENS
-
1035916-16G10 CUSHIONCUSHION
-
1135913-16G00 GASKETGASKET
-
1235917-16G00 COVERCOVER
-
1303211-0416A SCREWSCREW
-
1409471-12216 BULB (12V5W)BULB (12V5W)
-
1535926-16G00 BRACKET, LICENSE LAMPBRACKET, LICENSE LAMP
-
1603541-0520B SCREWSCREW
-
1735927-39G30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1809160-05045 WASHER (5.5X18X1.0)WASHER (5.5X18X1.0)
-
1909229-04050 RIVET, LICENSE PLATERIVET, LICENSE PLATE
-
2035970-14A20 REFLECTOR ASSY, RR SIDEREFLECTOR ASSY, RR SIDE
-
2108316-1005B NUTNUT
-
2235970-07F01 REFLECTOR ASSY, RR SIDEREFLECTOR ASSY, RR SIDE
-
2308316-1005B NUTNUT
