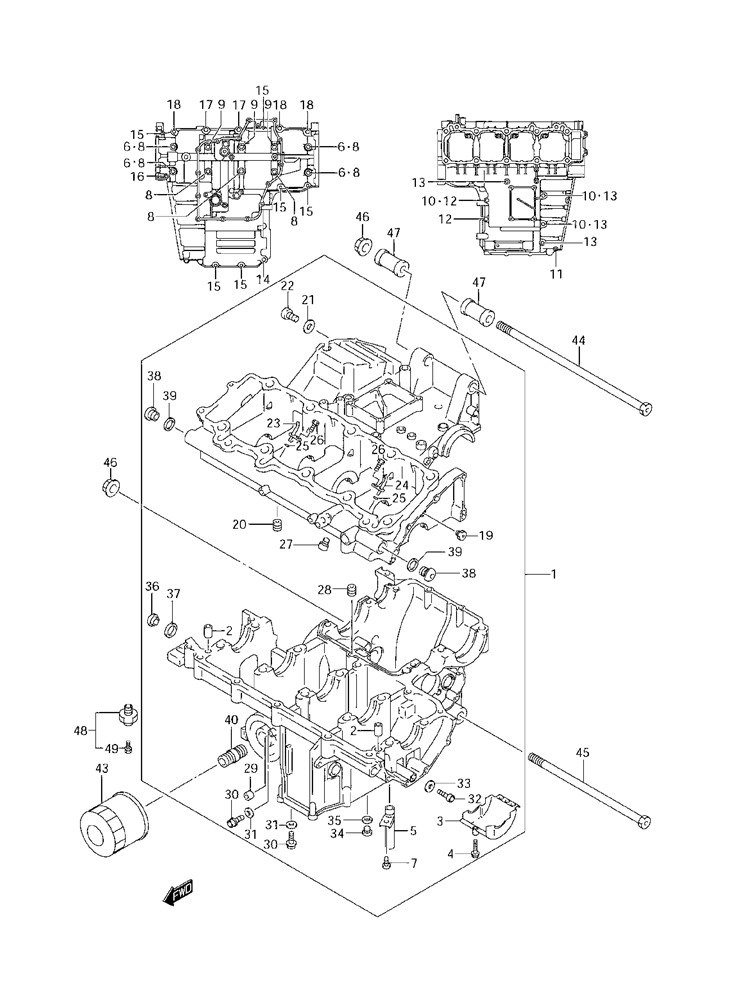

CRANKCASE для Suzuki GSX-1300R K6 LTD - 2006 года выпуска
-
№АртикулНазвание
-
111302-24811 CRANKCASE SETCRANKCASE SET
-
211319-33E50 PINPIN
-
311323-24F00 SEPARATOR, OILSEPARATOR, OIL
-
401547-06253 BOLTBOLT
-
511328-24F00 UNION, BREATHER OILUNION, BREATHER OIL
-
609168-10031 GASKET, CRANKCASE BOLT (10.2X20X2.3)GASKET, CRANKCASE BOLT (10.2X20X2.3)
-
701547-06123 BOLT, BREATHER UNIONBOLT, BREATHER UNION
-
809103-09008 BOLT (9X95)BOLT (9X95)
-
909103-09010 BOLT (9X115)BOLT (9X115)
-
1009168-08016 GASKETGASKET
-
1101547-06503 BOLTBOLT
-
1201550-08653 BOLTBOLT
-
1301550-08803 BOLTBOLT
-
1401550-10603 BOLTBOLT
-
1501547-06403 BOLTBOLT
-
1601547-06603 BOLTBOLT
-
1709103-08155 BOLT (8X50)BOLT (8X50)
-
1809103-08355 BOLT (8X60)BOLT (8X60)
-
1911393-33E01 JET, MAGNETO COOLINGJET, MAGNETO COOLING
-
2009493-20012 JET, T/M COOLINGJET, T/M COOLING
-
2109168-06023 GASKET, T/M COOLINGGASKET, T/M COOLING
-
2207120-06123 PLUG, T/M COOLINGPLUG, T/M COOLING
-
2311390-34E00 JET, PISTON COOLING RIGHT HANDJET, PISTON COOLING RIGHT HAND
-
2411390-34E10 JET, PISTON COOLING LEFT HANDJET, PISTON COOLING LEFT HAND
-
2509280-04004 O RINGO RING
-
2609106-06075 BOLTBOLT
-
2709106-06076 PLUG, PISTON JET OIL GALLERYPLUG, PISTON JET OIL GALLERY
-
2809493-36006 JET, T/M OIL 180JET, T/M OIL 180
-
2911532-46E00 JET, OIL GALLERYJET, OIL GALLERY
-
3007120-06123 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3109168-06023 GASKETGASKET
-
3207130-08163 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3309168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
3409248-10010 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
3509168-10002 GASKET (9.9X14X0.3)GASKET (9.9X14X0.3)
-
3609248-16012 PLUG, OIL GALLERY (16X8)PLUG, OIL GALLERY (16X8)
-
3709168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
3809248-14005 PLUG (14X12)PLUG (14X12)
-
3909168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
4016591-06B00 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
-
4112228-24F00-0D0 BEARING, CRANK THRUST (GREEN)BEARING, CRANK THRUST (GREEN)
-
4212228-24F00-0A0 BEARING, CRANK THRUST (RED)BEARING, CRANK THRUST (RED)
-
4212228-24F00-0B0 BEARING, CRANK THRUST (BLACK)BEARING, CRANK THRUST (BLACK)
-
4212228-24F00-0C0 BEARING, CRANK THRUST (BLUE)BEARING, CRANK THRUST (BLUE)
-
4212228-24F00-0D0 BEARING, CRANK THRUST (GREEN)BEARING, CRANK THRUST (GREEN)
-
4212228-24F00-0E0 BEARING, CRANK THRUST (YELLOW)BEARING, CRANK THRUST (YELLOW)
-
4212228-24F00-0F0 BEARING, CRANK THRUST (WHITE)BEARING, CRANK THRUST (WHITE)
-
4316510-03G00-X07 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
4409103-12066 BOLT (12X320)BOLT (12X320)
-
4509103-12067 BOLT (12X240)BOLT (12X240)
-
4609159-12054 NUTNUT
-
4711611-24F00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
4837820-33D10 SWITCH ASSY, OIL PRESSURESWITCH ASSY, OIL PRESSURE
-
4937822-33D00 BOLTBOLT
