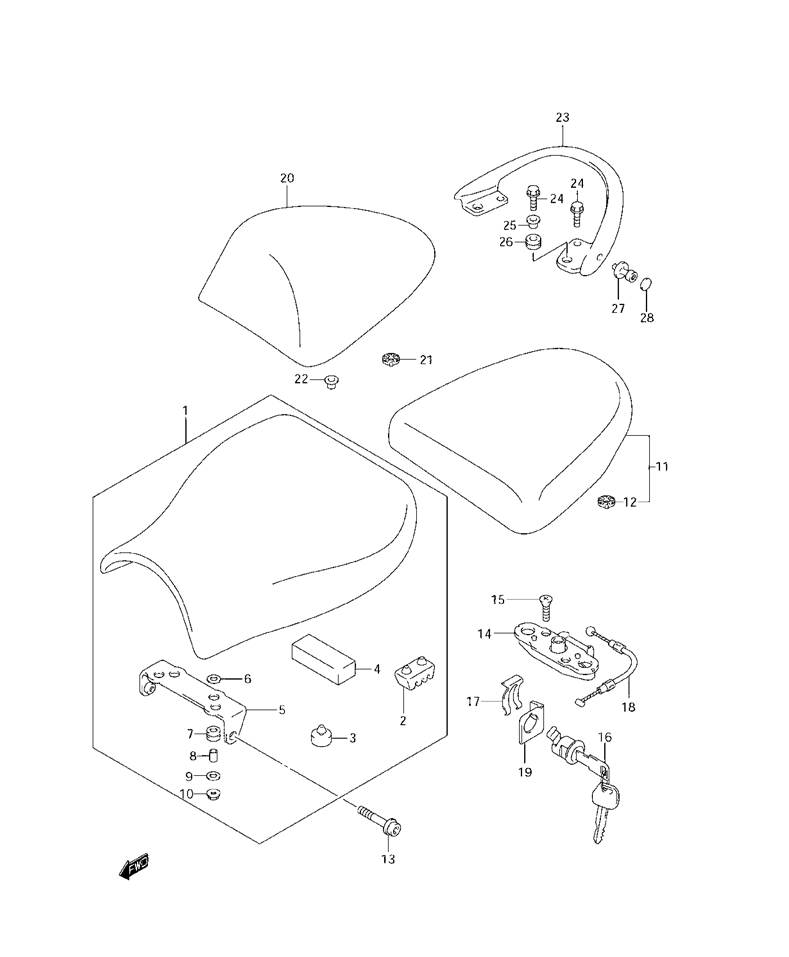

SEAT для Suzuki GSX-1300R K6 LTD - 2006 года выпуска
-
№АртикулНазвание
-
145100-24F10-W05 SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
245149-45330 CUSHIONCUSHION
-
309321-10011 CUSHIONCUSHION
-
445117-47D00 CUSHIONCUSHION
-
545116-24F10 BRACKET, SEAT FRONT RIGHT HANDBRACKET, SEAT FRONT RIGHT HAND
-
609160-06066 WASHERWASHER
-
745149-24F01 CUSHION (10X20X10)CUSHION (10X20X10)
-
809180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
945117-24F00 WASHER, SEATWASHER, SEAT
-
1008316-10063 NUTNUT
-
1145300-24F10-W05 SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
1245213-31300 CUSHIONCUSHION
-
1345191-24F00 BOLT, SEAT FRONT (6X40)BOLT, SEAT FRONT (6X40)
-
1445220-20A01 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
1502122-06303 SCREWSCREW
-
1695700-14810 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1745289-11F00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1845280-24F00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1945288-14F00 GUIDE, CABLEGUIDE, CABLE
-
2045550-24F10-YAY BOX, SEAT TAIL (BLACK, YAY FOR CZW)BOX, SEAT TAIL (BLACK, YAY FOR CZW)
-
2045550-24F10-YHG BOX, SEAT TAIL (GRAY, YHG FOR CZV)BOX, SEAT TAIL (GRAY, YHG FOR CZV)
-
2045550-24F10-YHF BOX, SEAT TAIL (GRAY, YHF FOR CZY)BOX, SEAT TAIL (GRAY, YHF FOR CZY)
-
2045550-24F10-YC3 BOX, SEAT TAIL (WHITE, YC3) (LIMITED)BOX, SEAT TAIL (WHITE, YC3) (LIMITED)
-
2145213-31300 CUSHIONCUSHION
-
2247190-24F00 WASHERWASHER
-
2346211-24F01-019 HANDLE, PILLION RIDER (BLACK)HANDLE, PILLION RIDER (BLACK)
-
2409103-08373 BOLTBOLT
-
2547190-24F10 WASHER, PILLION RIDER HDLWASHER, PILLION RIDER HDL
-
2646217-24F00 CUSHION, PILLION RIDER HDLCUSHION, PILLION RIDER HDL
-
2746212-24F11 HOOK, HANDLEHOOK, HANDLE
-
2809250-05009 CAPCAP
