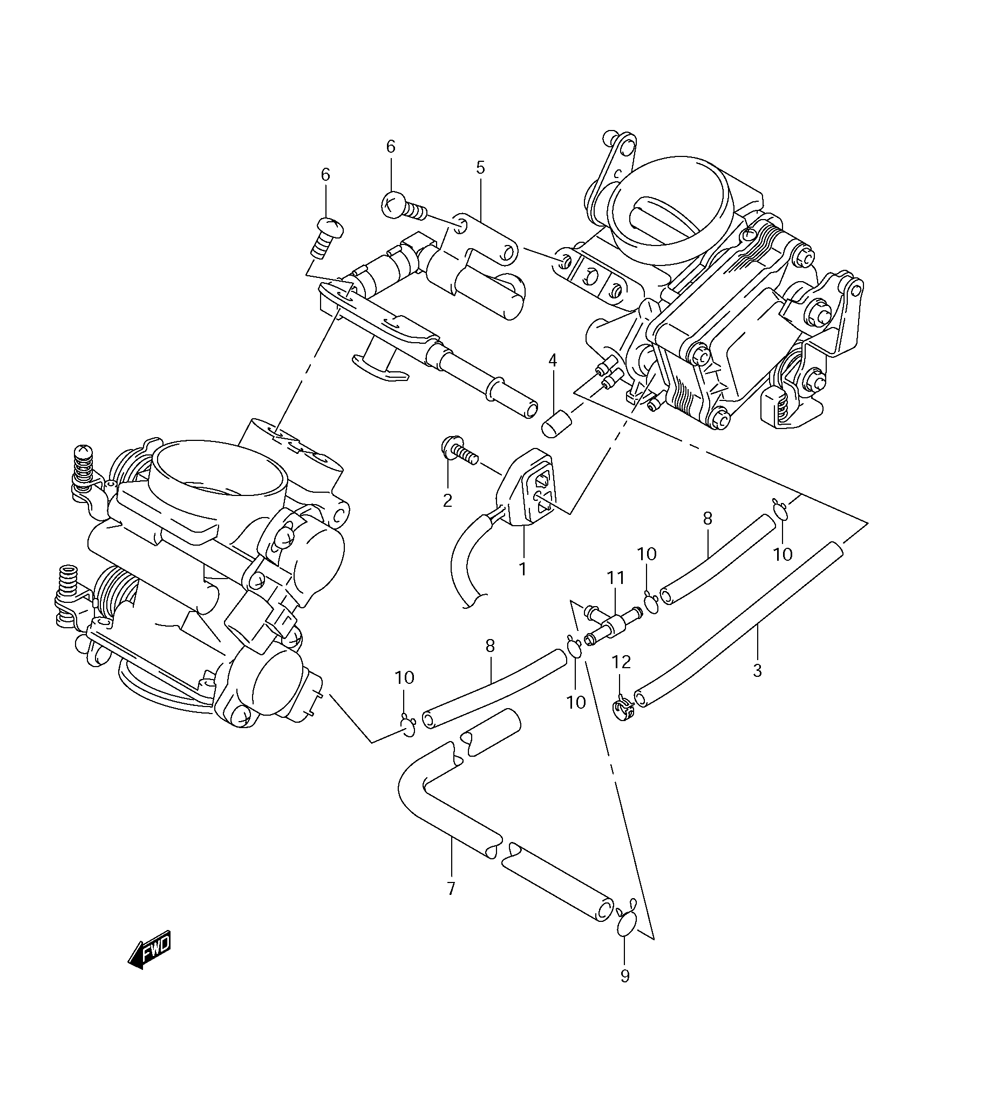

FUEL DELIVERY PIPE для Suzuki DL1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
113477-39F00 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
202112-34163 SCREWSCREW
-
313683-10F60 HOSE (EXCEPT CALF.) LENGTH: 125HOSE (EXCEPT CALF.) LENGTH: 125
-
413274-84000 CAPCAP
-
515730-06G01 DELIVERY PIPE ASSEMBLYDELIVERY PIPE ASSEMBLY
-
613602-06128 SCREWSCREW
-
713683-06G11 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
813681-06G40 HOSE (FOR CALF. ONLY)HOSE (FOR CALF. ONLY)
-
909401-10410 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
1009401-06101 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
-
1113685-04F10 NIPPLE (FOR CALF. ONLY)NIPPLE (FOR CALF. ONLY)
-
1209401-09403 CLIP (FOR CALF. ONLY)CLIP (FOR CALF. ONLY)
