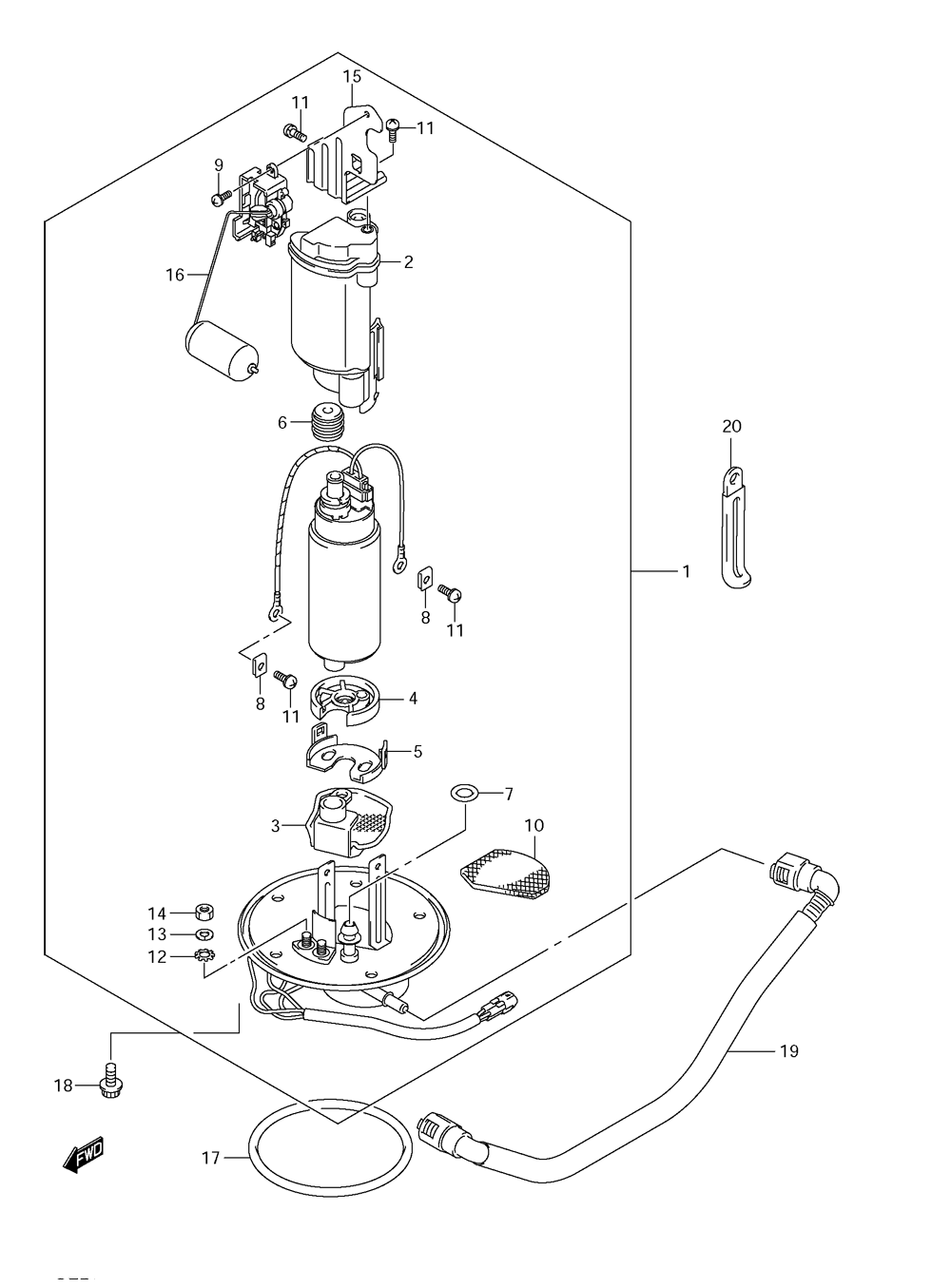

FUEL PUMP для Suzuki DL1000 K7 - 2007 года выпуска
-
№АртикулНазвание
-
115100-06G10 PUMP ASSEMBLY, FUELPUMP ASSEMBLY, FUEL
-
215410-24FB0 ...FILTER ASSEMBLY, FUEL...FILTER ASSEMBLY, FUEL
-
315420-35F01 ...STRAINER, FUEL PUMP...STRAINER, FUEL PUMP
-
415111-35F00 ...CUSHION, FUEL PUMP...CUSHION, FUEL PUMP
-
515112-42F00 ...HOLDER, FUEL PUMP...HOLDER, FUEL PUMP
-
615114-35F00 ...BUSH, FUEL PUMP...BUSH, FUEL PUMP
-
715113-35F00 ...O RING...O RING
-
815115-35F00 ...NUT...NUT
-
915116-06G10 ...SCREW...SCREW
-
1015117-06G10 ...SHEET...SHEET
-
1115116-35F10 ...SCREW...SCREW
-
1215171-35F00 ...WASHER...WASHER
-
1315172-35F00 ...SPRING WASHER...SPRING WASHER
-
1415173-35F00 ...NUT...NUT
-
1515181-06G00 ...BRACKET, FUEL GAUGE...BRACKET, FUEL GAUGE
-
1634810-06G10 ...GAUGE ASSEMBLY...GAUGE ASSEMBLY
-
1715201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1807120-0612B BOLTBOLT
-
1915810-06G00 HOSE, FUELHOSE, FUEL
-
2009404-06429 CLAMPCLAMP
