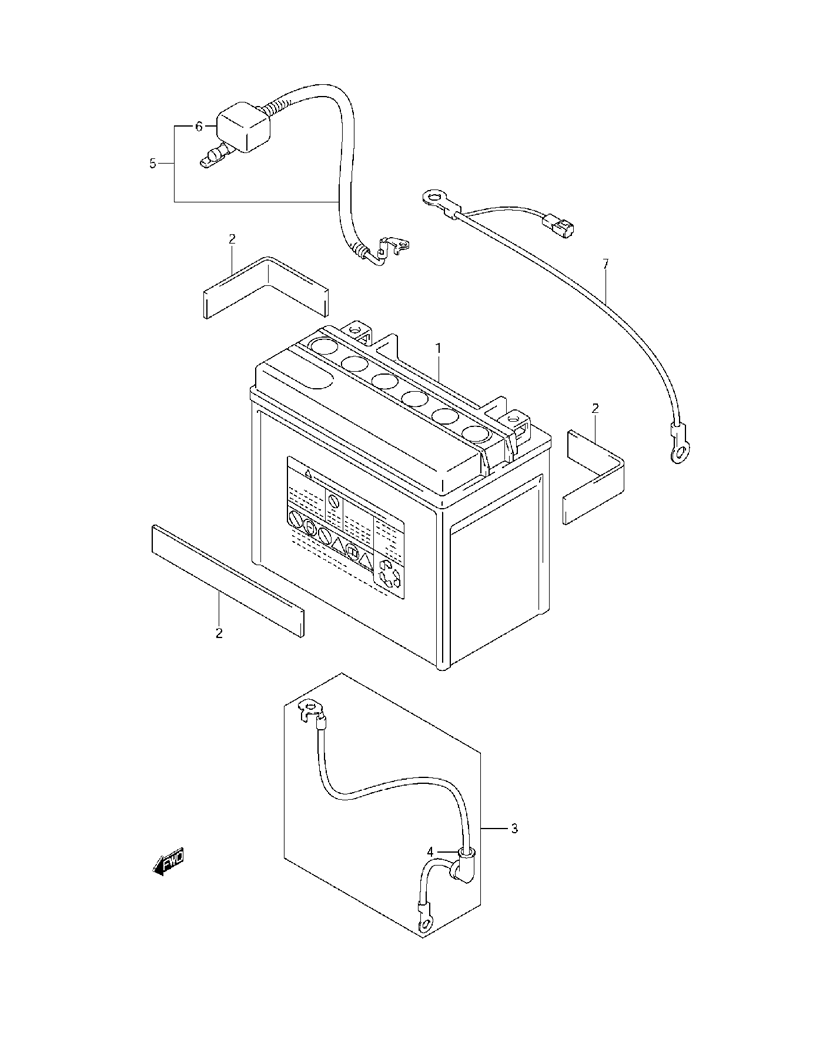

BATTERY для Suzuki VZ800Z K7 - 2007 года выпуска
-
№АртикулНазвание
-
133610-48E20 BATTERY (FTX12-BS,12V,10AH)BATTERY (FTX12-BS,12V,10AH)
-
233651-37000 CUSHION (170X95X3.0) CUT AS REQUIREDCUSHION (170X95X3.0) CUT AS REQUIRED
-
333810-41F00 WIRE, STARTER MOTOR (INCLUDES ITEM(S) 4)WIRE, STARTER MOTOR (INCLUDES ITEM(S) 4)
-
431861-48B10 CAP, STARTER MOTORCAP, STARTER MOTOR
-
533820-48E00 WIRE, BATTERY PLUS (+) (INCLUDES ITEM(S) 6)WIRE, BATTERY PLUS (+) (INCLUDES ITEM(S) 6)
-
633624-16E00 CAP, BATTERY PLUSCAP, BATTERY PLUS
-
733860-41F00 WIRE, BATTERY MINUS (-)WIRE, BATTERY MINUS (-)
