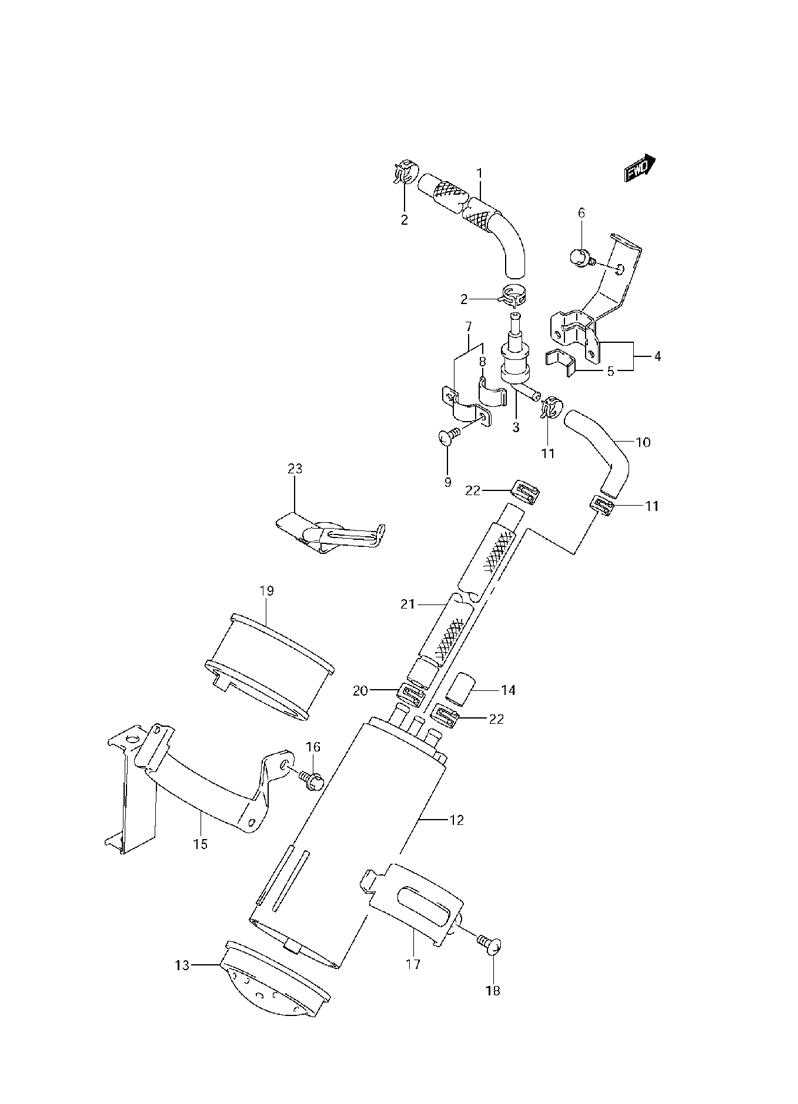

EVAP SYSTEM (CALIF ONLY) для Suzuki VZ800Z K7 - 2007 года выпуска
-
№АртикулНазвание
-
144434-41F20 HOSE, TANK AND VALVE UPPERHOSE, TANK AND VALVE UPPER
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, BREATHERVALVE, BREATHER
-
444890-41F00 BRACKET, BREATHER VALVE (INCLUDES ITEM(S) 5)BRACKET, BREATHER VALVE (INCLUDES ITEM(S) 5)
-
544894-24A00 CUSHIONCUSHION
-
601550-0612B BOLT, BRACKETBOLT, BRACKET
-
744892-24A00 PLATE, BREATHER VALVE (INCLUDES ITEM(S) 8)PLATE, BREATHER VALVE (INCLUDES ITEM(S) 8)
-
844894-24A00 CUSHIONCUSHION
-
902142-0408B SCREW, PLATESCREW, PLATE
-
1044435-41F10 HOSE, VALVE AND CANISTERHOSE, VALVE AND CANISTER
-
1109401-11413 CLIPCLIP
-
1217210-26E00 CANISTERCANISTER
-
1317211-48E00 CAP, CANISTERCAP, CANISTER
-
1409251-07003 CAP, PURGECAP, PURGE
-
1544880-41F10 BRACKET, CANISTERBRACKET, CANISTER
-
1609139-06108 BOLT, BRACKETBOLT, BRACKET
-
1744882-26E00 HOLDER, CANISTERHOLDER, CANISTER
-
1802142-0610B SCREW, HOLDERSCREW, HOLDER
-
1944883-26E00 CUSHION, CANISTERCUSHION, CANISTER
-
2009401-11415 CLIPCLIP
-
2144438-41F10 HOSE, THROTTLE BODYHOSE, THROTTLE BODY
-
2209401-11413 CLIPCLIP
-
2344480-41F00 CLAMP, EVAPO HOSECLAMP, EVAPO HOSE
