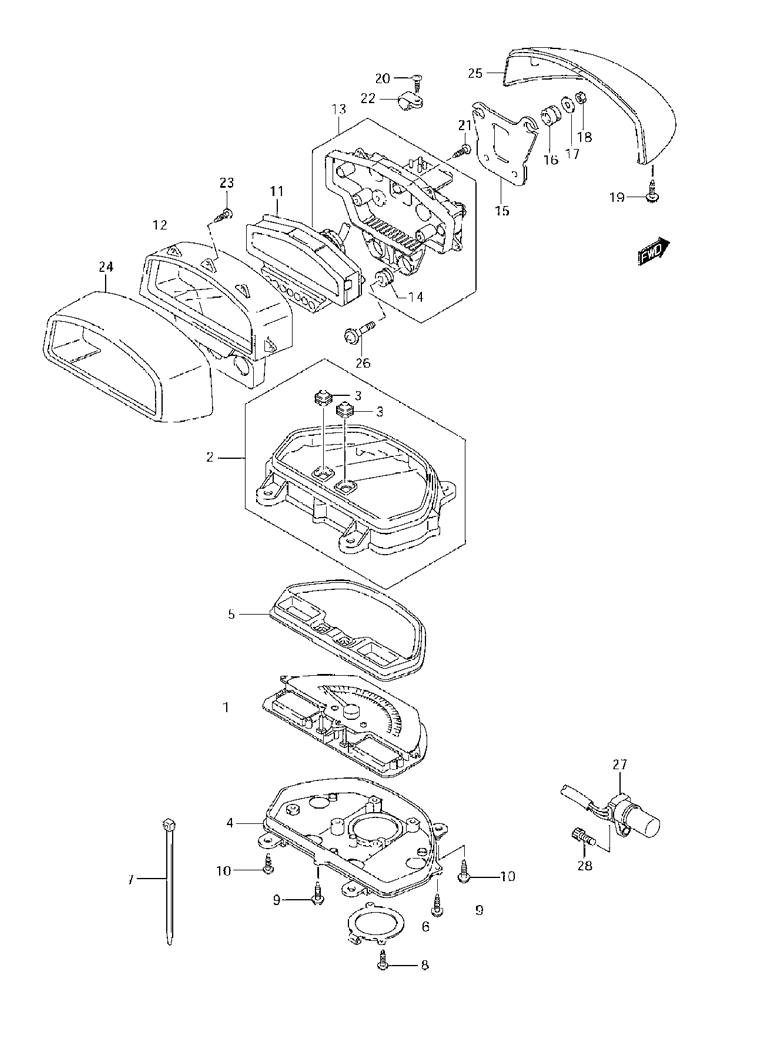

SPEEDOMETER для Suzuki VZR1800Z K7 M109RZ SE - 2007 года выпуска
-
№АртикулНазвание
-
134120-48G30 SPEEDOMETERSPEEDOMETER
-
134120-48G20 SPEEDOMETER (CANADA ONLY)SPEEDOMETER (CANADA ONLY)
-
234150-48G00 UPPER CASE ASSY (INCL. 3)UPPER CASE ASSY (INCL. 3)
-
334124-32F00 SW RUBBERSW RUBBER
-
434111-48G00 LOWER CASE ASSYLOWER CASE ASSY
-
534125-48G00 REFLECTOR ASSYREFLECTOR ASSY
-
634950-48G00 BRACKETBRACKET
-
709407-10404 CLAMP (L:100)CLAMP (L:100)
-
834183-09F00 SCREW (3X12)SCREW (3X12)
-
934149-03G00 SCREW (3X14)SCREW (3X14)
-
1003541-0516A SCREW, SPEEDOMETERSCREW, SPEEDOMETER
-
1134220-48G00 TACHOMETER ASSYTACHOMETER ASSY
-
1234250-48G00 UPPER CASE ASSYUPPER CASE ASSY
-
1334211-48G00 LOWER CASE ASSY (INCL. 14)LOWER CASE ASSY (INCL. 14)
-
1434955-33E00 CUSHIONCUSHION
-
1534296-48G00 BRACKETBRACKET
-
1634955-48G00 CUSHIONCUSHION
-
1709160-05013 WASHER (5.2X16X1)WASHER (5.2X16X1)
-
1808310-00057 NUTNUT
-
1934149-17E10 SCREW (4X14)SCREW (4X14)
-
2003541-1412A SCREWSCREW
-
2134149-03G00 SCREW (3X14)SCREW (3X14)
-
2234198-03A50 CLAMPCLAMP
-
2334183-48G00 SCREW (2.3X10.5)SCREW (2.3X10.5)
-
2434256-48G00 UPPER COVER ASSYUPPER COVER ASSY
-
2534257-48G00 LOWER COVERLOWER COVER
-
2634149-48G00 SCREW, TACHOMETERSCREW, TACHOMETER
-
2734990-48G00 SENSOR, SPEEDSENSOR, SPEED
-
2807130-0616A BOLT, SPEED SENSORBOLT, SPEED SENSOR
