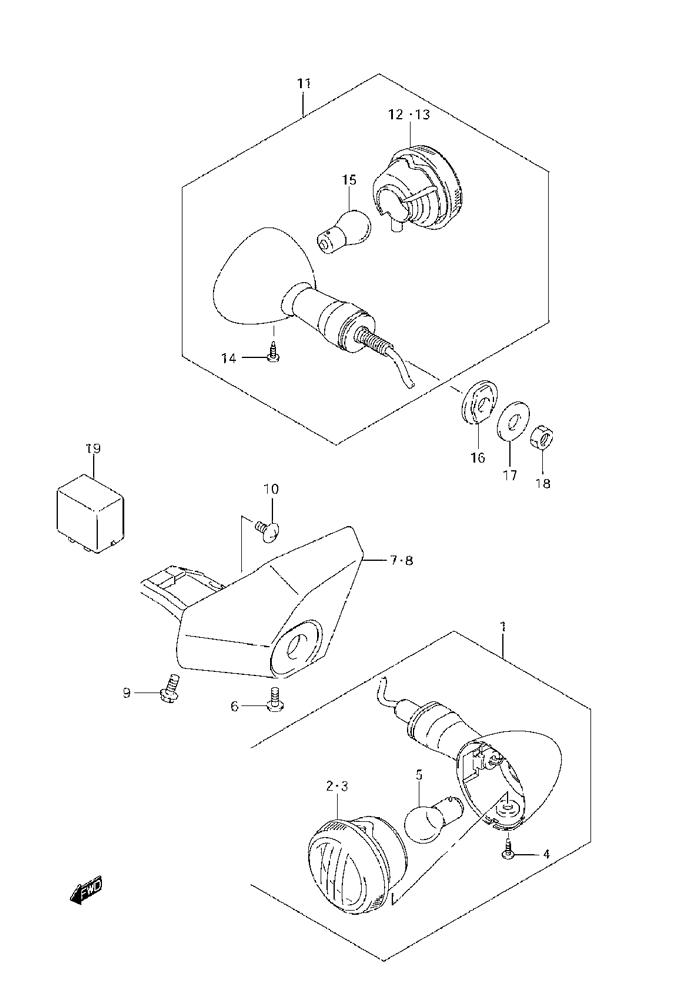

TURN SIGNAL ASSY. - FRONT для Suzuki VZR1800Z K7 M109RZ SE - 2007 года выпуска
-
№АртикулНазвание
-
135601-38AH0 LAMP ASSY, FRONT TURNSIGNAL, RIGHT (INCL. 2-5)LAMP ASSY, FRONT TURNSIGNAL, RIGHT (INCL. 2-5)
-
135602-38AH0 LAMP ASSY, FRONT TURNSIGNAL, LEFT (INCL. 2-5)LAMP ASSY, FRONT TURNSIGNAL, LEFT (INCL. 2-5)
-
235610-48EB0 LENSLENS
-
335630-48EB0 LENSLENS
-
435623-38AA0 SCREW (4X10)SCREW (4X10)
-
509471-12224 BULB (12V23/8W)BULB (12V23/8W)
-
602142-0612A SCREW, FR TURNSIGNAL LAMPSCREW, FR TURNSIGNAL LAMP
-
735671-48G00 STAY, FRONT TURNSIGNAL, RIGHTSTAY, FRONT TURNSIGNAL, RIGHT
-
835681-48G00 STAY, FRONT TURNSIGNAL, LEFTSTAY, FRONT TURNSIGNAL, LEFT
-
901550-0816A SCREW, FR TURNSIGNAL LAMPSCREW, FR TURNSIGNAL LAMP
-
1007120-0612A SCREW, FR TURNSIGNAL LAMPSCREW, FR TURNSIGNAL LAMP
-
1135603-48ED0 LAMP ASSY, REAR TURNSIGNAL, RIGHT (INCL. 12-15)LAMP ASSY, REAR TURNSIGNAL, RIGHT (INCL. 12-15)
-
1135604-38AF0 LAMP ASSY, REAR TURNSIGNAL, LEFT (INCL. 12-15)LAMP ASSY, REAR TURNSIGNAL, LEFT (INCL. 12-15)
-
1235630-48ED0 LENSLENS
-
1335610-38AF0 LENSLENS
-
1435623-38AA0 SCREW (4X10)SCREW (4X10)
-
1509471-12186 BULB (12V21W)BULB (12V21W)
-
1635695-17C00 SPACER, REAR TURNSIGNAL LAMPSPACER, REAR TURNSIGNAL LAMP
-
1709160-10501 WASHER, REAR TURNSIGNALWASHER, REAR TURNSIGNAL
-
1808310-0010A NUT, REAR TURNSIGNAL LAMPNUT, REAR TURNSIGNAL LAMP
-
1938610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
