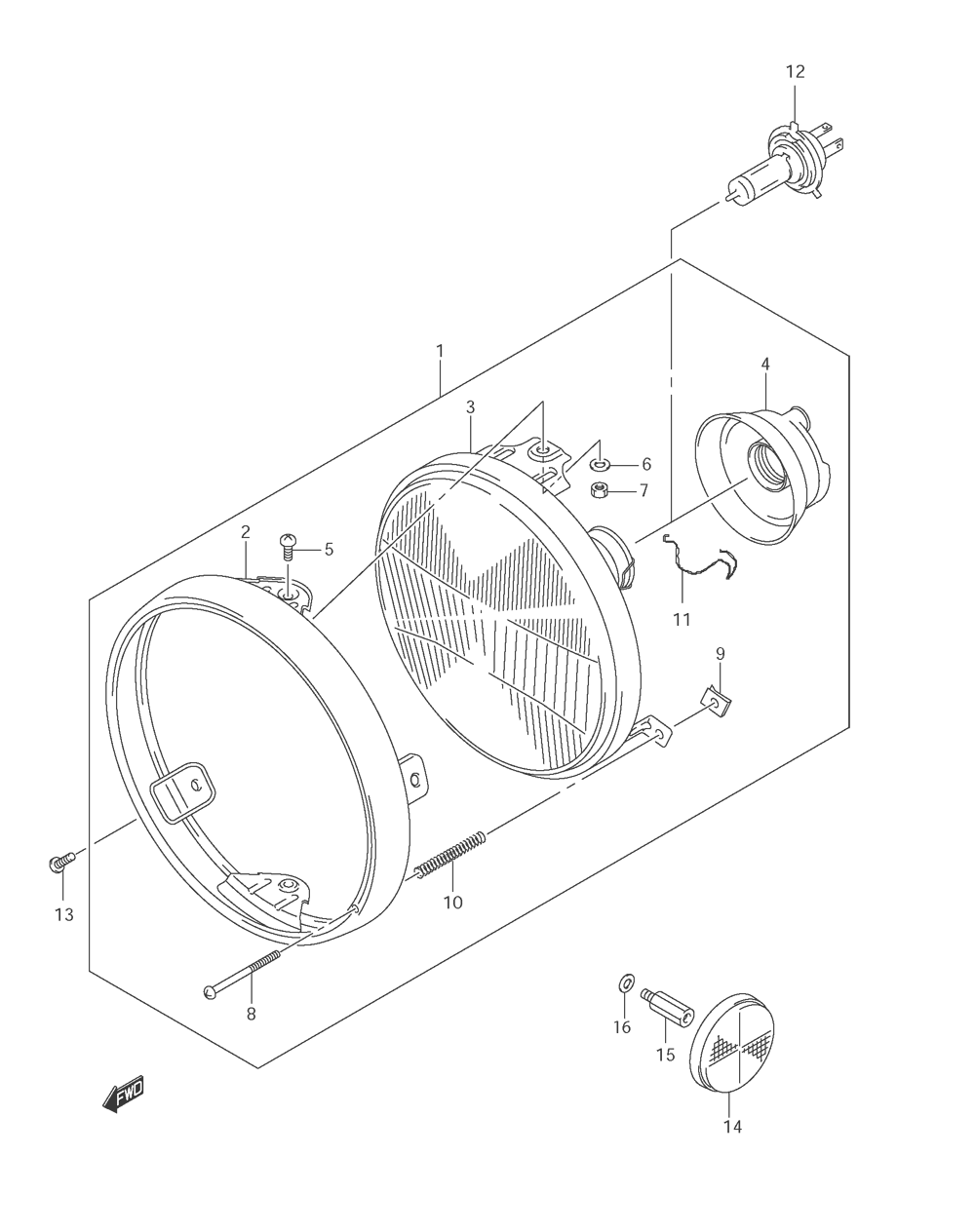

HEADLAMP (CANADA ONLY) для Suzuki GS500F K8 - 2008 года выпуска
-
№АртикулНазвание
-
135100-01D80-999 HEADLAMP ASSEMBLYHEADLAMP ASSEMBLY
-
235111-0BE00 ...RIM...RIM
-
335121-0BE00 ...LAMP UNIT...LAMP UNIT
-
435173-0BE00 ...COVER, SOCKET...COVER, SOCKET
-
535181-0BE00 ...SCREW...SCREW
-
6D8321-0104B ...LOCK WASHER...LOCK WASHER
-
7D8310-0004B ...NUT...NUT
-
835151-0BE00 ...SCREW, ADJUSTING...SCREW, ADJUSTING
-
935152-0BE00 ...NUT...NUT
-
1035154-0BE00 ...SPRING...SPRING
-
1135174-0BE00 ...SPRING...SPRING
-
1209471-12060 BULB (12V60/55W, H4)BULB (12V60/55W, H4)
-
13D2116-0512B SCREWSCREW
-
1435950-14A10 REFLEX REFLECTOR, FR SIDEREFLEX REFLECTOR, FR SIDE
-
1509119-05023 BOLTBOLT
-
16D8322-0105B WASHERWASHER
