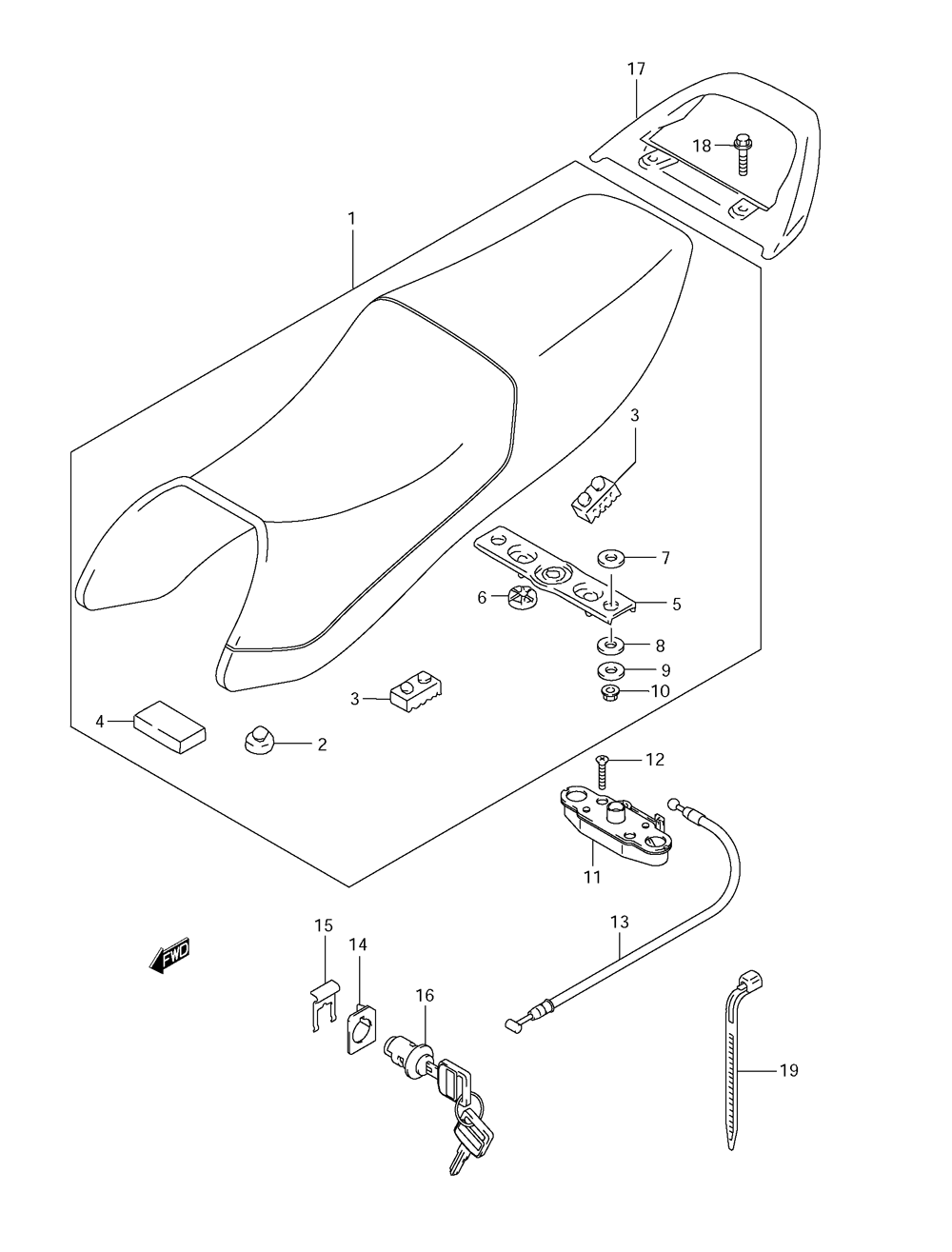

SEAT для Suzuki GS500F K8 - 2008 года выпуска
-
№АртикулНазвание
-
145100C01D20JFH4 SEAT SET (BLACK)SEAT SET (BLACK)
-
245148-12FA0 ...CUSHION, FRONT LOWER...CUSHION, FRONT LOWER
-
345147-12FA0 ...CUSHION, CENTER & REAR...CUSHION, CENTER & REAR
-
494982C29400J000 ...CUSHION, BATTERY STOPPER...CUSHION, BATTERY STOPPER
-
545215C22A00J000 ...STRIKER, SEAT LOCK...STRIKER, SEAT LOCK
-
645213C13601J000 ...CUSHION, BOSS...CUSHION, BOSS
-
745126C41B00J000 ...CUSHION, STRIKER UPPER...CUSHION, STRIKER UPPER
-
845127C41B00J000 ...CUSHION, STRIKER LOWER...CUSHION, STRIKER LOWER
-
909689-06202 ...WASHER...WASHER
-
10D8316-1006B ...NUT...NUT
-
1145220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
12D2116-0630B SCREWSCREW
-
1345280C38400J000 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1445288-14F00 GUIDE, SEAT LOCK CABLEGUIDE, SEAT LOCK CABLE
-
1545289-11F00 PLATE, SEAT LOCK ASSEMBLYPLATE, SEAT LOCK ASSEMBLY
-
1695700-14810 LOCK SET, SEATLOCK SET, SEAT
-
1746211C01D00JETN HANDLE, PILLION RIDER (BLACK)HANDLE, PILLION RIDER (BLACK)
-
1801550-0825B BOLTBOLT
-
1909407-18402 CLAMP, SEAT LOCK CABLECLAMP, SEAT LOCK CABLE
