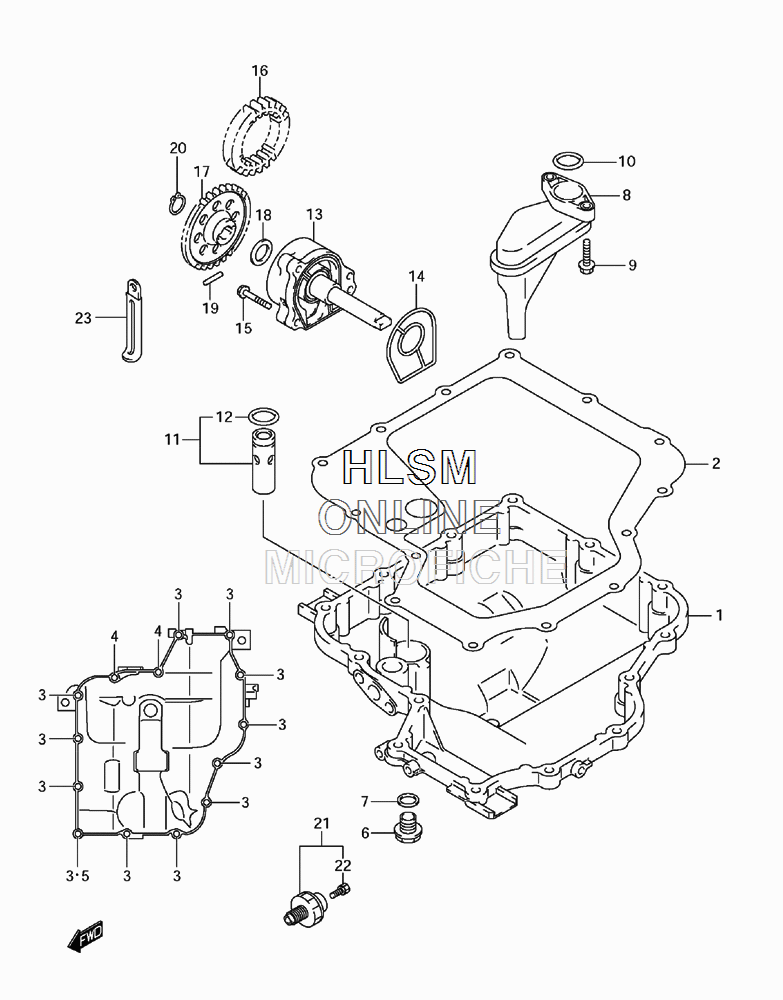

OIL PAN W/ OIL PUMP ASSY. для Suzuki GSX-1300BK K8 B-KING W/ ABS - 2008 года выпуска
-
№АртикулНазвание
-
111511-24F10 PAN, OILPAN, OIL
-
211489-24F01 GASKET, OIL PANGASKET, OIL PAN
-
301547-0630A BOLTBOLT
-
401547-0640A BOLTBOLT
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
609247-14036 PLUG, OIL DRAINPLUG, OIL DRAIN
-
709168-14002 GASKETGASKET
-
816520-24F00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
901550-0620A BOLTBOLT
-
1009280-19008 O RING (D:2.62,ID:20.3)O RING (D:2.62,ID:20.3)
-
1116440-24F00 VALVE ASSY, OIL RELIEF (INCL. 12)VALVE ASSY, OIL RELIEF (INCL. 12)
-
1209280-13004 O RINGO RING
-
1316400-24F01 PUMP ASSY, ENGINE OILPUMP ASSY, ENGINE OIL
-
1416491-24F00 O RINGO RING
-
1501547-0630A BOLTBOLT
-
1616321-33E10 GEAR, OIL PUMP DRIVE (NT:34)GEAR, OIL PUMP DRIVE (NT:34)
-
1716331-33E00 GEAR, OIL PUMP DRIVEN (NT:37)GEAR, OIL PUMP DRIVEN (NT:37)
-
1809181-12158 WASHERWASHER
-
1909261-05006 PINPIN
-
2008331-31126 CIRCLIPCIRCLIP
-
2137820-33D10 SWITCH ASSY, OIL PRESSURE (INCL. 22)SWITCH ASSY, OIL PRESSURE (INCL. 22)
-
2237822-33D00 BOLTBOLT
-
2309404-06429 CLAMPCLAMP
