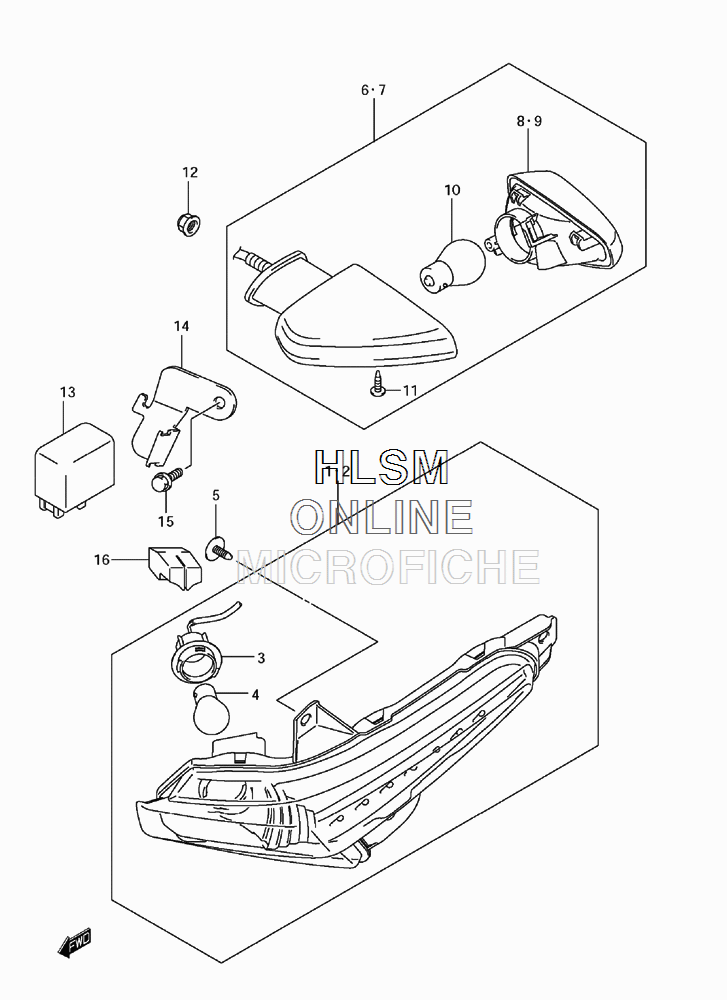

TURN SIGNAL ASSY. для Suzuki GSX-1300BK K8 B-KING W/ ABS - 2008 года выпуска
-
№АртикулНазвание
-
135601-23H00 LAMP ASSY, FRONT TURNSIGNAL, R (INCL. 3-4)LAMP ASSY, FRONT TURNSIGNAL, R (INCL. 3-4)
-
235602-23H00 LAMP ASSY, FRONT TURNSIGNAL, L (INCL. 3-4)LAMP ASSY, FRONT TURNSIGNAL, L (INCL. 3-4)
-
335618-23H00 SOCKET AND CORDSOCKET AND CORD
-
409471-12186 BULB (12V21W)BULB (12V21W)
-
509136-05057 SCREW, FR TURNSIGNAL (5X20)SCREW, FR TURNSIGNAL (5X20)
-
635603-23H00 LAMP ASSY, REAR TURNSIGNAL, R (INCL. 8-11)LAMP ASSY, REAR TURNSIGNAL, R (INCL. 8-11)
-
735604-23H00 LAMP ASSY, REAR TURNSIGNAL, L (INCL. 8-11)LAMP ASSY, REAR TURNSIGNAL, L (INCL. 8-11)
-
835650-23H00 LAMP UNIT, RLAMP UNIT, R
-
935670-23H00 LAMP UNIT, LLAMP UNIT, L
-
1009471-12186 BULB (12V21W)BULB (12V21W)
-
1103241-0412A SCREWSCREW
-
1208316-1010B NUT, REAR TURNSIGNALNUT, REAR TURNSIGNAL
-
1338610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
-
1438615-23H00 BRACKET, TURNSIGNAL RELAYBRACKET, TURNSIGNAL RELAY
-
1501547-0610A BOLT, TURNSIGNAL RLY BRKTBOLT, TURNSIGNAL RLY BRKT
-
1644168-23H00 GUIDE, FUEL TANKGUIDE, FUEL TANK
