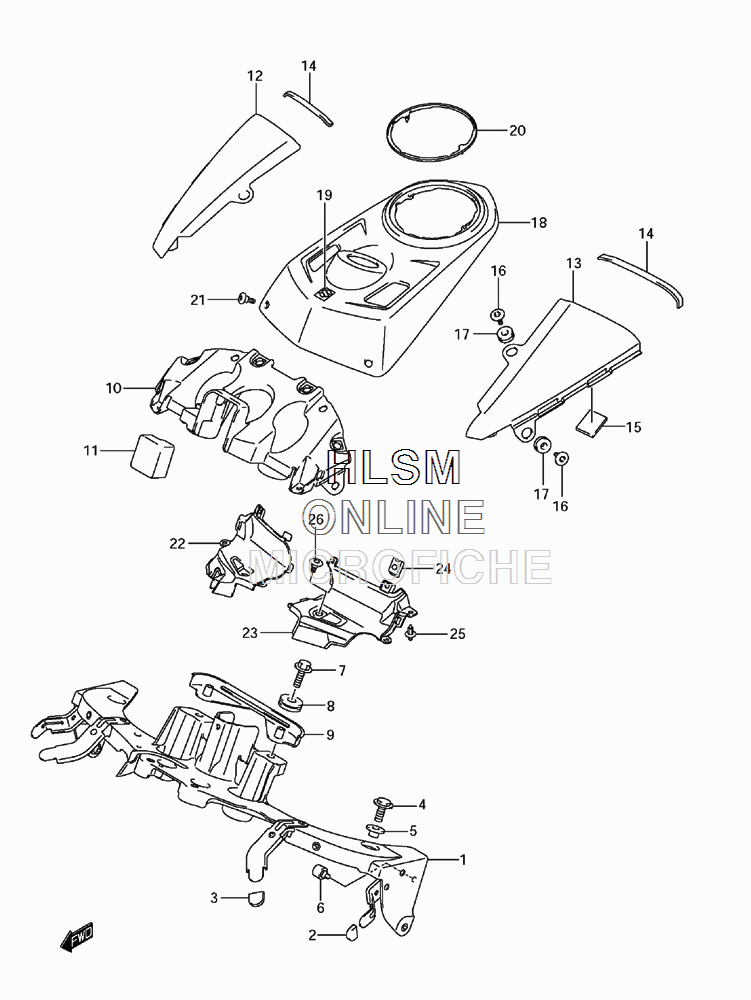

FUEL TANK - FRONT BRACKET для Suzuki GSX-1300BK K8 B-KING - 2008 года выпуска
-
№АртикулНазвание
-
144160-23H00 BRACKET, FUEL TANK COVERBRACKET, FUEL TANK COVER
-
209329-18001 CUSHION, SIDECUSHION, SIDE
-
344169-23H00 CUSHION, CENTERCUSHION, CENTER
-
401550-0620B BOLTBOLT
-
509169-06081 WASHERWASHER
-
644163-23H00 CUSHION, SIDECUSHION, SIDE
-
709116-06195 BOLT, FRONTBOLT, FRONT
-
844511-10G10 CUSHIONCUSHION
-
944510-23H00 WASHERWASHER
-
1044520-23H00 BRACKET, FUEL TANK FRONTBRACKET, FUEL TANK FRONT
-
1144543-23H00 CUSHION, FRONTCUSHION, FRONT
-
1244251-23H00-019 COVER, TANK UPPER RIGHT HAND (BLACK) (FOR CRU)COVER, TANK UPPER RIGHT HAND (BLACK) (FOR CRU)
-
1244251-23H00-YHF COVER, TANK UPPER RIGHT HAND (GRAY) (FOR ETT)COVER, TANK UPPER RIGHT HAND (GRAY) (FOR ETT)
-
1244251-23H00-YPA COVER, TANK UPPER RIGHT HAND (WHITE) (FOR YPA)COVER, TANK UPPER RIGHT HAND (WHITE) (FOR YPA)
-
1344261-23H00-019 COVER, TANK UPPER LEFT HAND (BLACK) (FOR CRU)COVER, TANK UPPER LEFT HAND (BLACK) (FOR CRU)
-
1344261-23H00-YHF COVER, TANK UPPER LEFT HAND (GRAY) (FOR ETT)COVER, TANK UPPER LEFT HAND (GRAY) (FOR ETT)
-
1344261-23H00-YPA COVER, TANK UPPER LEFT HAND (WHITE) (FOR YPA)COVER, TANK UPPER LEFT HAND (WHITE) (FOR YPA)
-
1444278-23H00 CUSHIONCUSHION
-
1544572-13G00 FASTENERFASTENER
-
1609139-05078 SCREWSCREW
-
1709320-08021 CUSHIONCUSHION
-
1844191-23H00 COVER, TANK UPPERCOVER, TANK UPPER
-
1968281-35F00 EMBLEMEMBLEM
-
2044295-23H00 RUBBER, UPPER COVERRUBBER, UPPER COVER
-
2109139-05064 SCREWSCREW
-
2244291-23H00 COVER, UPPER RIGHT HANDCOVER, UPPER RIGHT HAND
-
2344292-23H00 COVER, UPPER LEFT HANDCOVER, UPPER LEFT HAND
-
2409148-05052 NUTNUT
-
2509409-06329 CLIPCLIP
-
2609139-05074 SCREWSCREW
