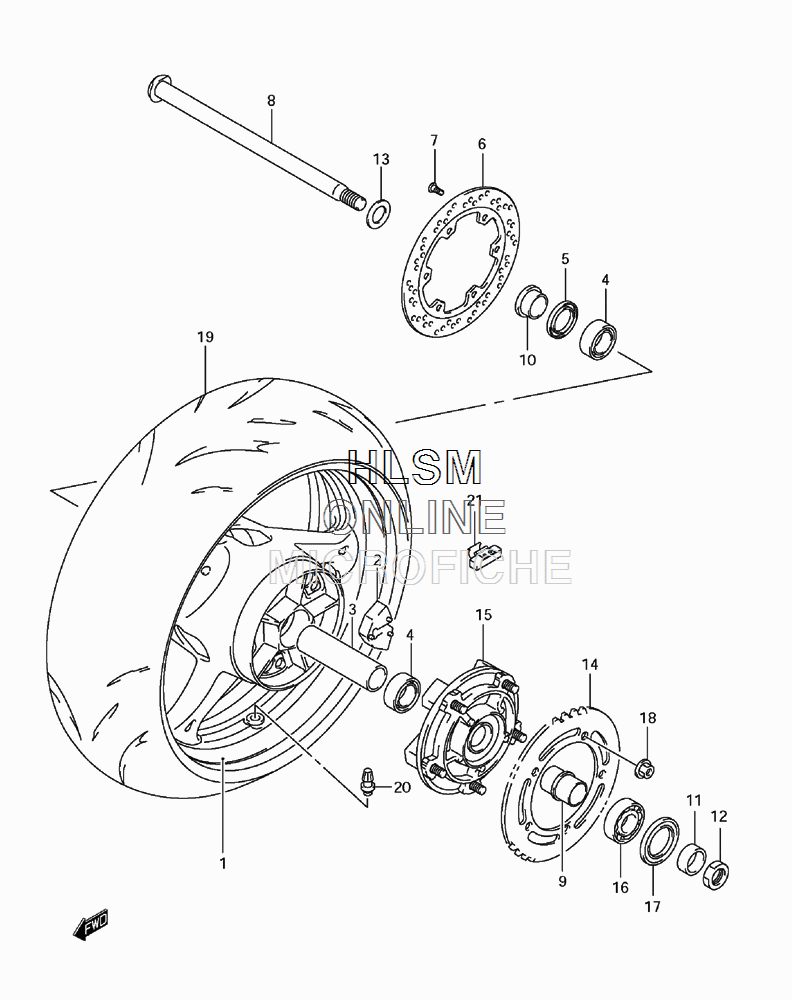

WHEEL - REAR для Suzuki GSX-1300BK K8 B-KING - 2008 года выпуска
-
№АртикулНазвание
-
164111-15H00-019 WHEEL, REAR (17M/CXMT6.0) (BLACK)WHEEL, REAR (17M/CXMT6.0) (BLACK)
-
264651-35F30 ABSORBER, REAR HUB SHOCKABSORBER, REAR HUB SHOCK
-
364731-40F10 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
409262-28043 BEARING, REAR WHEEL HUBBEARING, REAR WHEEL HUB
-
509284-37001 SEAL, REAR WHEEL BEARINGSEAL, REAR WHEEL BEARING
-
669211-15H00 DISC, REAR BRAKEDISC, REAR BRAKE
-
709106-08160 BOLT, REAR BRAKE DISCBOLT, REAR BRAKE DISC
-
864711-23H00 AXLE, REARAXLE, REAR
-
964733-35F00 RETAINER, REAR SPROCKET DRUMRETAINER, REAR SPROCKET DRUM
-
1064741-35F00 SPACER, REAR AXLESPACER, REAR AXLE
-
1164751-23H00 SPACER, REAR AXLE, LSPACER, REAR AXLE, L
-
1209159-25003 NUT, REAR AXLENUT, REAR AXLE
-
1309160-25070 WASHER, RR AXLE NUTWASHER, RR AXLE NUT
-
1464511-40F50 SPROCKET, REAR (43T-530)SPROCKET, REAR (43T-530)
-
1564610-06G10 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1609262-32007 BEARING, RR SPROCKET DRUMBEARING, RR SPROCKET DRUM
-
1709285-39001 SEAL, REAR SPROCKET DRUMSEAL, REAR SPROCKET DRUM
-
1808319-3110A NUT, REAR SPROCKETNUT, REAR SPROCKET
-
1965110-23H00 TIRE, REARTIRE, REAR
-
2043130-24A00 VALVE ASSY, WHEEL RIMVALVE ASSY, WHEEL RIM
-
2155411-39G00 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2155412-39G00 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2155413-39G00 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
