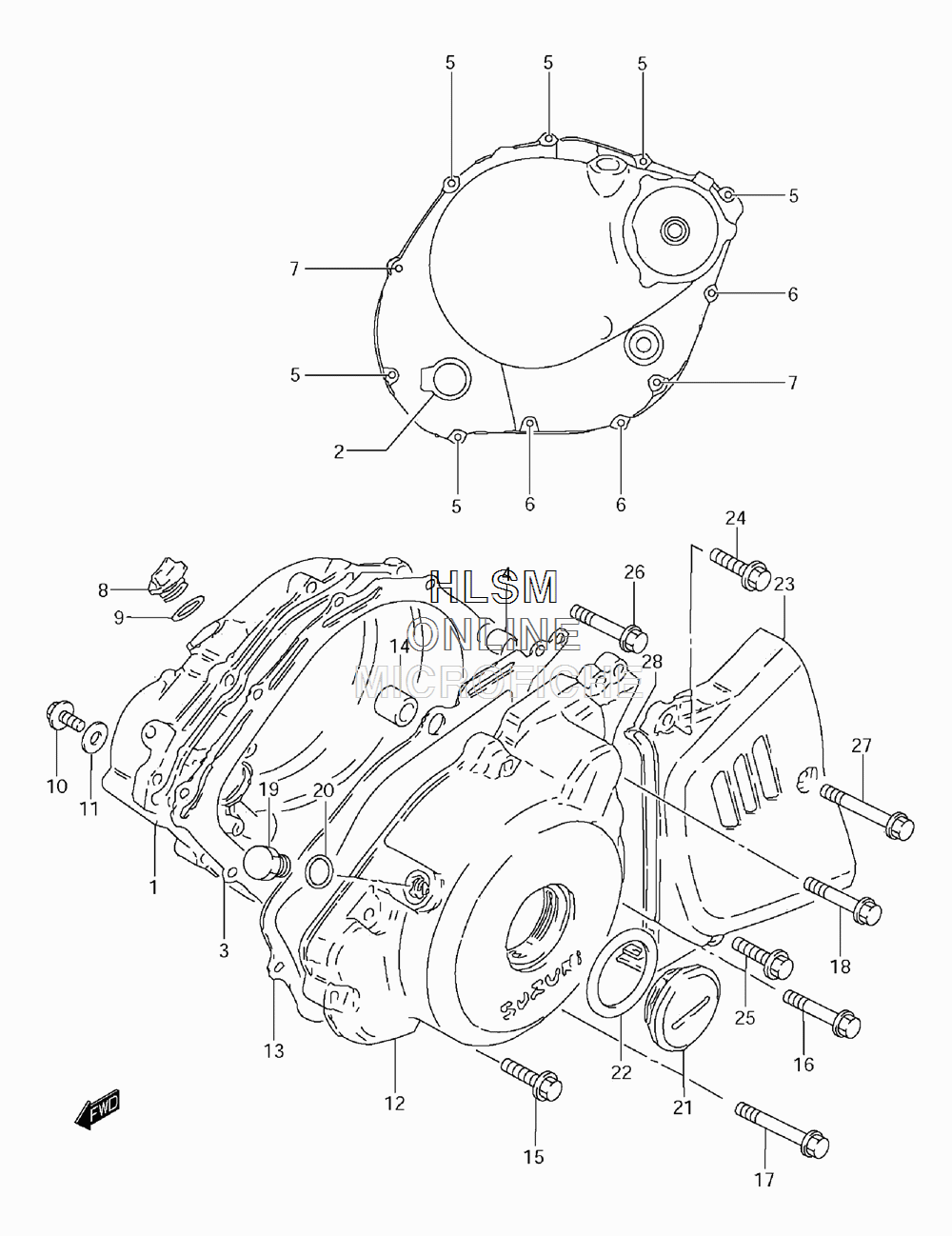

CRANKCASE COVER для Suzuki GZ 250 K8 - 2008 года выпуска
-
№АртикулНазвание
-
111340-38302 COVER, CLUTCHCOVER, CLUTCH
-
211971-45010 LENS, OIL LEVEL CHECKLENS, OIL LEVEL CHECK
-
311482-38312 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-13189 PINPIN
-
509103-06212 BOLT (6X25)BOLT (6X25)
-
609103-06214 BOLT (6X35)BOLT (6X35)
-
709103-06224 BOLT (6X45)BOLT (6X45)
-
809259-20007 PLUG (20X10)PLUG (20X10)
-
909280-17003 O RING (D:3.1, ID:16.8)O RING (D:3.1, ID:16.8)
-
1009247-14012 PLUG, OIL CHECKPLUG, OIL CHECK
-
1109168-14002 GASKET (13.8X18.8X0.4)GASKET (13.8X18.8X0.4)
-
1211351-38300 COVER, MAGNETOCOVER, MAGNETO
-
1311483-37D00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1404211-13189 PINPIN
-
1509103-06212 BOLT (6X25)BOLT (6X25)
-
1609103-06214 BOLT (6X35)BOLT (6X35)
-
1709103-06238 BOLT (6X50)BOLT (6X50)
-
1809103-06261 BOLT (6X60)BOLT (6X60)
-
1909247-12104 PLUG, T.D.C.PLUG, T.D.C.
-
2009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2109259-36011 PLUGPLUG
-
2209280-33004 O RING (D:3.1, ID:32.7)O RING (D:3.1, ID:32.7)
-
2311361-38300 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2409103-05019 BOLT (5X20)BOLT (5X20)
-
2501547-05257 BOLTBOLT
-
2609103-05015 BOLT (5X30)BOLT (5X30)
-
2709103-05021 BOLT (5X45)BOLT (5X45)
-
2811362-38300 DAMPER, ENGINE SPROCKET COVERDAMPER, ENGINE SPROCKET COVER
